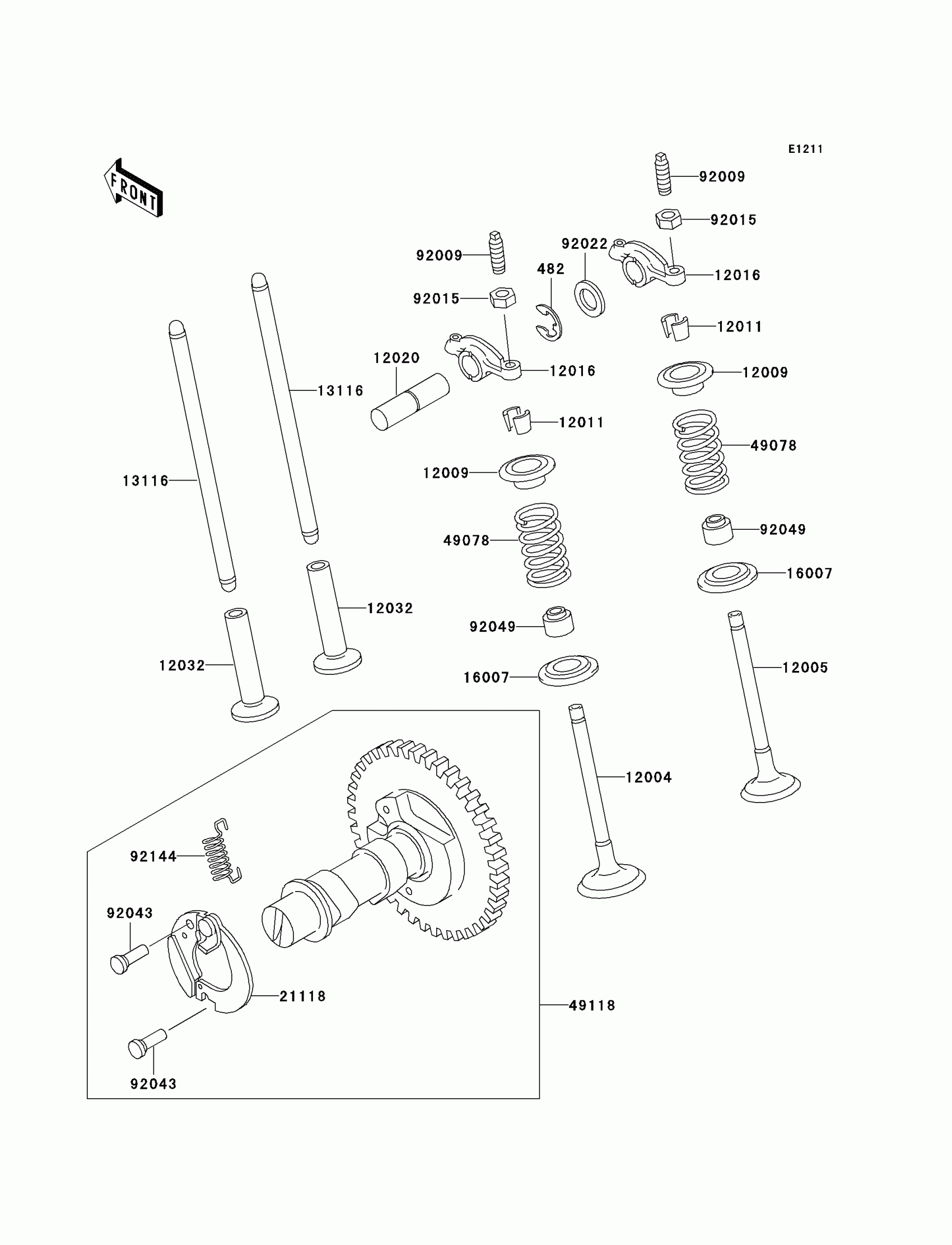

Kawasaki Mule 520 Valve(s)/Camshaft(s) Diagram

Description

Price

482

CIRCLIP-TYPE-E,10MM

482J0100

$0.65

12004

VALVE-INTAKE

12004-2084

$13.75

12005

VALVE-EXHAUST

12005-2077

$26.40

12009

RETAINER-VALVE SPRING

12009-2060

$3.20

12011

COLLET

12011-2052

$1.70

12016

ARM-ROCKER

12016-2058

$21.19

12020

SHAFT-ROCKER

12020-2060

$3.98

12032

TAPPET

12032-2060

$11.10

13116

ROD-PUSH

13116-2054

$10.93

16007

SEAT-SPRING

16007-2052

$0.65

21118

DECOMPRESSOR

21118-2089

$7.46

49078

SPRING-ENGINE VALVE

49078-2060

$3.17

49118

CAMSHAFT-COMP

49118-2081

$142.03

92009

SCREW,VALVE ADJUST

92009-1109

$1.43

92015

NUT,VALVE ADJUST LOCK

92015-1137

$0.81

92022

WASHER,12.1X19X1.6

92022-2397

$0.63

92043

PIN,5X17.6

92043-2113

$1.47

92049

SEAL-OIL,VSB-7X12X9.7

92049-2100

$3.44

92144

SPRING

92144-2323

$3.02
