2007 Kawasaki Mule 520 Crankshaft/piston Diagram

← All diagrams

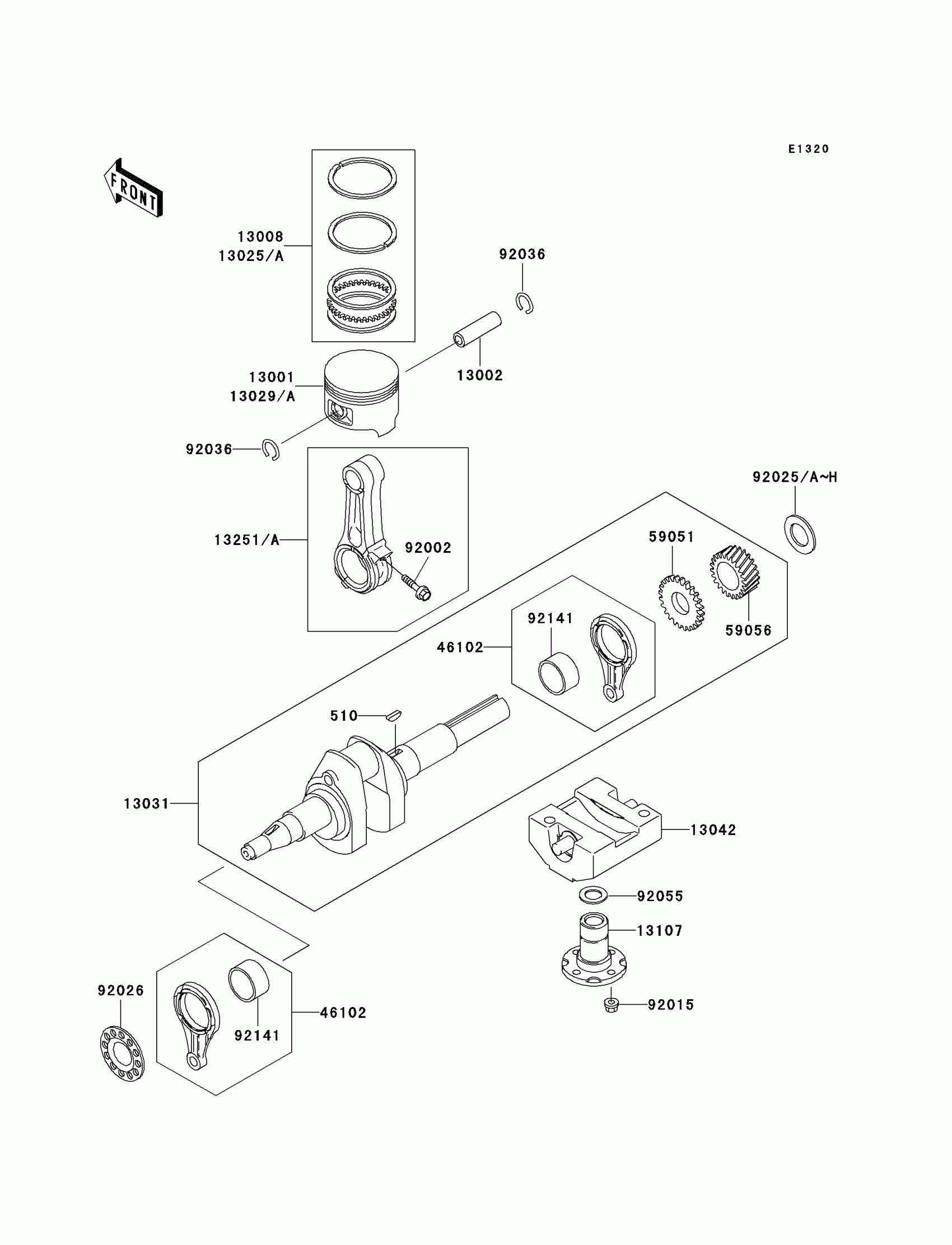

Find the part on the Crankshaft/piston diagram for your 2007 Kawasaki Mule 520, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 520 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

510

WOODRUFF KEY

510A5100

1
Out of stock

13001

PISTON-ENGINE,STD

13001-2125

1
Out of stock

13002

PIN-PISTON

13002-2069

1
Out of stock

13008

RING-SET-PISTON,STD

13008-6007

1
Out of stock

13025

RING-SET-PISTON L,0.25

13025-2073

—
Out of stock

13025A

RING-SET-PISTON L,0.50

13025-2074

—
Out of stock

13029

PISTON-ENGINE L,0.25

13029-2100

—
Out of stock

13029A

PISTON-ENGINE L,0.50

13029-2101

—
Out of stock

13031

CRANKSHAFT-COMP

13031-2060

1
Out of stock

13042

WEIGHT

13042-6009

1
Out of stock

13107

SHAFT

13107-2088

1
Out of stock

13251

ROD-ASSY-CONNECTING,U/S=0.50

13251-6034

—
Out of stock

13251A

ROD-ASSY-CONNECTING

13251-6056

1
Out of stock

46102

ROD

46102-6004

1
Out of stock

59051

GEAR-SPUR

59051-2097

1
Out of stock

59056

GEAR-HELICAL

59056-2993

1
Out of stock

92002

BOLT

92002-2053

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92025

SHIM,T=1.13

92025-2168

—
Out of stock

92025A

SHIM,T=1.18

92025-2169

—
Out of stock

92025B

SHIM,T=1.23

92025-2170

—
Out of stock

92025C

SHIM,T=1.28

92025-2171

—
Out of stock

92025D

SHIM,T=1.33

92025-2172

—
Out of stock

92025E

SHIM,T=1.38

92025-2173

—
Out of stock

92025F

SHIM,T=1.43

92025-2174

—
Out of stock

92025G

SHIM,T=1.48

92025-2175

—
Out of stock

92025H

SHIM,T=1.53

92025-2207

—
Out of stock

92026

SPACER

92026-2052

1
Out of stock

92036

RING-SNAP,PISTON PIN

92036-008

1
Out of stock

92055

RING-O

92055-2072

1
Out of stock

92141

BEARING-PLANE

92141-2090

1
Out of stock
