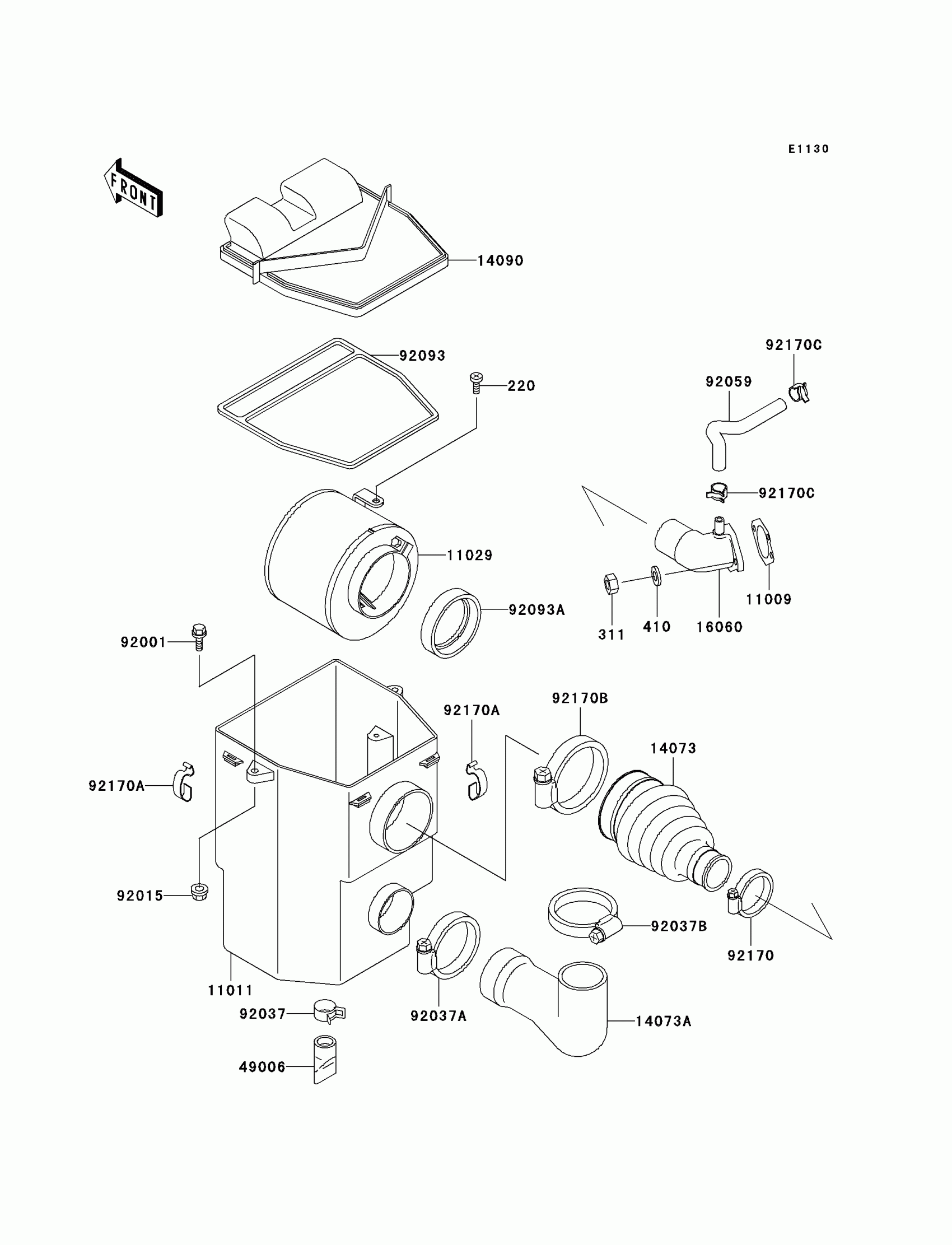

Kawasaki Mule 520 Air Cleaner Diagram

#

Description
Price

220

SCREW-PAN-CROS,6X14

220B0614

$1.14

311

NUT 6MM

311B0600

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

11009

GASKET

11009-2925

$1.32

11011

CASE-AIR FILTER

11011-1367

$90.35

11029

ELEMENT-ASSY-AIR FILTER

11029-1004

$36.72

14073

DUCT,AIR FILTER

14073-1453

$51.97

14073A

DUCT,AIR INTAKE

14073-1491

$54.70

14090

COVER,AIR FILTER

14090-1106

$26.44

16060

PIPE-INTAKE

16060-2151

Unavailable

49006

BOOT

49006-1199

Unavailable

92001

BOLT,6X25,W/WASHER

92001-1140

$4.42

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92037

CLAMP,HOSE CLIP

92037-1460

$8.23

92037A

CLAMP

92037-3009

$3.25

92037B

CLAMP

92037-506

$4.58

92059

TUBE

92059-2280

$5.09

92093

SEAL,AIR FILTER

92093-1241

$9.85

92093A

SEAL,DUST

92093-1322

$7.48

92170

CLAMP

92170-1036

$8.51

92170A

CLAMP,AIR FILTER

92170-1211

$5.61

92170B

CLAMP

92170-1679

$5.95

92170C

CLAMP

92170-2082

$0.71
