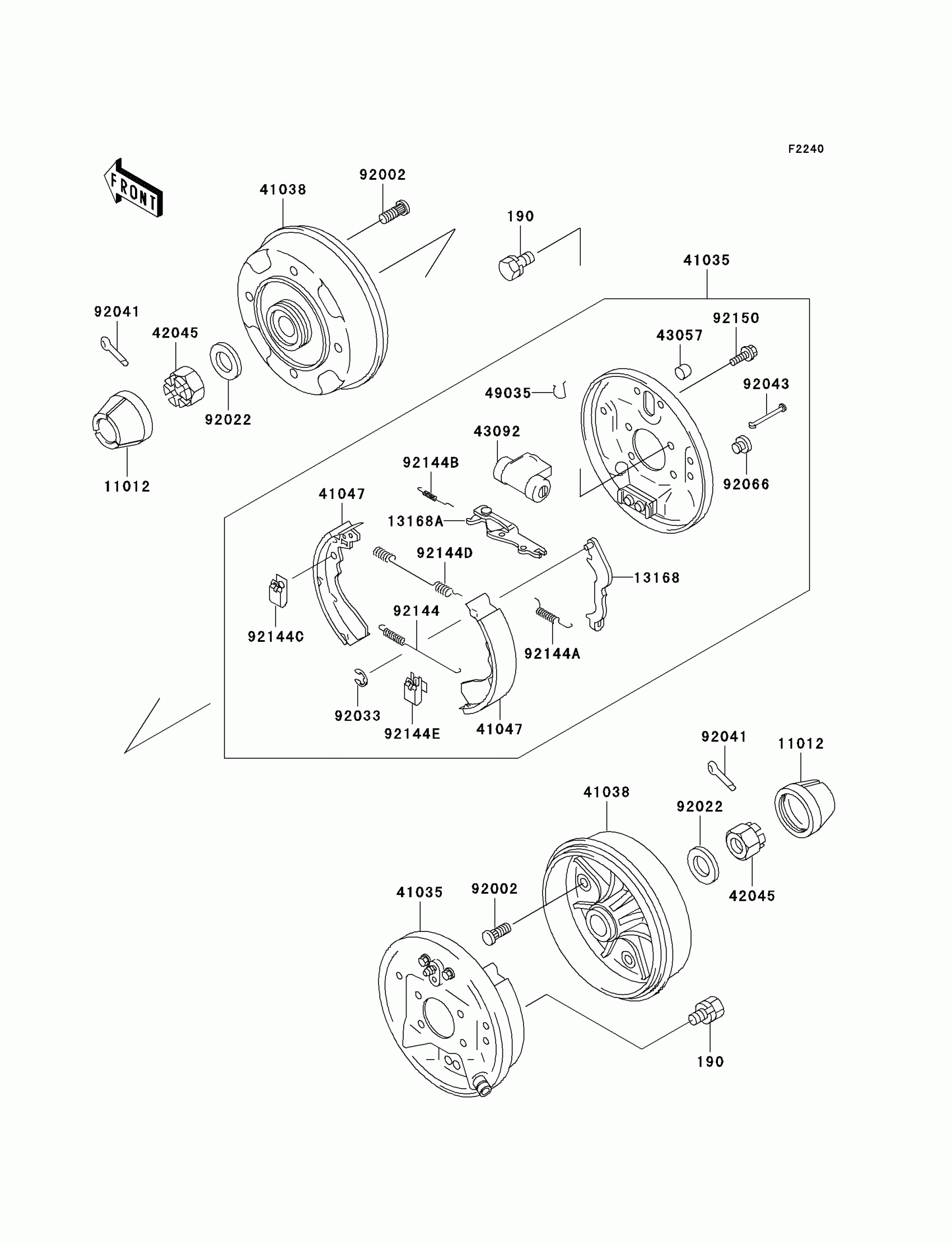

Kawasaki Mule 520 Rear Hubs/Brakes Diagram

#

Description
Price

190

BOLT-UPSET-WS,10X16

190H1016

Unavailable

11012

CAP,WHEEL

11012-1969

$4.27

13168

LEVER

13168-1481

Unavailable

13168A

LEVER

13168-1482

Unavailable

41035

PANEL-ASSY-BRAKE,RR

41035-1283

Unavailable

41038

DRUM,REAR BRAKE

41038-1239

$322.56

41047

SHOE-ASSY-BRAKE,RR

41047-1052

$20.44

42045

NUT,CASTLE,18MM

42045-018

$7.01

43057

CAP-BREATHER

43057-1054

$4.44

43092

CYLINDER

43092-1058

$127.03

49035

PIN-SPRING

49035-1058

Unavailable

92002

BOLT,10X30

92002-1388

Unavailable

92022

WASHER,18.3X34X4.5

92022-1658

$3.42

92033

RING-SNAP

92033-1279

$3.14

92041

COTTER,4.0X35

92041-1053

$2.99

92043

PIN,SHOE HOLD

92043-1460

$3.71

92066

PLUG

92066-1365

$4.47

92144

SPRING,RETURN,LWR

92144-1613

$6.08

92144A

SPRING,LH

92144-1614

$4.81

92144B

SPRING

92144-1615

$3.99

92144C

SPRING,SHOE HOLD

92144-1616

$9.53

92144D

SPRING,RETURN,UPP

92144-1851

$9.05

92144E

SPRING,SHOE HOLD

92144-1858

$9.53

92150

BOLT,FLANGED,6X10

92150-1664

$3.92
