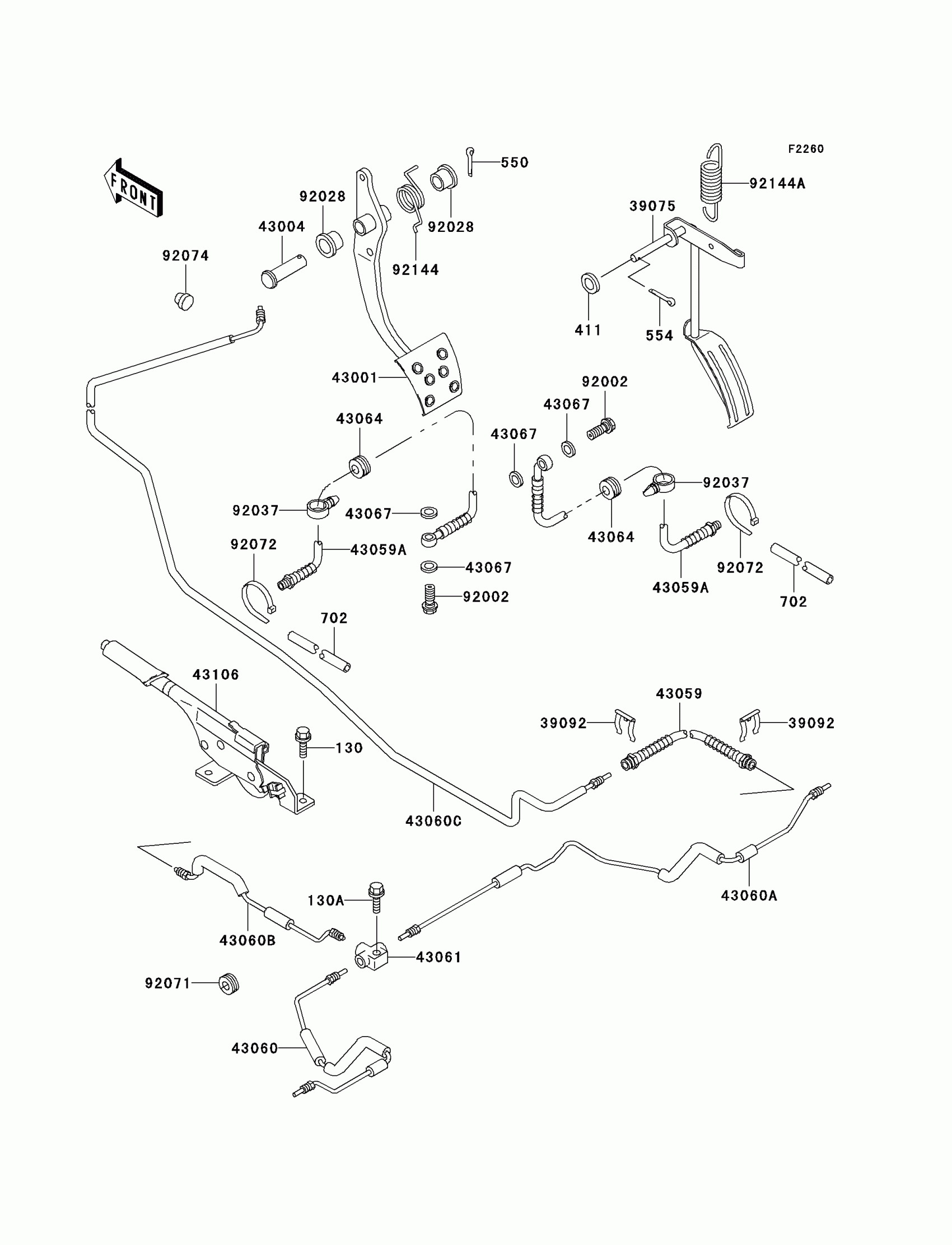

Kawasaki Mule 520 Brake Pedal/Throttle Lever Diagram

#

Description
Price

130

BOLT-FLANGED

130D0816

Unavailable

130A

BOLT-FLANGED,8X30

130D0830

Unavailable

411

WASHER-PLAIN,10MM

411E1000

$0.76

550

PIN-COTTER,2.5X25

550D2525

Unavailable

554

PIN-SNAP,10MM

554A1000

$0.73

702

TUBE-RUBBER,5X8X135

702A05135

Unavailable

39075

LEVER-THROTTLE,PEDAL

39075-1061

$25.02

39092

PIN-HAIR

39092-1052

$6.07

43001

LEVER-BRAKE,PEDAL

43001-1377

$65.95

43004

SHAFT-BRAKE

43004-1128

$16.64

43059

HOSE-BRAKE,CNT

43059-1665

Unavailable

43059A

HOSE-BRAKE,FR

43059-1955

$35.91

43060

PIPE-BRAKE,RR,LH

43060-1088

$37.71

43060A

PIPE-BRAKE,RR,RH

43060-1089

$56.91

43060B

PIPE-BRAKE,RR,CNT

43060-1090

$37.71

43060C

PIPE-BRAKE,FR

43060-1103

$83.87

43061

JOINT-BRAKE

43061-1063

$34.99

43064

GROMMET,HOSE CLAMP

43064-007

$4.18

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43106

LEVER-ASSY-PARKING BRAKE

43106-1003

Unavailable

92002

BOLT,OIL,L=23

92002-1888

$4.15

92028

BUSHING

92028-1571

$10.27

92037

CLAMP,HOSE

92037-1827

$5.69

92071

GROMMET

92071-1152

$3.81

92072

BAND,L=188

92072-1239

$1.30

92074

PLUG,7X2

92074-028

$3.81

92144

SPRING

92144-1536

$6.33

92144A

SPRING

92144-1638

$5.95
