2007 Kawasaki Mule 520 Front Hubs/brakes Diagram

← All diagrams

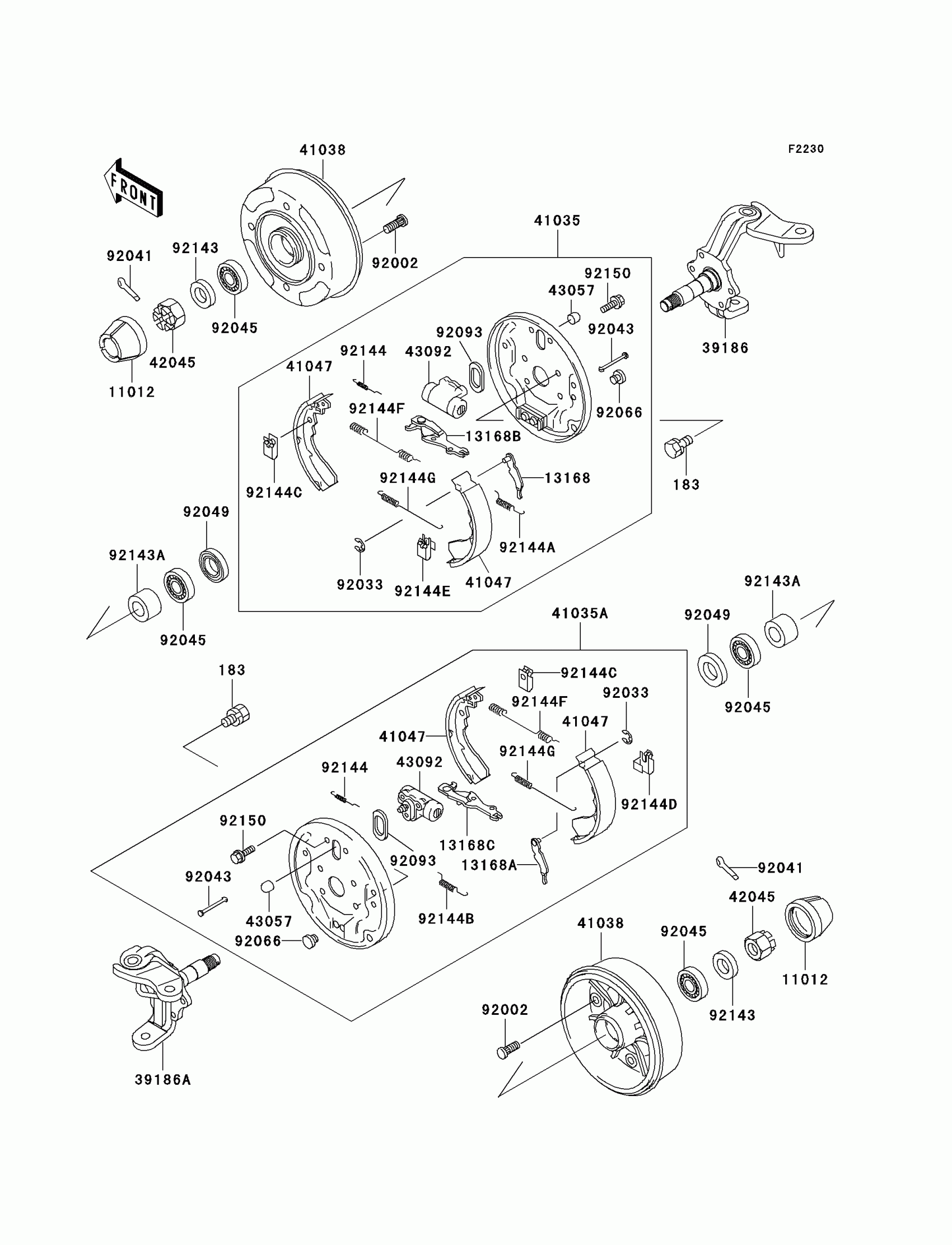

Find the part on the Front Hubs/brakes diagram for your 2007 Kawasaki Mule 520, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 520 Front Hubs/brakes Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

183

BOLT-UPSET-WS-SMALL

183H0814

1
Out of stock

11012

CAP,WHEEL

11012-1969

1
Out of stock

13168

LEVER,STOPPER,LH

13168-1477

1
Out of stock

13168A

LEVER,STOPPER,RH

13168-1478

1
Out of stock

13168B

LEVER,LH

13168-1479

1
Out of stock

13168C

LEVER,RH

13168-1480

1
Out of stock

39186

KNUCKLE,LH

39186-1102

1

$180.00

In stock

39186A

KNUCKLE,RH

39186-1103

1

$180.00

In stock

41035

1

$562.06

In stock

41035A

PANEL-ASSY-BRAKE,FR,RH

41035-1281

1
Out of stock

41038

DRUM,FRONT BRAKE

41038-1238

1

$322.56

In stock

41047

SHOE-ASSY-BRAKE,FR

41047-1051

1

$23.69

In stock

42045

NUT,CASTLE,18MM

42045-018

1
Out of stock

43057

CAP-BREATHER

43057-1053

1
Out of stock

43092

CYLINDER

43092-1057

1
Out of stock

92002

BOLT,10X30

92002-1388

1
Out of stock

92033

RING-SNAP

92033-1279

1
Out of stock

92041

COTTER,4.0X35

92041-1053

1
Out of stock

92043

PIN,SHOE HOLD

92043-1460

1
Out of stock

92045

BEARING-BALL,60/222RS

92045-1170

1
Out of stock

92049

SEAL-OIL

92049-1284

1
Out of stock

92066

PLUG

92066-1365

1
Out of stock

92093

SEAL

92093-1332

1
Out of stock

92143

COLLAR,22.2X28.6X9

92143-1454

1
Out of stock

92143A

COLLAR,22.2X28.6X25

92143-1455

1
Out of stock

92144

SPRING

92144-1604

1
Out of stock

92144A

SPRING,LH

92144-1607

1
Out of stock

92144B

SPRING,RH

92144-1608

1
Out of stock

92144C

SPRING,SHOE HOLD

92144-1609

1
Out of stock

92144D

SPRING,SHOE HOLD

92144-1610

1
Out of stock

92144E

SPRING,SHOE HOLD

92144-1611

1
Out of stock

92144F

SPRING,RETURN,UPP

92144-1612

1
Out of stock

92144G

SPRING,RETURN,LWR

92144-1613

1
Out of stock

92150

BOLT,FLANGED,6X10

92150-1664

1
Out of stock
