2007 Kawasaki Mule 500 Valve/camshaft Diagram

← All diagrams

Find the part on the Valve/camshaft diagram for your 2007 Kawasaki Mule 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

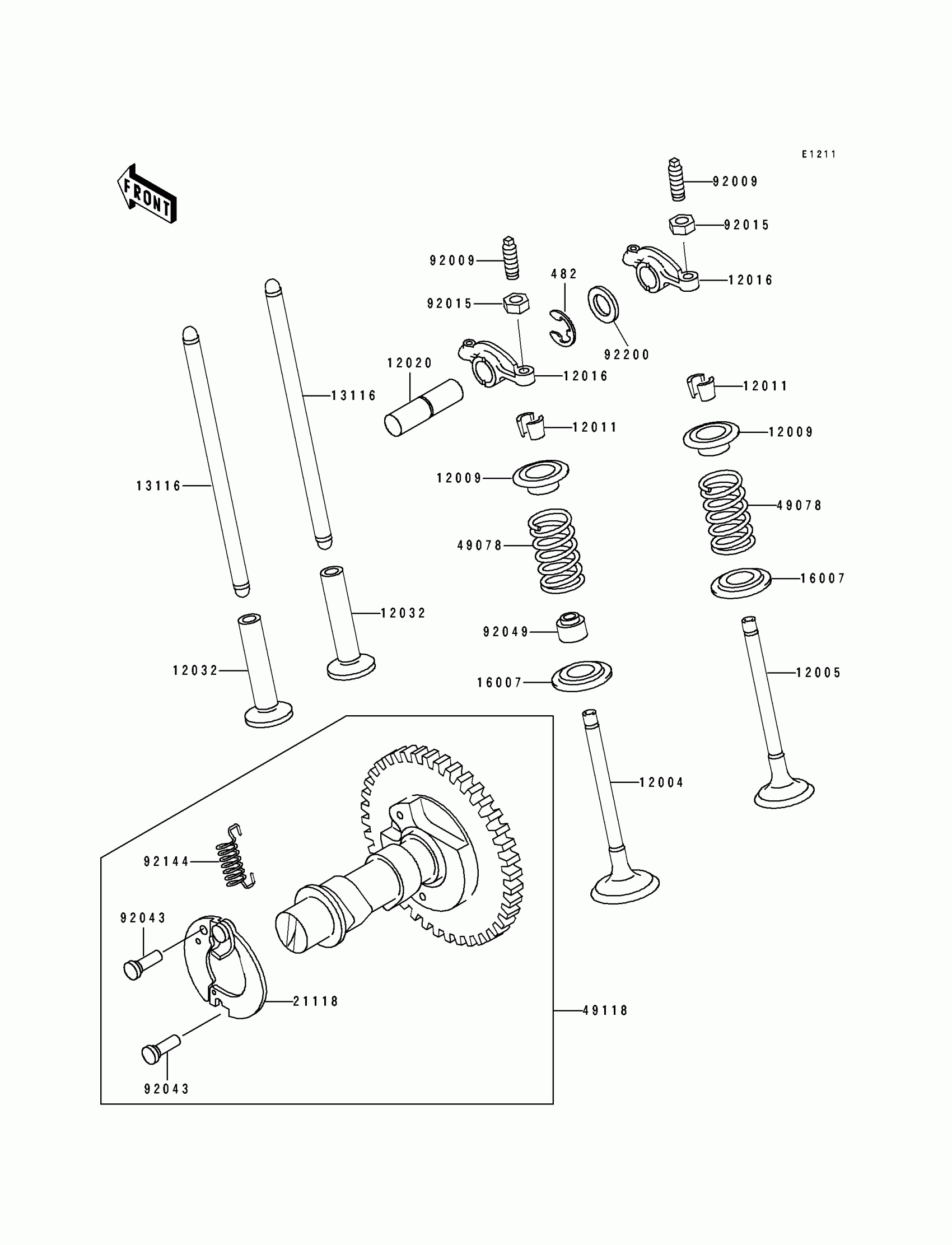

2007 Kawasaki Mule 500 Valve/camshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-2084

1
Out of stock

12005

VALVE-EXHAUST

12005-2077

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-2060

1
Out of stock

12011

COLLET

12011-2052

1
Out of stock

12016

ARM-ROCKER

12016-2058

1
Out of stock

12020

SHAFT-ROCKER

12020-2060

1
Out of stock

12032

TAPPET

12032-2060

1
Out of stock

13116

ROD-PUSH

13116-2054

1
Out of stock

16007

SEAT-SPRING

16007-2052

1
Out of stock

21118

DECOMPRESSOR

21118-2074

1
Out of stock

49078

SPRING-ENGINE VALVE

49078-2060

1
Out of stock

49118

CAMSHAFT-COMP

49118-2081

1
Out of stock

92009

SCREW,VALVE ADJUST

92009-1109

1
Out of stock

92015

NUT,VALVE ADJUST LOCK

92015-1137

1
Out of stock

92043

PIN,5X17.6

92043-2113

1
Out of stock

92049

SEAL-OIL,VSB-7X12X9.7

92049-2100

1
Out of stock

92144

SPRING

92144-2166

1
Out of stock

92200

WASHER,12.1X19X1.6

92022-2397

1
Out of stock

482

CIRCLIP-TYPE-E,10MM

482J0100

1
Out of stock
