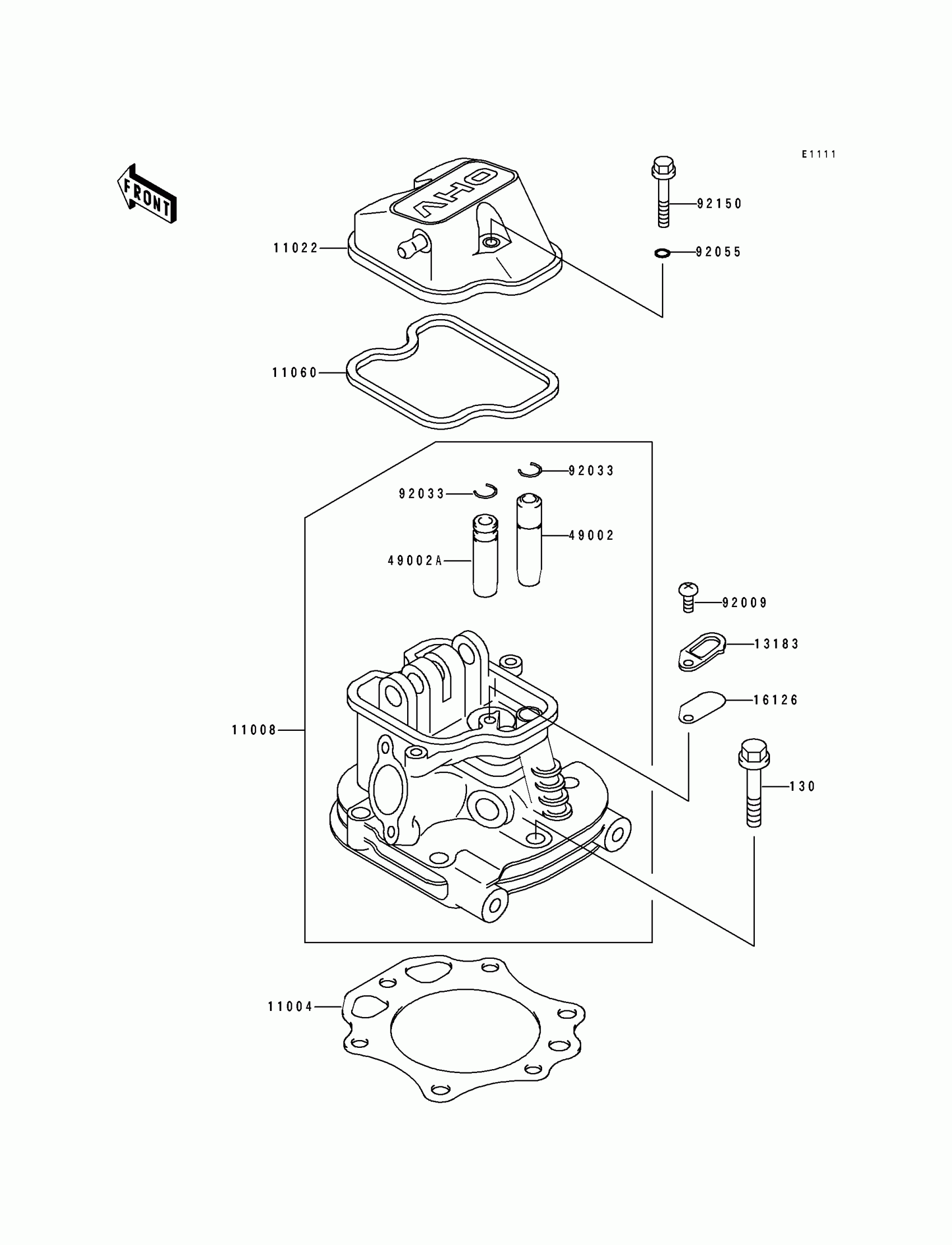

Kawasaki Mule 500 Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-2105

Unavailable

11008

HEAD-COMP-CYLINDER

11008-2089

Unavailable

11022

CASE-ROCKER

11022-6001

Unavailable

11060

GASKET,ROCKER CASE

11009-2829

$6.42

13183

PLATE

13183-2299

$1.05

16126

VALVE

16126-2107

$0.68

49002

GUIDE-VALVE,EX

49002-2090

$10.94

49002A

GUIDE-VALVE,IN

49002-2101

$13.82

92009

SCREW

92009-2308

$0.46

92033

RING-SNAP,VALVE GUIDE

92036-023

$0.48

92055

RING-O,5.5X1.5

92055-1343

$0.60

92150

BOLT,6X35

92150-2145

$0.63

130

BOLT-FLANGED

130T0845

Unavailable
