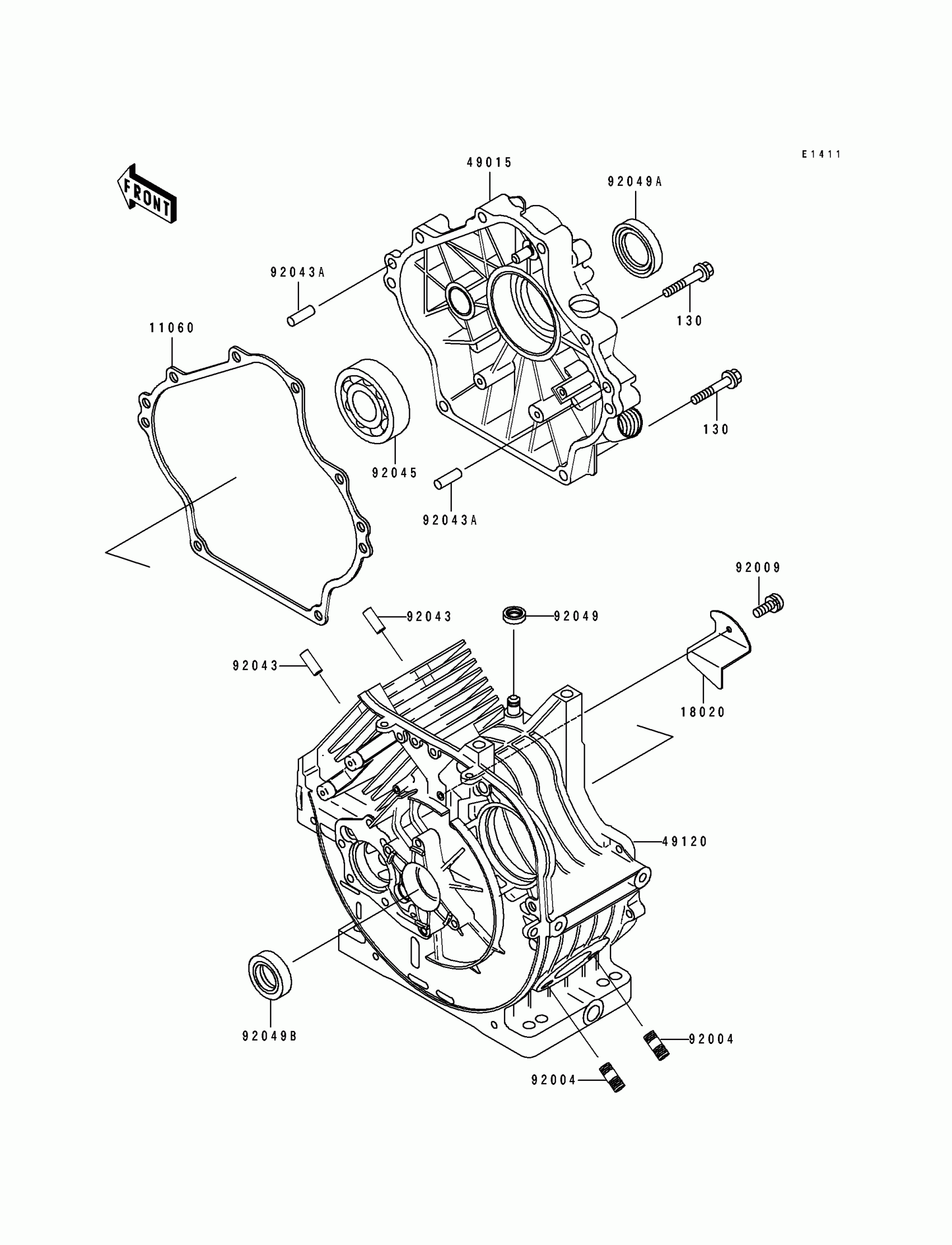

Kawasaki Mule 500 Crankcase Diagram

Description

Price

11060

GASKET,CRANKCASE COVER

11009-2940

Unavailable

18020

BAFFLE

18020-2060

$1.59

49015

COVER-CRANKCASE

49015-6099

Unavailable

49120

CRANKCASE-COMP

49120-6062

$412.46

92004

STUD,6X14

92004-2083

$1.22

92009

SCREW

92009-2308

$0.46

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92043A

PIN,6.2X8X14

92043-1263

$0.46

92045

BEARING-BALL,6306JRCM

92045-2168

$18.38

92049

SEAL-OIL,VC-6X10X2.5

92049-2097

$1.52

92049A

SEAL-OIL

92049-2103

$6.24

92049B

SEAL-OIL

92049-2199

$4.31

130

BOLT-FLANGED

130T0845

Unavailable
