2013 Kawasaki Mule™ 4010 Diesel 4x4 Radiator Diagram

← All diagrams

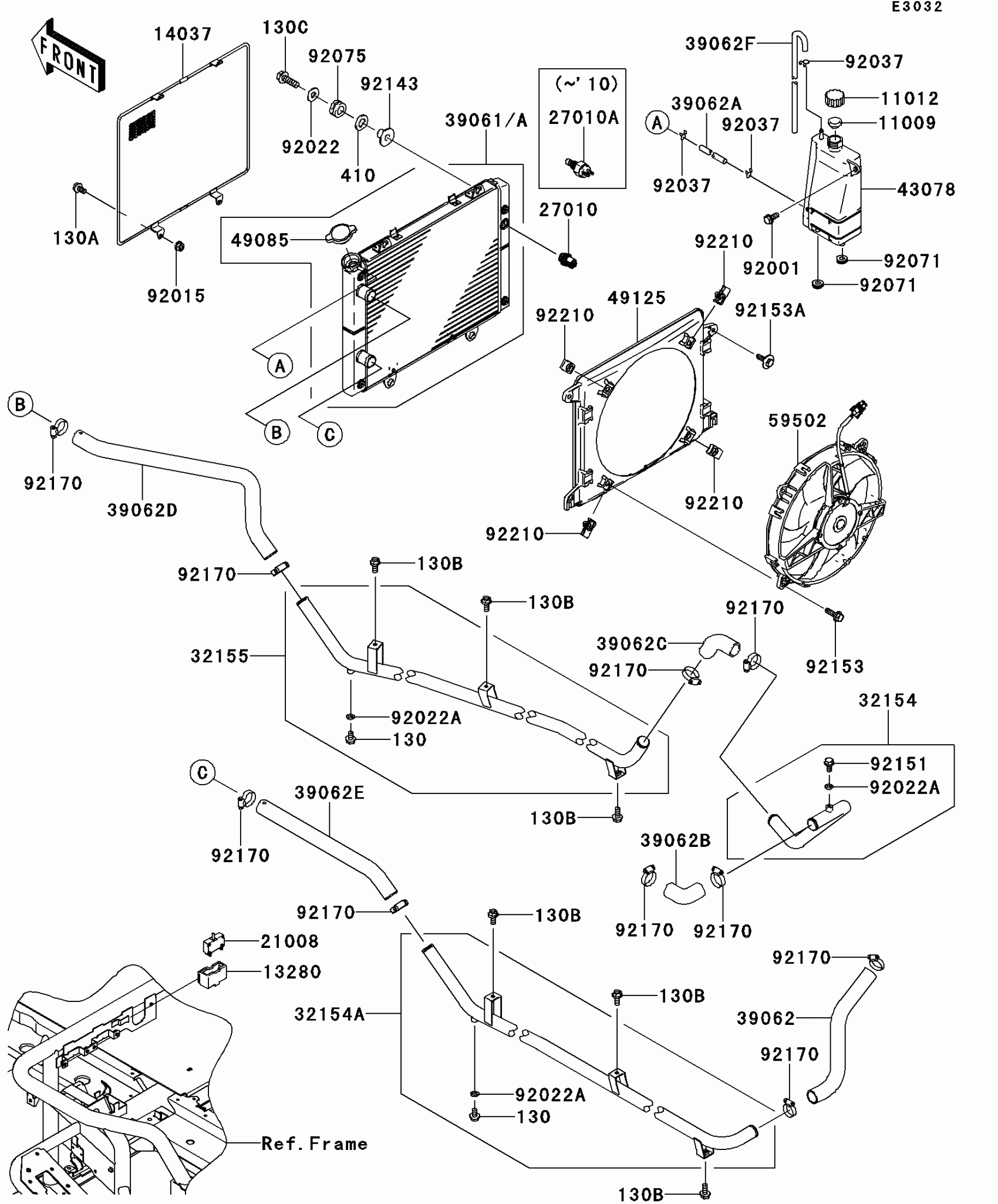

Find the part on the Radiator diagram for your 2013 Kawasaki Mule™ 4010 Diesel 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Mule™ 4010 Diesel 4x4 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11012

CAP

11012-1084

1
Out of stock

13280

HOLDER,BREAKER

13280-0082

1

$4.92

In stock

14037

SCREEN

14037-7506

1

$106.73

In stock

21008

BREAKER,FAN MOTOR

21008-0005

1
Out of stock

27010

SWITCH,FAN

27010-0125

1
Out of stock

32154

PIPE,RH

32154-7608

1
Out of stock

32154A

PIPE

32154-7620

1
Out of stock

32155

PIPE,RH FR

32155-0006

1
Out of stock

39061A

RADIATOR-ASSY

39061-0205

1

$461.73

In stock

39062

HOSE-COOLING

39062-0032

1

$22.13

In stock

39062A

1

$3.24

In stock

39062B

HOSE-COOLING

39062-7503

1

$8.19

In stock

39062C

HOSE-COOLING

39062-7504

1

$14.02

In stock

39062D

HOSE-COOLING

39062-7505

1

$31.06

In stock

39062E

HOSE-COOLING

39062-7506

1

$24.68

In stock

39062F

HOSE-COOLING,DRAIN

39062-7507

1

$22.78

In stock

43078

RESERVOIR

43078-0062

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-7501

1
Out of stock

49125

SHROUD

49125-0035

1
Out of stock

59502

FAN-ASSY

59502-7501

1
Out of stock

92001

BOLT,W/P,6X16

92001-1860

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

1
Out of stock

92022A

WASHER,6.2X11X1

92022-304

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92071

GROMMET

92071-1115

1
Out of stock

92075

DAMPER

92075-294

1
Out of stock

92143

COLLAR

92143-1946

1
Out of stock

92151

BOLT,6X10

92151-1832

1
Out of stock

92153

BOLT

92153-7505

1
Out of stock

92153A

BOLT

92153-7506

1
Out of stock

92170

CLAMP,COOLING HOSE

92170-1284

1

$6.51

In stock

92210

NUT

92210-1331

1
Out of stock

130

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock

130A

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

130B

BOLT-FLANGED,6X14

130BB0614

1

$1.84

In stock

130C

BOLT-FLANGED,8X25

130BB0825

1

$3.53

In stock

410

WASHER-PLAIN-SMALL,12MM,BLACK

410AB1200

1
Out of stock
