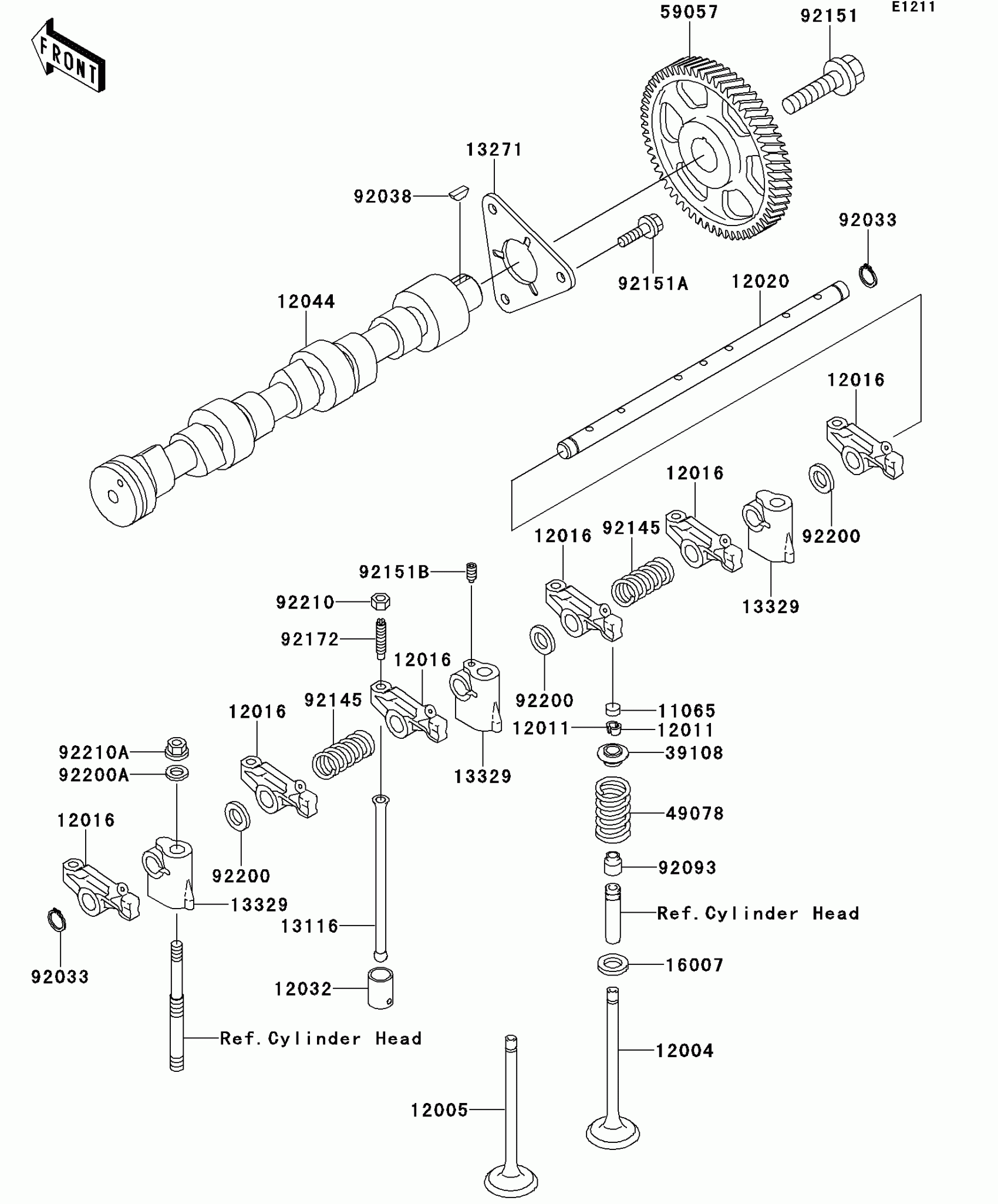

Kawasaki MULE™ 4010 DIESEL 4x4 Valve(s)/Camshaft(s) Diagram

Description

Price

11065

CAP,VALVE STEM

11065-0117

$5.58

12004

VALVE-INTAKE

12004-1145

$36.40

12005

VALVE-EXHAUST

12005-1297

$39.39

12011

COLLET

12011-1054

$1.81

12016

ARM-ROCKER

12016-1120

$58.44

12020

SHAFT-ROCKER

12020-1082

$40.66

12032

TAPPET

12032-1064

$16.54

12044

CAMSHAFT-VALVE

12044-1468

$354.69

13116

ROD-PUSH

13116-0015

$12.09

13271

PLATE

13271-1364

$22.88

13329

SUPPORT,ROCKER SHAFT

13329-1001

$17.59

16007

SEAT-SPRING

16007-1202

$1.81

39108

RETAINER-SPRING

39108-1151

$3.89

49078

SPRING-ENGINE VALVE

49078-1203

$3.32

59057

GEAR-HELICAL,CAMSHAFT

59057-1001

$162.43

92033

RING-SNAP

92033-1316

$3.29

92038

KEY

92038-1064

$2.10

92093

SEAL,VALVE STEM

92093-1521

$5.15

92145

SPRING,ROCKER ARM

92145-1288

$2.10

92151

BOLT,10X29

92151-1676

$6.93

92151A

BOLT,6X18

92151-1677

$1.82

92151B

BOLT,ROCKER SHAFT SET

92151-1678

$2.76

92172

SCREW,VALVE ADJUST

92172-0210

$7.88

92200

WASHER,ROCKER ARM

92200-1501

$2.12

92200A

WASHER,8MM

92200-1502

$2.12

92210

NUT,VALVE ADJUST

92210-1213

$1.82

92210A

NUT,8MM

92210-1214

$2.12
