2013 Kawasaki Mule™ 4010 Diesel 4x4 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2013 Kawasaki Mule™ 4010 Diesel 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

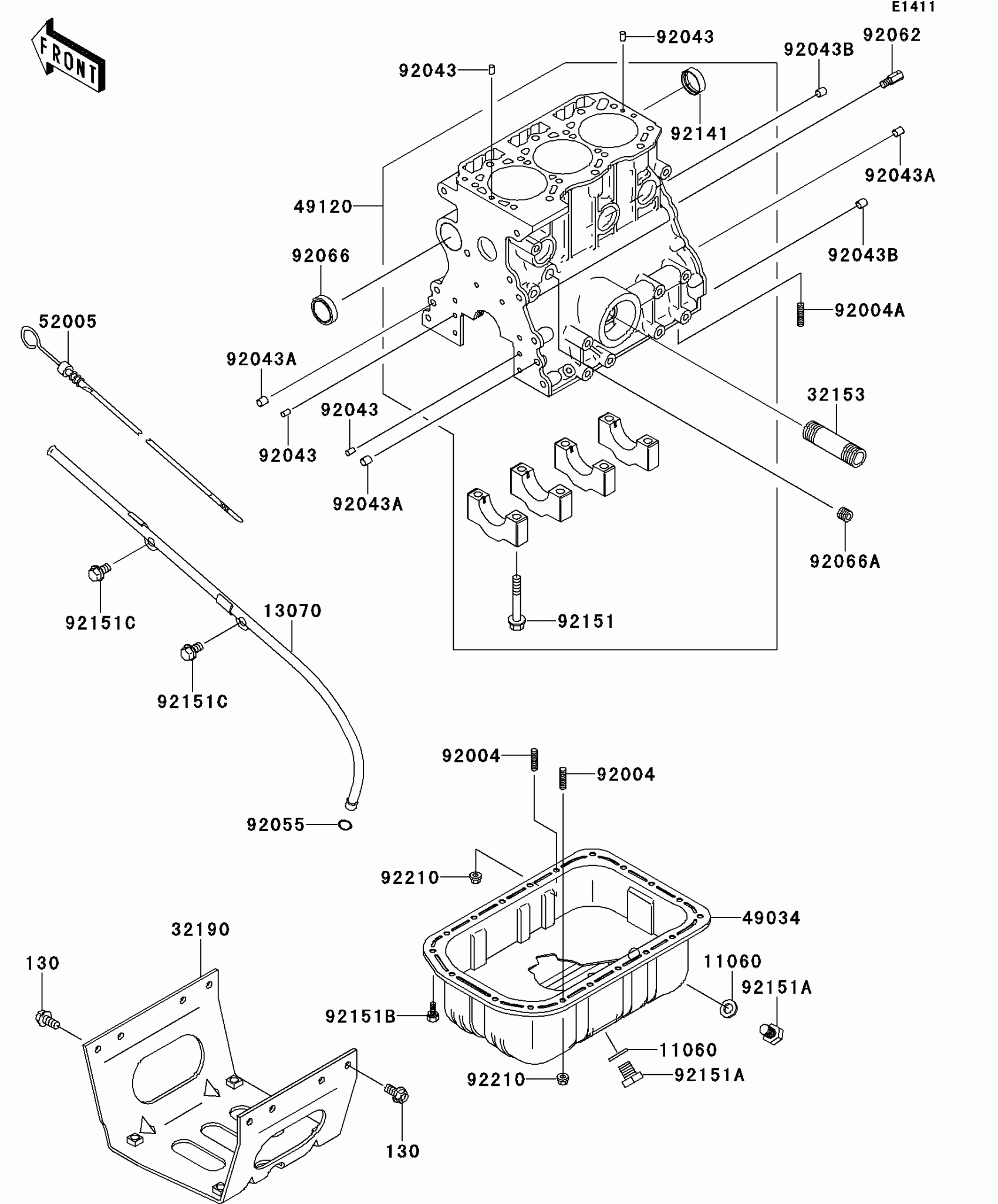

2013 Kawasaki Mule™ 4010 Diesel 4x4 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

1

$2.96

In stock

13070

GUIDE,GAUGE

13070-1350

1

$84.50

In stock

32153

PIPE,OIL FILTER

32153-1355

1

$9.24

In stock

32190

BRACKET-ENGINE

32190-1187

1

$81.55

In stock

49034

PAN-OIL

49034-0024

1

$181.45

In stock

49120

CRANKCASE-COMP

49120-0008

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1139

1

$48.01

In stock

92004

STUD,6X10

92004-1261

1
Out of stock

92004A

STUD,6X14

92004-1262

1
Out of stock

92043

PIN,6MM

92043-1609

1

$2.12

In stock

92043A

PIN,8MM

92043-1610

1

$2.12

In stock

92043B

PIN,8MM

92043-1611

1

$2.12

In stock

92055

RING-O

92055-1625

1

$2.12

In stock

92062

NOZZLE

92062-1088

1

$11.58

In stock

92066

PLUG

92066-1526

1

$7.96

In stock

92066A

PLUG,CRANKCASE

92066-1527

1

$3.29

In stock

92141

BUSHING,CRANKCASE

92141-1053

1

$7.63

In stock

92151

BOLT,CRANKSHAFT

92151-1655

1

$2.27

In stock

92151A

BOLT,OIL DRAIN

92151-1656

1

$2.76

In stock

92151B

BOLT,6X12

92151-1657

1

$2.12

In stock

92151C

BOLT,8X14

92151-1658

1

$2.12

In stock

92210

NUT,6MM

92210-1208

1
Out of stock

130

BOLT-FLANGED,8X16

130BB0816

1

$1.47

In stock
