2013 Kawasaki Mule™ 4010 Diesel 4x4 Guards/cab Frame Diagram

← All diagrams

Find the part on the Guards/cab Frame diagram for your 2013 Kawasaki Mule™ 4010 Diesel 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

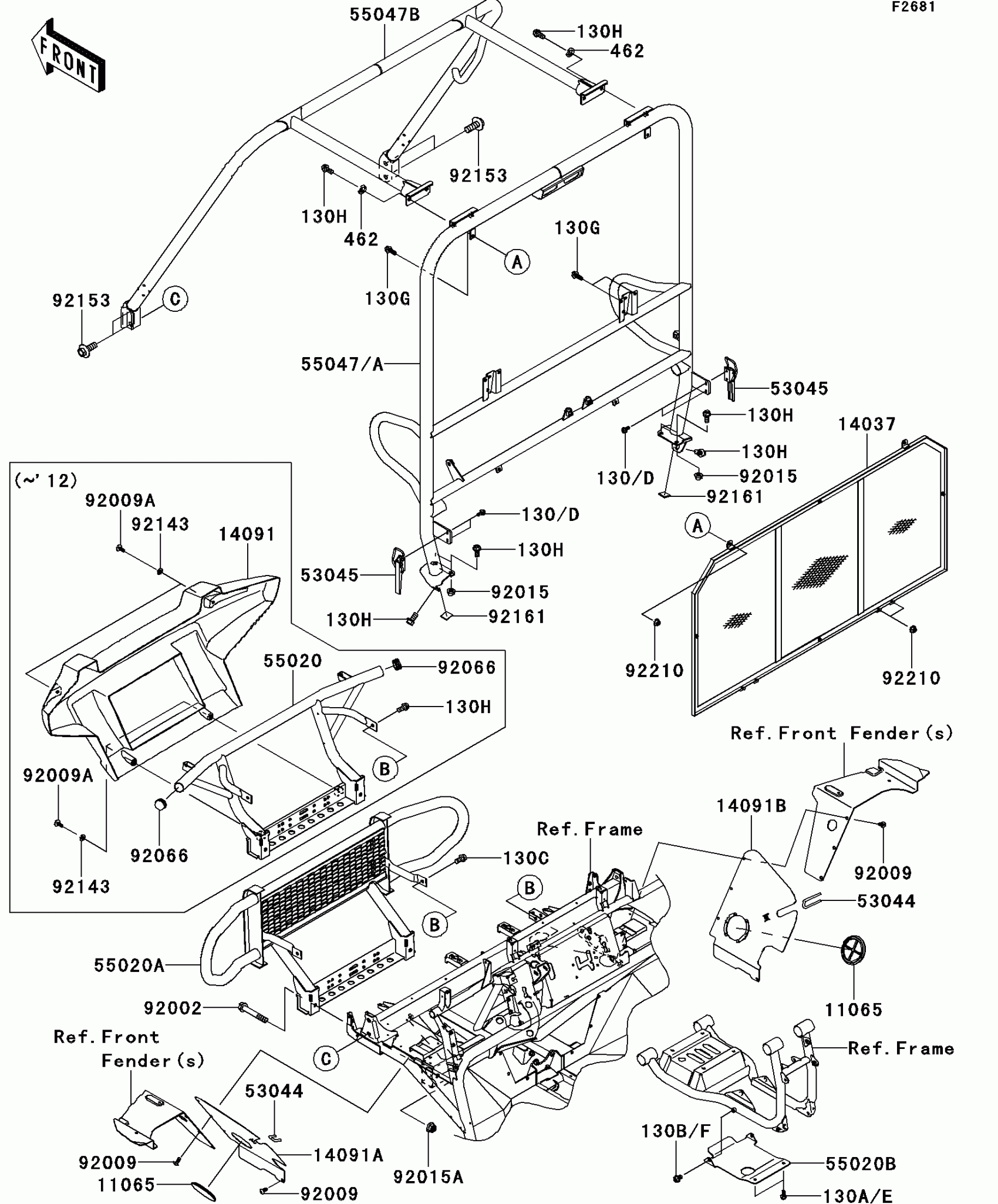

2013 Kawasaki Mule™ 4010 Diesel 4x4 Guards/cab Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,F.BLACK

11065-1053-6Z

1
Out of stock

14037

SCREEN,REAR GUARD,T.BLACK

14037-0016-388

1
Out of stock

14091

COVER,FRONT GUARD,F.BLACK

14091-0817-6Z

1
Out of stock

14091A

COVER,FR,LH

14091-1758

1
Out of stock

14091B

COVER,FR,RH

14091-1759

1
Out of stock

53044

TRIM

53044-1137

1
Out of stock

53045

HOOK-ASSY

53045-1063

1
Out of stock

55020

GUARD,FR

55020-0387

1
Out of stock

55020A

GUARD,FR

55020-0876

1
Out of stock

55020B

GUARD,GEAR CASE

55020-7506

1
Out of stock

55047

BAR-COMP,T.BLACK

55047-0026-388

1
Out of stock

55047A

BAR-COMP,T.BLACK

55047-0330-388

1
Out of stock

55047B

BAR-COMP,FR,T.BLACK

55047-7514-388

1
Out of stock

92002

BOLT,FLANGED,12X75

92002-1661

1
Out of stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92009A

SCREW,6X16

92009-1621

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1428

1
Out of stock

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92066

PLUG

92066-7503

1
Out of stock

92143

COLLAR

92143-1087

1
Out of stock

92153

BOLT,FLANGED,14X36

92153-1282

1
Out of stock

92161

DAMPER

92161-0020

1
Out of stock

92210

NUT,FLANGED,LOCK,8MM

92210-0005

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1
Out of stock

130A

BOLT-FLANGED,6X16

130BA0616

1
Out of stock

130B

BOLT-FLANGED,8X12

130BA0812

1
Out of stock

130C

BOLT-FLANGED,10X20

130BA1020

1
Out of stock

130D

BOLT-FLANGED,6X14

130BB0614

1
Out of stock

130E

BOLT-FLANGED,6X16

130BB0616

1
Out of stock

130F

BOLT-FLANGED,8X12

130BB0812

1
Out of stock

130G

BOLT-FLANGED,8X20

130BB0820

1
Out of stock

130H

BOLT-FLANGED,10X20

130BB1020

1
Out of stock

462

WASHER-SPRING,10MM

462DB1000

1
Out of stock
