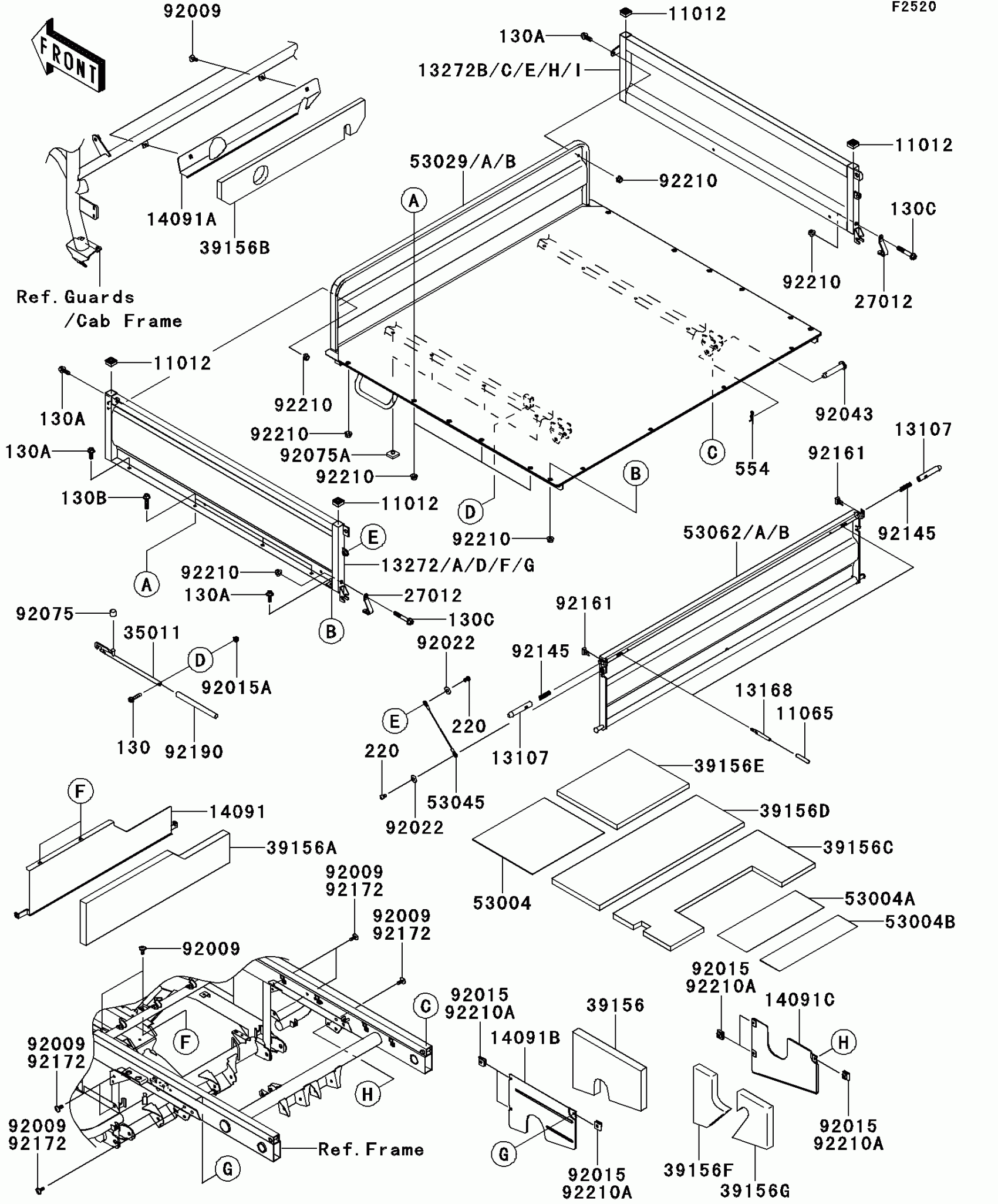

Kawasaki MULE™ 4010 DIESEL 4x4 Carrier(s) Diagram

#

Description
Price

11012

CAP

11012-1784

$4.74

11065

CAP

11065-0126

$2.34

13107

SHAFT

13107-0082

$58.67

13168

LEVER

13168-0090

$9.15

13272A

PLATE,SIDE,LH,W.GREEN

13272-0209-398

$269.32

13272C

PLATE,SIDE,RH,W.GREEN

13272-0210-398

$269.32

13272F

PLATE,SIDE,LH,D.R.RED

13272-1231-16M

$243.35

13272G

PLATE,SIDE,LH,S.GREEN

13272-1231-42F

$246.53

13272H

PLATE,SIDE,RH,D.R.RED

13272-1232-16M

$243.35

13272I

PLATE,SIDE,RH,S.GREEN

13272-1232-42F

$246.53

14091

COVER,SEAT UNDER

14091-1151

$79.06

14091A

COVER,SEAT REAR

14091-1152

$57.16

14091B

COVER,ENCLOSURE,LH

14091-7546

$60.76

14091C

COVER,ENCLOSURE,RH

14091-7562

$60.76

27012

HOOK,TAIL GATE

27012-0022

$4.81

35011

STAY,CARRIER STOPPER

35011-1648

$29.46

39156

PAD,ENCLOSURE COVER,LH

39156-0007

$40.64

39156A

PAD,SEAT UNDER

39156-0009

$47.66

39156B

PAD,SEAT REAR

39156-0011

$21.85

39156C

PAD,CARRIER,RR

39156-0013

$81.80

39156D

PAD,CARRIER,MIDDLE

39156-0465

$71.76

39156E

PAD,CARRIER,FR

39156-0468

$35.41

39156F

PAD,ENCLOSURE COVER,RH

39156-7507

$20.78

39156G

PAD,ENCLOSURE COVER,RH

39156-7508

$20.78

53004

MAT,CARRIER,FR

53004-0035

$59.08

53004A

MAT,CARRIER,MIDDLE

53004-0036

$22.98

53004B

MAT,CARRIER,RR

53004-0037

$16.00

53029A

CARRIER,BASE PLATE,T.BLACK

53029-0063-388

$1,034.69

53029B

CARRIER,BASE PLATE,W.GREEN

53029-0063-398

$1,150.04

53045

HOOK-ASSY,TAIL GATE

53045-0004

$26.21

53062

GATE-TAIL,D.R.RED

53062-0001-16M

$405.17

53062A

GATE-TAIL,W.GREEN

53062-0001-398

$424.62

53062B

GATE-TAIL,S.GREEN

53062-0001-42F

$424.62

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,6MM

92015-1094

$6.55

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,7X18X1.2

92022-1545

$0.84

92043

PIN,12X65

92043-1428

$7.69

92075

DAMPER

92075-1817

$4.67

92075A

DAMPER

92075-1882

$6.18

92145

SPRING,TENSIONER

92145-1215

$3.52

92161

DAMPER

92161-0258

$3.18

92172

SCREW,TAPPING,6X20

92172-0488

$2.11

92190

TUBE,13X16X200

92190-1401

$4.63

92210

NUT,FLANGED,8MM

92210-0555

$1.47

92210A

NUT,LEAF SPRING,6MM

92210-0624

$1.66

130

BOLT-FLANGED,6X30

130BA0630

$1.13

130A

BOLT-FLANGED,8X20

130BB0820

$0.71

130B

BOLT-FLANGED,8X30

130BB0830

$3.42

130C

BOLT-FLANGED,8X50

130BB0850

$3.60

220

SCREW-PAN-CROS,6X10

220AB0610

$1.33

554

PIN-SNAP,12MM

554DA1200

$2.63
