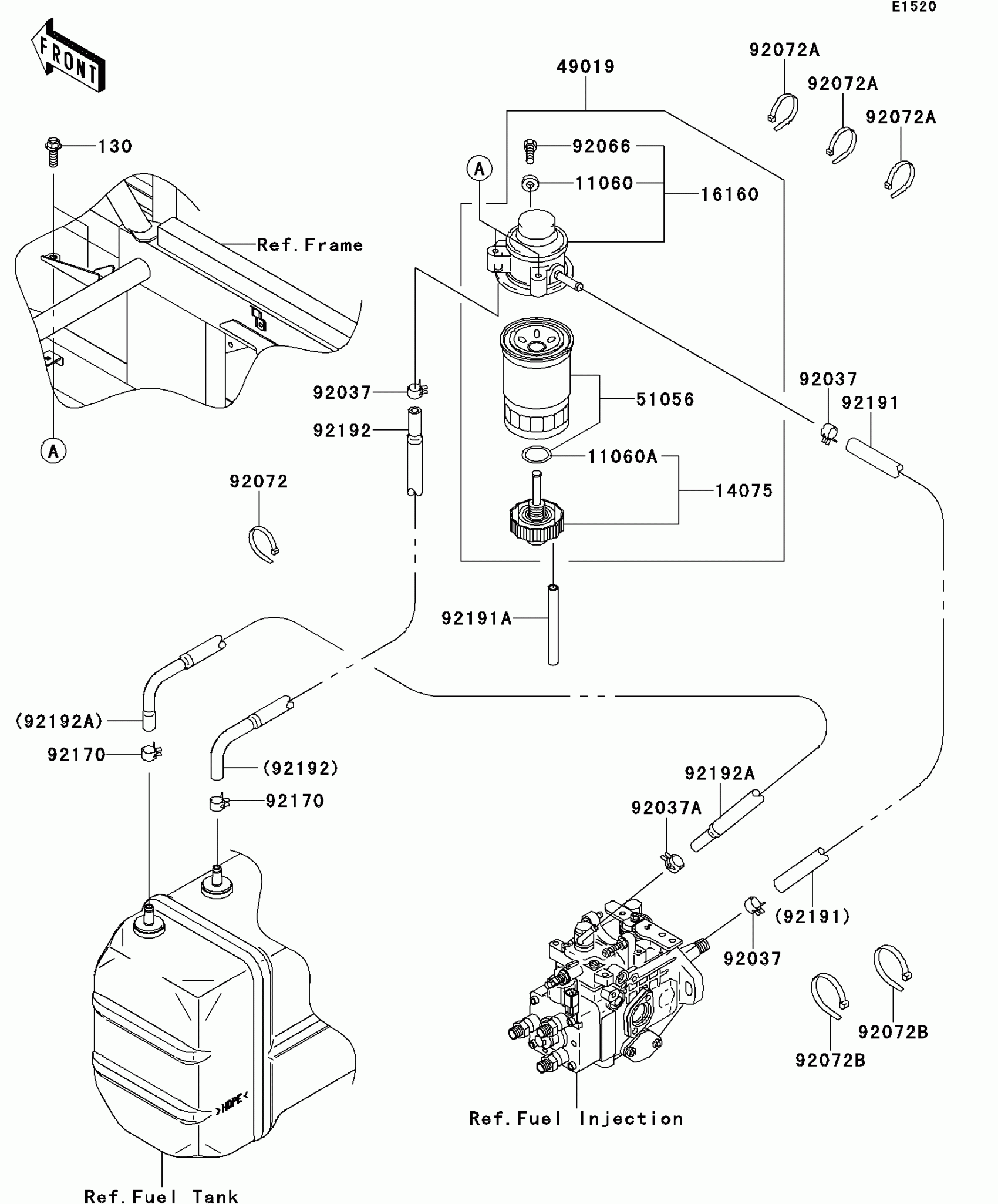

Kawasaki MULE™ 4010 DIESEL 4x4 Fuel Pump Diagram

Description

Price

11060

GASKET,AIR VENT

11060-1978

$2.66

11060A

GASKET

11060-1979

$3.49

14075

CAP-ASSY,DRAIN

14075-1109

$83.56

16160

BODY,FUEL FILTER

16160-1328

$176.06

49019

FILTER-FUEL

49019-1094

$188.67

51056

ELEMENT-FUEL FILTER

51056-1051

$79.97

92037

CLAMP,HOSE CLIP

92037-1181

$2.31

92037A

CLAMP,TUBE

92037-1505

$3.63

92066

PLUG,AIR VENT

92066-1538

$2.00

92072

BAND,L=186

92072-056

$3.81

92072A

BAND,L=188

92072-1239

$1.30

92072B

BAND,L=368.3

92072-3872

$1.20

92170

CLAMP

92170-1938

$2.84

92191

TUBE,INJECTION INLET

92191-1437

$57.26

92191A

TUBE,DRAIN,8X11X100

92191-1565

$2.56

92192

TUBE,INJECTION-TANK

92192-0704

$65.49

92192A

TUBE,TANK-INJECTION

92192-0705

$127.68

130

BOLT-FLANGED,8X25

130BB0825

$3.39
