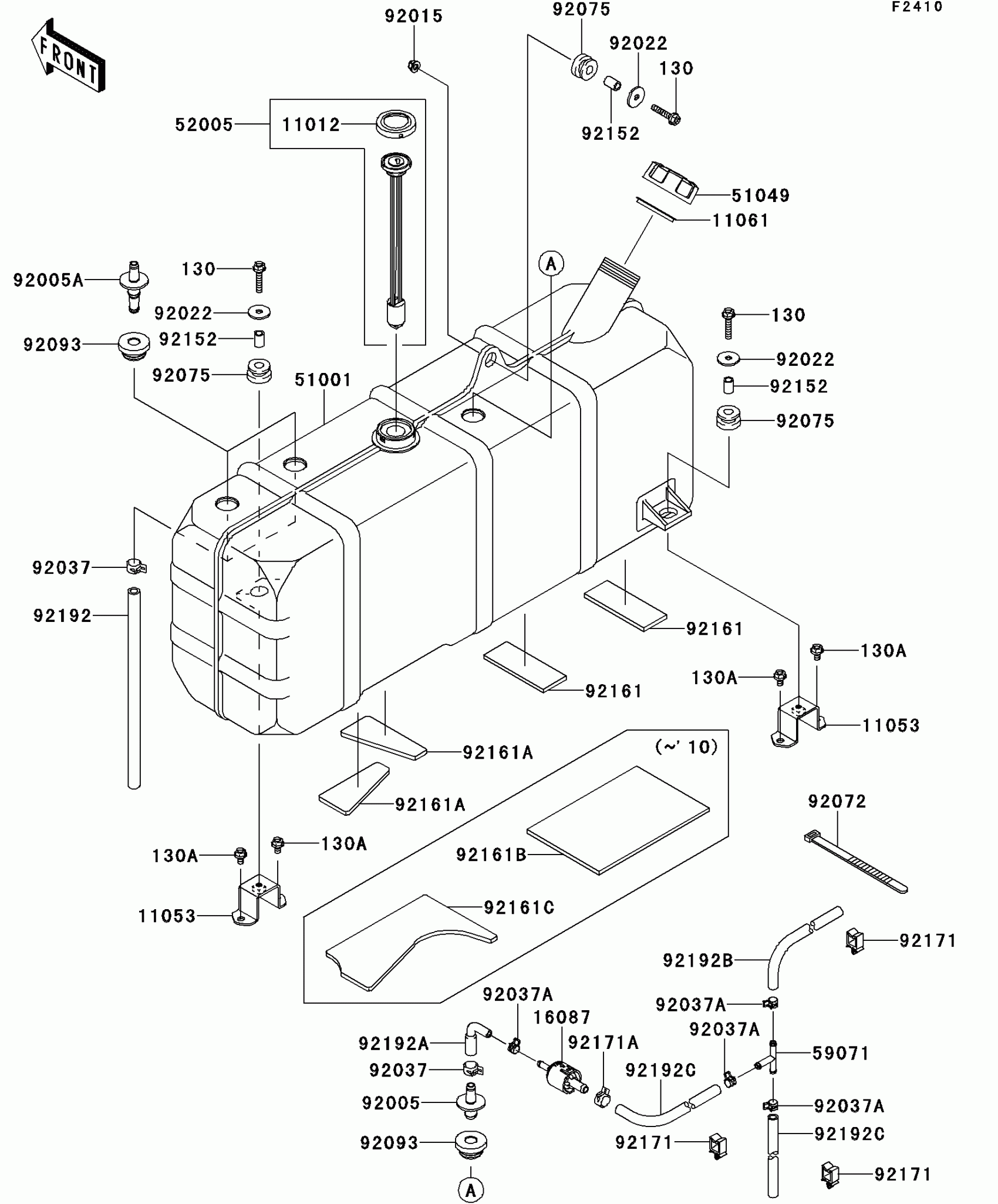

Kawasaki MULE™ 4010 DIESEL 4x4 Fuel Tank(F9F-FCF) Diagram

Description

Price

11012

CAP,FUEL GAUGE

11012-1627

$12.87

11053

BRACKET

11053-7512

$6.97

11061

GASKET,FUEL TANK CAP

11061-7508

$4.42

16087

VALVE-CHECK

16087-0002

$43.67

51001

TANK-COMP-FUEL

51001-7504

Unavailable

51049

CAP-TANK,FUEL

51049-7002

Unavailable

52005

GAUGE,FUEL

52005-7501

Unavailable

59071

JOINT

59071-3705

$4.15

92005

FITTING

92005-0106

$9.81

92005A

FITTING

92005-7501

$7.43

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,6.5X24X2

92022-1690

$2.99

92037

CLAMP,HOSE CLIP

92037-1181

$2.31

92037A

CLAMP,TUBE

92037-1461

$2.93

92072

BAND,L=123

92072-030

$3.81

92075

DAMPER

92075-1787

$4.93

92093

SEAL

92093-7502

$6.19

92152

COLLAR,7.02X10.32X15.3

92152-7511

$1.47

92161

DAMPER,92X35X4.76

92161-0813

$3.88

92161A

DAMPER,92X19X4.76

92161-0814

$3.32

92171

CLAMP

92171-0290

$3.29

92171A

CLAMP

92171-0515

$5.56

92192

TUBE,8X13X260

92192-7503

$4.42

92192A

TUBE,TANK-VALVE

92192-7510

$14.90

92192B

TUBE,7X11X370

92192-7512

$2.78

92192C

TUBE,7X11X225

92192-7513

$2.15

130

BOLT-FLANGED,6X30

130BA0630

$1.13

130A

BOLT-FLANGED,6X10

130BB0610

$1.77
