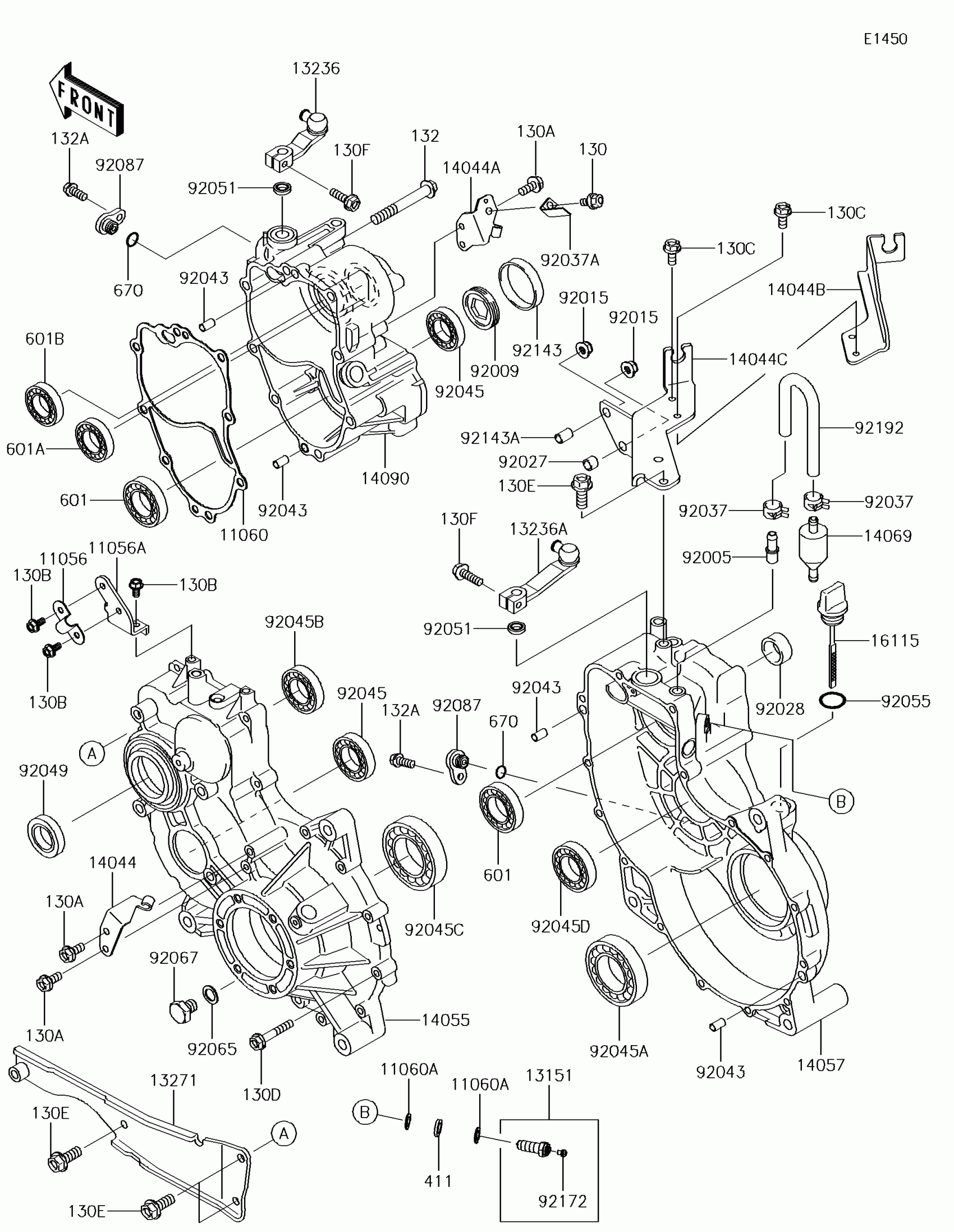

2018 Kawasaki Mule™ 4010 4x4 SE Gear BOX Diagram
Find the part on the Gear BOX diagram for your 2018 Kawasaki Mule™ 4010 4x4 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
11056
BRACKET,OIL PIPE
11056-4139
11056A
BRACKET,OIL PIPE
11056-4140
11060
GASKET,GEAR CASE COVER
11060-1310
11060A
GASKET
11060-1966
13151
SWITCH-COMP
13151-1093
13236
LEVER-COMP
13236-1363
13236A
LEVER-COMP
13236-1372
16115
CAP-OIL FILLER
16115-1060
92005
FITTING,BREATHER
92005-1127
92009
SCREW
92009-1290
92015
NUT,8MM
92015-1432
92027
COLLAR,8.8X12X9
92027-1568
92028
BUSHING,23X30X13
92028-132
92037
CLAMP,TUBE
92037-1505
92037A
CLAMP
92037-1680
92043
PIN,6.2X8X14
92043-1263
92045
BEARING-BALL,TMB304CCM
92045-1142
92045A
BEARING-BALL
92045-1162
92045B
BEARING-BALL,62/28
92045-1207
92045C
BEARING-BALL,6210CM
92045-1213
92045D
BEARING-BALL,TMB205JR2
92045-1285
92049
SEAL-OIL,TC28X47X7
92049-1297
92051
SEAL-OIL,TB13225.5
92051-005
92055
RING-O,20X3
92055-2185
92065
GASKET,10.5X16X1
92065-058
92067
PLUG,DRAIN,10X12
92067-001
92087
BUSHING-METER GEAR
92087-1058
92143
COLLAR,66X70X11
92143-1120
92143A
COLLAR,8.5X15X9
92143-1642
92172
SCREW,4X6
92172-0717
92192
TUBE
92192-1643
411
WASHER-PLAIN,10MM
411AA1000
601
BEARING-BALL,#6007C3
601B6007
601A
BEARING-BALL,#6303C3
601B6303
601B
BEARING-BALL
601B6303U
670
O RING,10MM
670D1510
