2018 Kawasaki Mule™ 4010 4x4 Se Drive Converter Diagram

← All diagrams

Find the part on the Drive Converter diagram for your 2018 Kawasaki Mule™ 4010 4x4 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

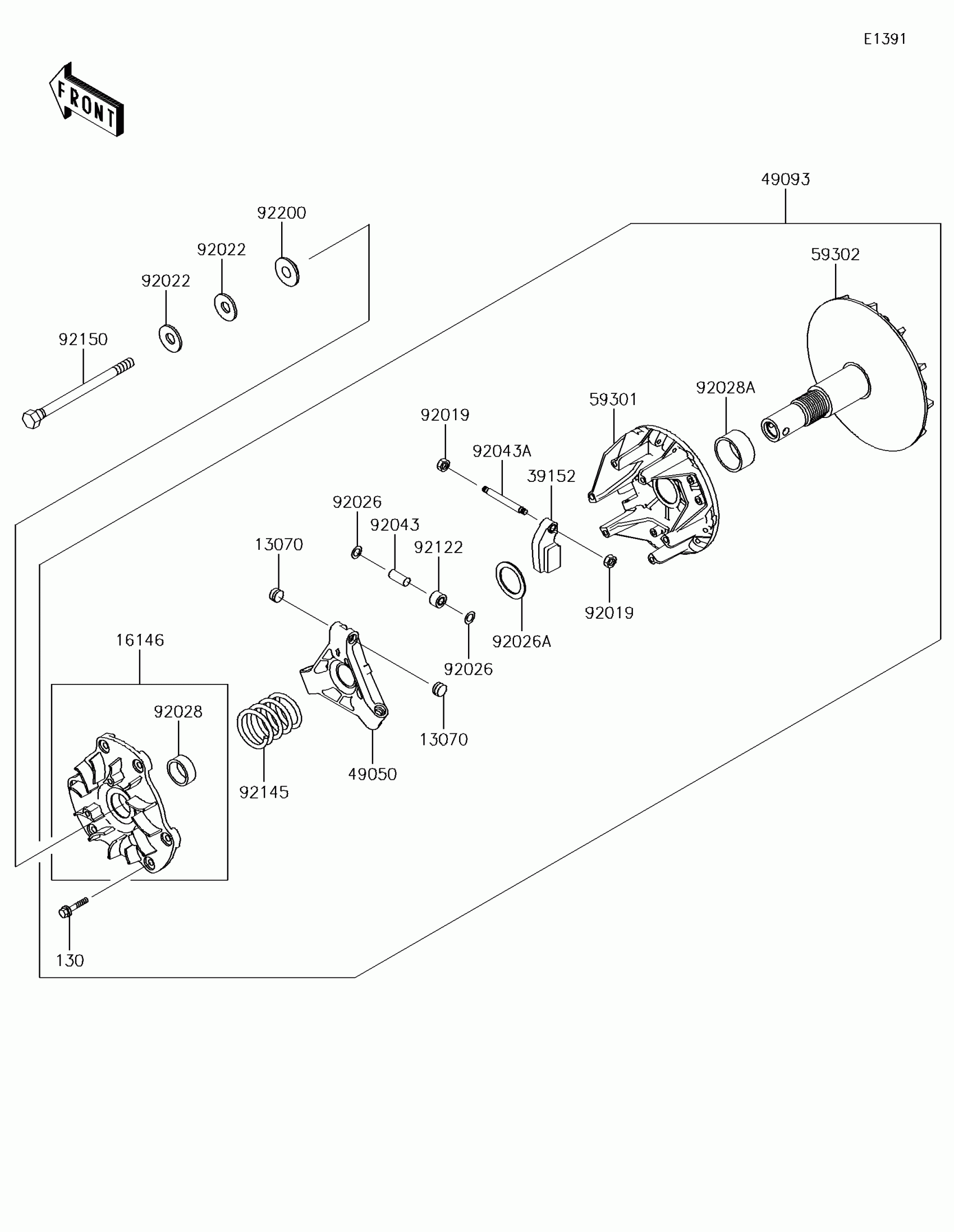

2018 Kawasaki Mule™ 4010 4x4 Se Drive Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE

13070-1330

1
Out of stock

16146

COVER-ASSY

16146-1219

1
Out of stock

39152

WEIGHT-RAMP

39152-1078

1
Out of stock

49050

SPIDER

49050-0018

1
Out of stock

49093

CONVERTER-ASSY-DRIVE

49093-0025

1
Out of stock

59301

SHEAVE-MOVABLE

59301-0016

1
Out of stock

59302

SHEAVE-COMP

59302-1085

1
Out of stock

92019

NUT,LOCK,6MM

92019-008

1
Out of stock

92022

WASHER,SPECIAL CONICAL

92022-1901

1
Out of stock

92026

SPACER

92026-1512

1
Out of stock

92026A

SPACER,32.3X44.3X3.6

92026-1591

1
Out of stock

92028

BUSHING

92028-1861

1
Out of stock

92028A

BUSHING

92028-1864

1
Out of stock

92043

PIN

92043-1572

1
Out of stock

92043A

PIN

92043-1573

1
Out of stock

92122

ROLLER

92122-1204

1
Out of stock

92145

SPRING,YELLOW PAINT

92145-0639

1
Out of stock

92150

BOLT,12X163.5

92150-1008

1
Out of stock

92200

WASHER

92200-1401

1
Out of stock

130

BOLT-FLANGED,6X30

130CA0630

1
Out of stock
