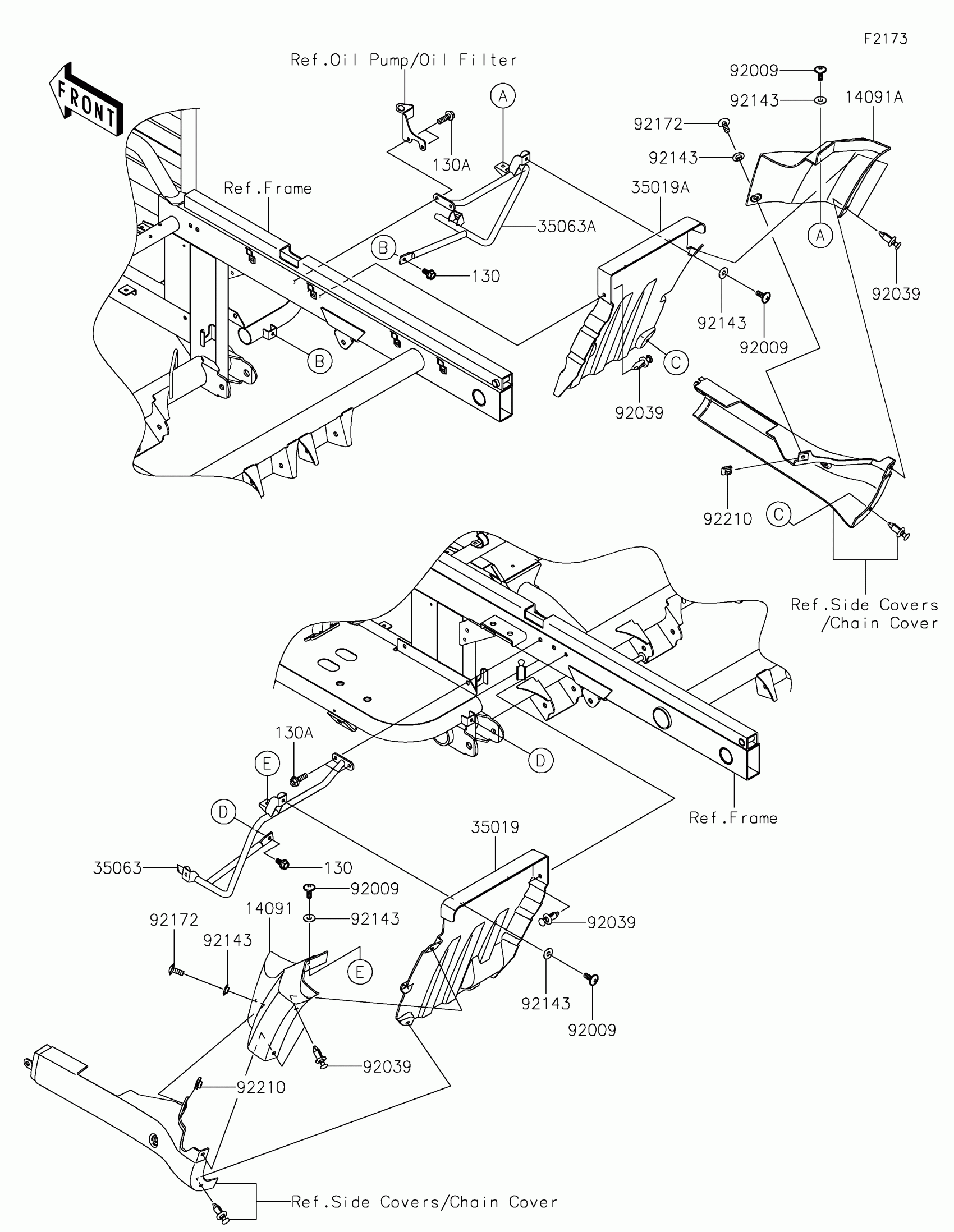

Kawasaki MULE™ 4010 4x4 FE Flap Diagram

Description

Price

14091

COVER,REAR FENDER,LWR,LH,F.BLK

14091-0819-6Z

$21.20

14091A

COVER,REAR FENDER,LWR,RH,F.BLK

14091-0820-6Z

$21.20

35019

FLAP,RR,LH

35019-0066

$91.34

35019A

FLAP,RR,RH

35019-0067

$91.34

35063

STAY,RR,LH

35063-0451

$49.35

35063A

STAY,RR,RH

35063-0452

$49.35

92009

SCREW,6X16

92009-1621

Unavailable

92039

RIVET

92039-0776

$0.80

92143

COLLAR

92143-1087

$2.98

92172

SCREW,TAPPING,6X20

92172-0488

$2.11

92210

NUT,LEAF SPRING,6MM

92210-0624

$1.66

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,6X20

130BA0620

$1.28
