Partiron

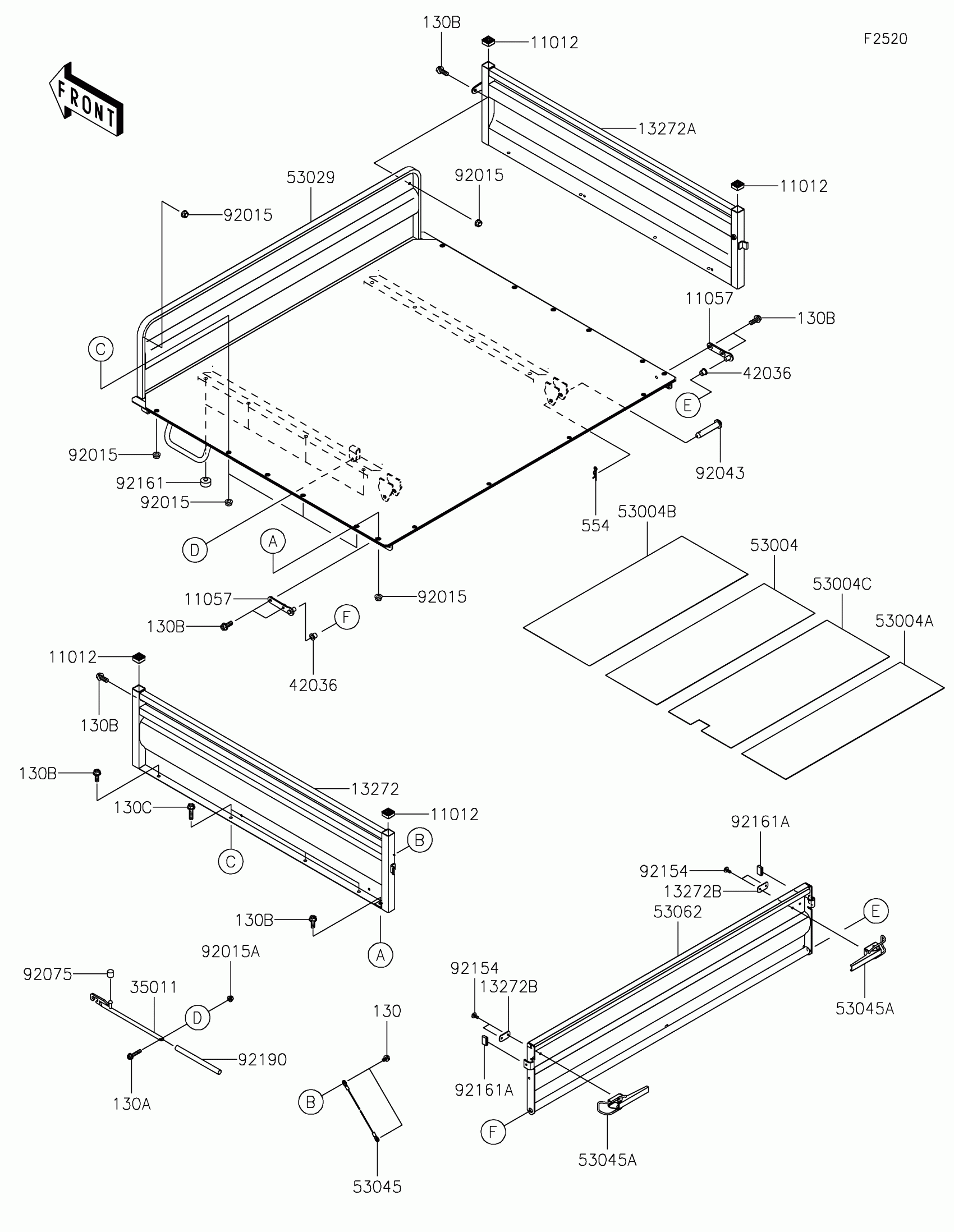

Kawasaki MULE™ 4010 4x4 FE Carrier(s) Diagram

#

Description
Price

11012

CAP

11012-1784

$4.74

11057

BRACKET,TAIL GATE

11057-1623

$9.25

13272

PLATE,SIDE,LH,BLACK

13272-2891-10

$234.95

13272A

PLATE,SIDE,RH,BLACK

13272-2892-10

$234.95

13272B

PLATE

13272-7516

$7.25

35011

STAY,CARRIER STOPPER

35011-1648

$29.46

42036

SLEEVE

42036-0839

$1.96

53004

MAT,CARRIER

53004-0639

$115.64

53004A

MAT,CARRIER

53004-0640

$115.64

53004B

MAT,CARRIER

53004-0642

$115.80

53004C

MAT,CARRIER

53004-0643

$115.80

53029

CARRIER,BASE PLATE,T.BLACK

53029-0365-388

$1,025.15

53045

HOOK-ASSY,CABLE

53045-0030

$24.61

53045A

HOOK-ASSY

53045-0033

$21.71

53062

GATE-TAIL,BLACK

53062-0028-10

$405.72

92015

NUT,FLANGED,8MM

92015-1014

$0.57

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92043

PIN,12X65

92043-1428

$7.69

92075

DAMPER

92075-1817

$4.67

92154

BOLT,SOCKET,6X14

92154-4238

$2.19

92161

DAMPER

92161-7510

$3.32

92161A

DAMPER

92161-7519

$2.68

92190

TUBE,13X16X200

92190-1401

$4.63

130

BOLT-FLANGED,6X10

130BA0610

$0.97

130A

BOLT-FLANGED,6X30

130BA0630

$1.13

130B

BOLT-FLANGED,8X20

130BA0820

$3.04

130C

BOLT-FLANGED,8X30

130BA0830

$1.44

554

PIN-SNAP,12MM

554DA1200

$2.63
