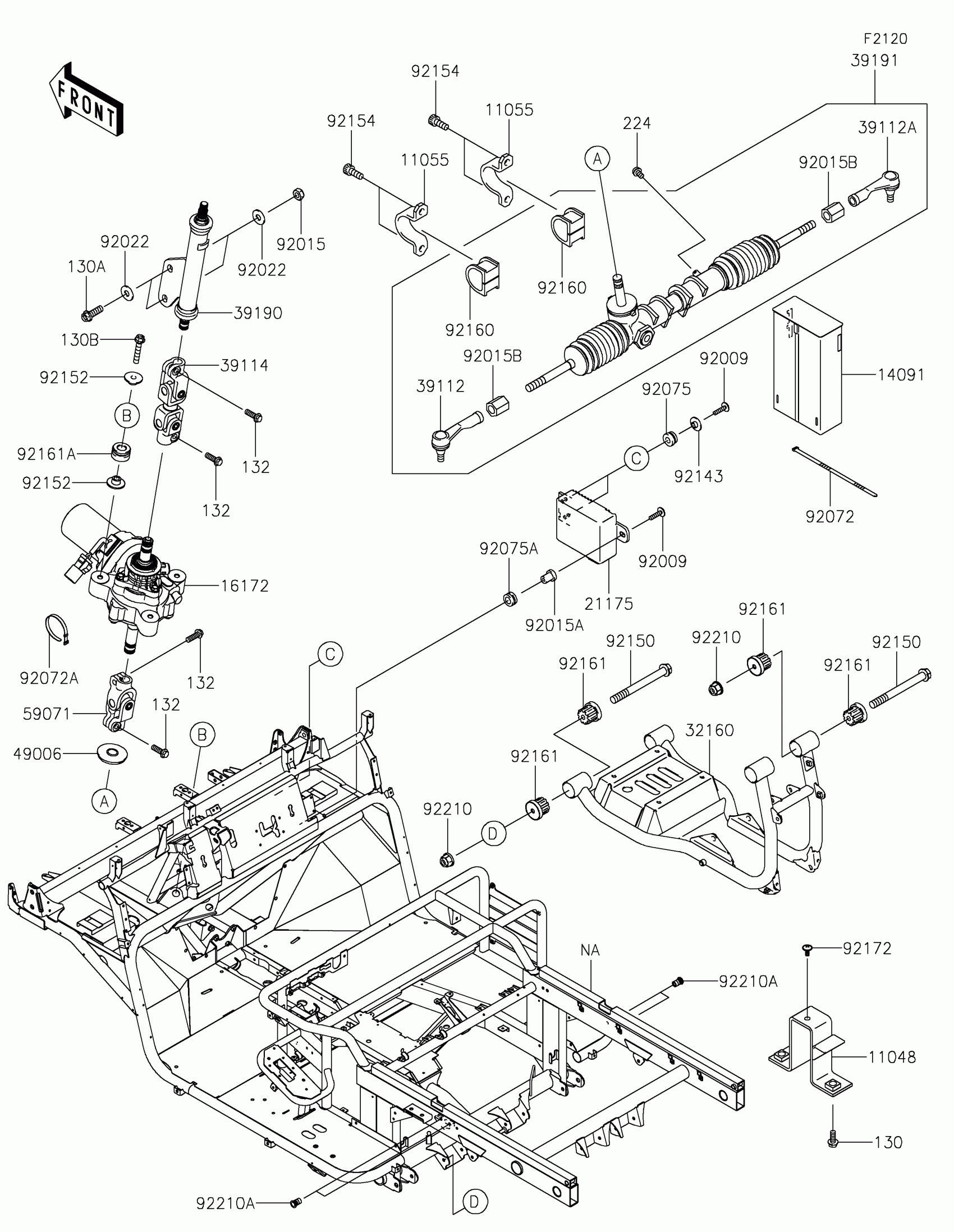

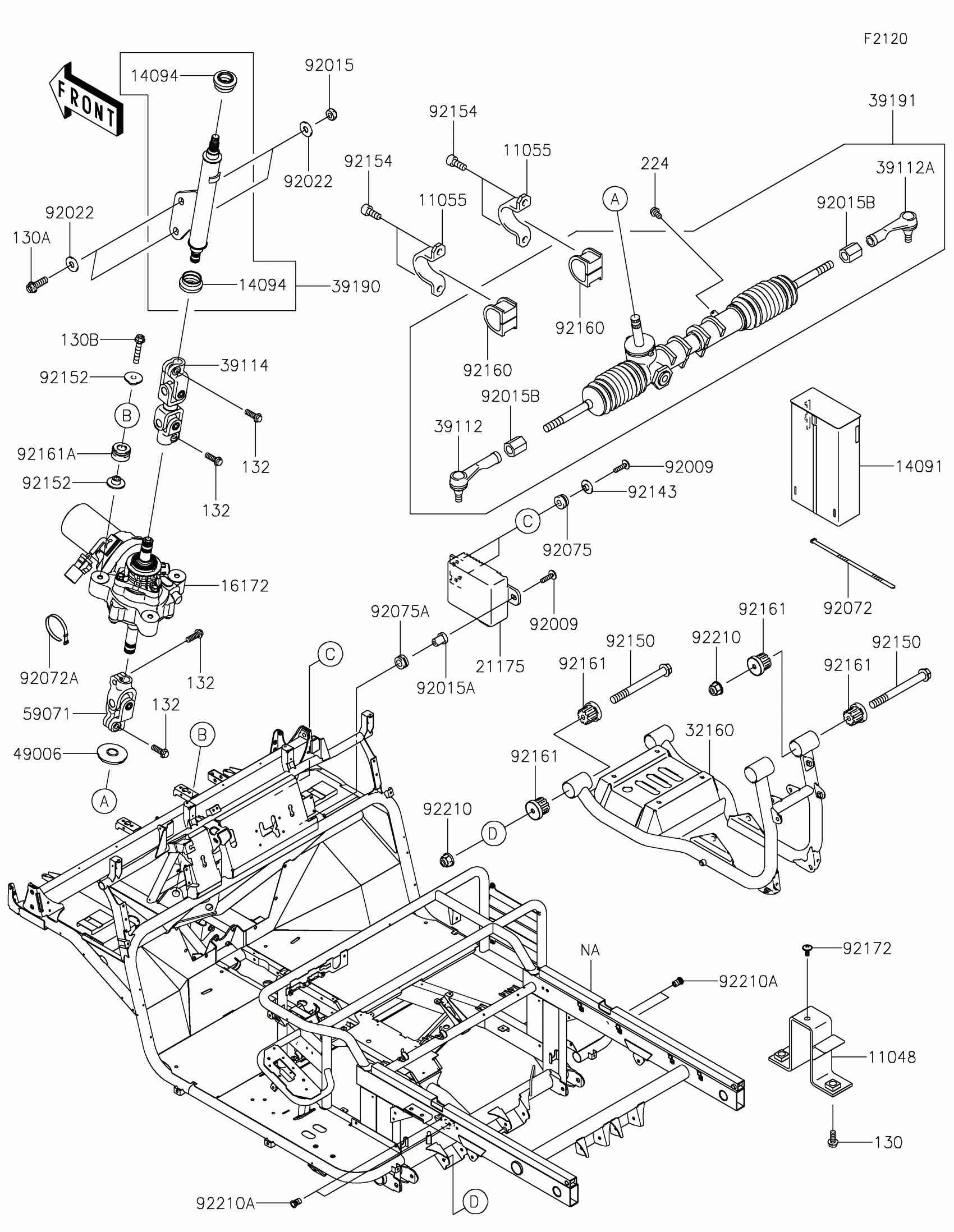

Kawasaki MULE™ 4010 4x4 FE Frame Diagram

#

Description
Price

11048

BRACKET,REAR FRAME

11048-1245

$24.44

11055

BRACKET,STEERING GEAR

11055-1240

$8.07

14091

COVER,ECU

14091-7560

$47.25

16172

ACTUATOR

16172-0028

$1,766.77

21175

CONTROL UNIT-ELECTRONIC,E.P.S

21175-7501

$820.03

32160

FRAME-COMP,RR

32160-0004

$251.26

39112

RODEND-TIE,STEERING GEAR,LH

39112-1068

$85.03

39112A

RODEND-TIE,STEERING GEAR,RH

39112-1069

$85.03

39114

SHAFT-COMP-STRG

39114-0019

$97.99

39190

SHAFT-ASSY-STEERING

39190-7501

$236.68

39191

GEAR-ASSY-STEERING

39191-0021

$1,037.96

49006

BOOT,STEERING SHAFT,LWR

49006-1255

$35.56

59071

JOINT

59071-7501

$114.63

92009

SCREW,6X28,BLACK

92009-1400

$4.18

92015

NUT,LOCK,10MM,BLACK

92015-1189

$5.61

92015A

NUT,RUBBER,6MM

92015-1692

$5.61

92015B

NUT

92015-1864

$13.66

92022

WASHER,10.5X26X2.3

92022-044

$2.99

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=186

92072-056

$3.81

92075

DAMPER,RUBBER

92075-1123

$3.81

92075A

DAMPER

92075-294

$3.68

92143

COLLAR,L=6.5

92143-1025

$4.67

92150

BOLT,FLANGED,10X100

92150-1731

$16.98

92152

COLLAR,8.5X30X10.6

92152-2149

$4.44

92154

BOLT,SOCKET,10X23

92154-1434

$1.95

92160

DAMPER,STEERING GEAR

92160-1084

$28.70

92161

DAMPER

92161-0800

$9.29

92161A

DAMPER,ACTUATOR

92161-7517

$2.66

92172

SCREW,6X14

92172-0004

$1.98

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

92210A

NUT,POP,6MM,L=15

92210-1397

$4.81

130

BOLT-FLANGED,8X20

130BA0820

$3.04

130A

BOLT-FLANGED,10X30

130BA1030

$3.99

130B

BOLT-FLANGED,8X45

130CA0845

$0.95

132

BOLT-FLANGED-SMALL,8X25

132BA0825

$3.69

224

SCREW-PAN-WP-CROS,5X8

224AA0508

$0.63
