2020 Kawasaki Mule 4000 Trans™ Rear Suspension Diagram

← All diagrams

Find the part on the Rear Suspension diagram for your 2020 Kawasaki Mule 4000 Trans™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

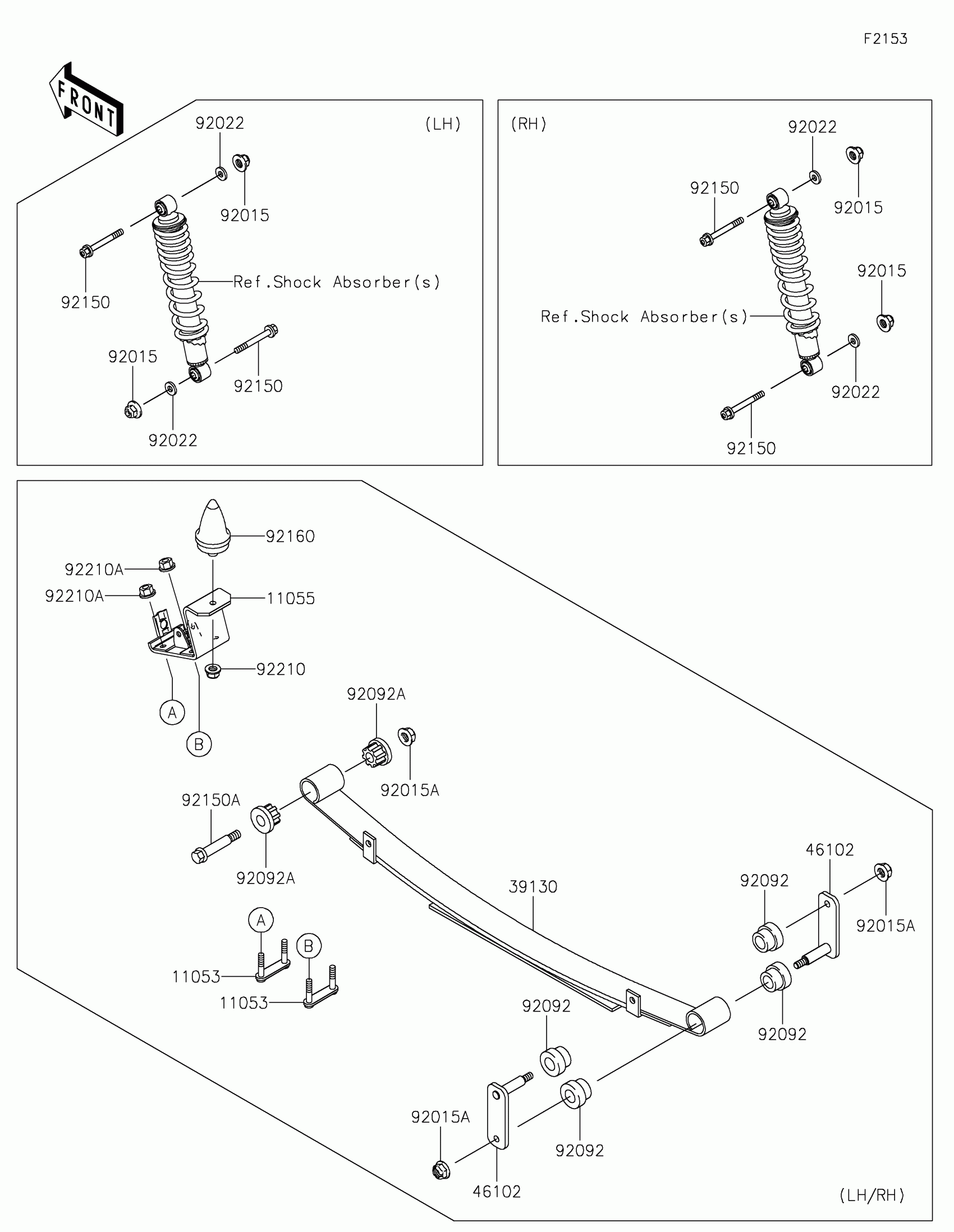

2020 Kawasaki Mule 4000 Trans™ Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET,LEAF SPRING

11053-7564

1

$10.15

In stock

11055

BRACKET,LEAF SPRING

11055-7504

1

$19.88

In stock

39130

SPRING-LEAF

39130-1066

1

$366.86

In stock

46102

ROD,LEAF SPRING,RR

46102-1338

1

$42.53

In stock

92015

NUT,LOCK,10MM

92015-1597

1

$4.37

In stock

92015A

NUT

92015-1706

1

$5.93

In stock

92022

1

$4.05

In stock

92092

BUSHING-RUBBER

92092-1083

1

$6.03

In stock

92092A

BUSHING-RUBBER

92092-1084

1

$23.29

In stock

92150

BOLT,FLANGED,10X57

92150-1227

1

$6.82

In stock

92150A

BOLT,12MM

92150-1284

1

$18.08

In stock

92160

DAMPER,BUMP STOPPER

92160-1136

1

$39.09

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock

92210A

NUT,LOCK,10MM

92210-1204

1
Out of stock
