2020 Kawasaki Mule 4000 Trans™ Control Diagram

← All diagrams

Find the part on the Control diagram for your 2020 Kawasaki Mule 4000 Trans™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

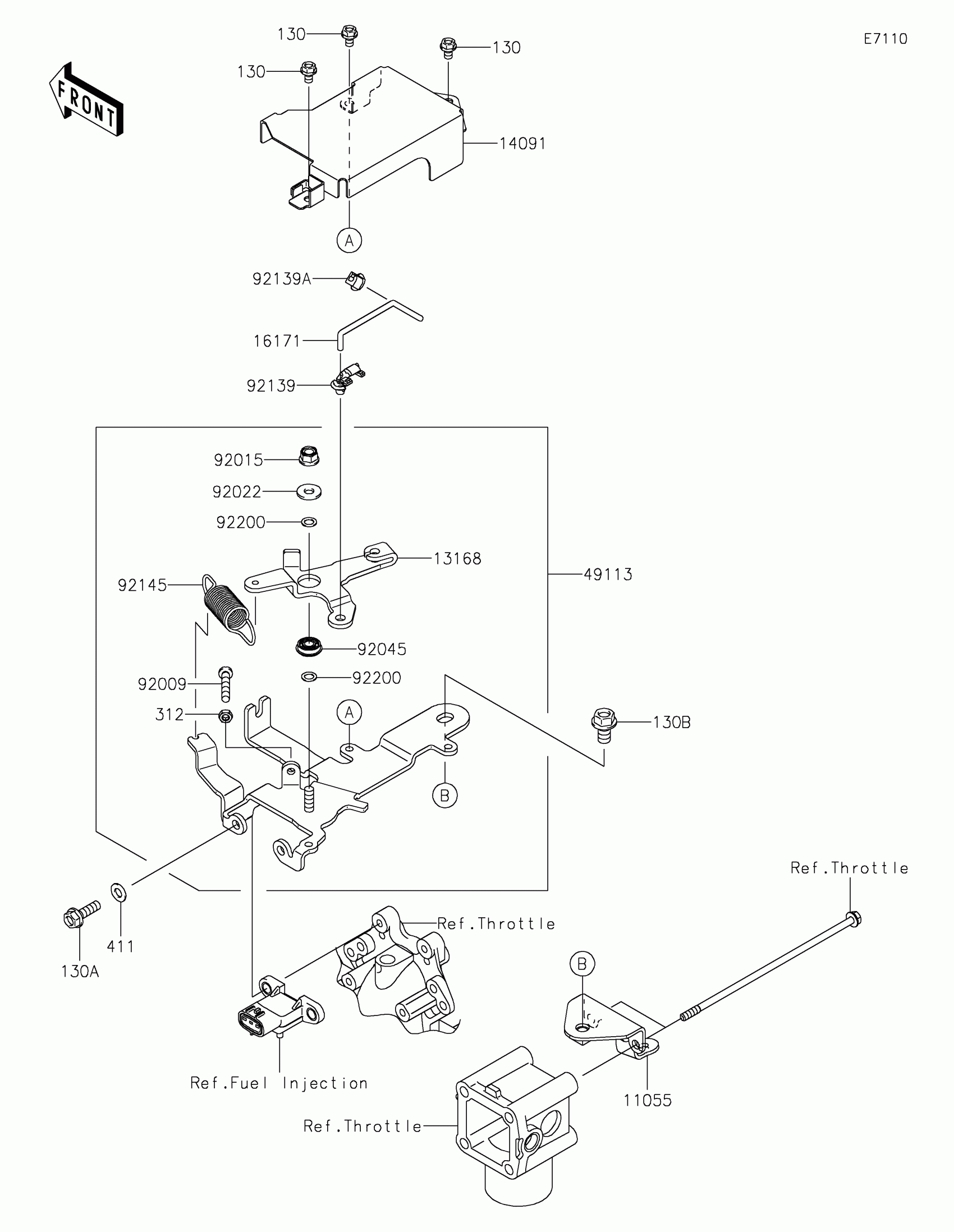

2020 Kawasaki Mule 4000 Trans™ Control Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET

11055-2020

1

$11.17

In stock

13168

LEVER

13168-2509

1

$40.76

In stock

14091

COVER,CONTROL PANEL

14091-1757

1

$21.20

In stock

16171

LINK

16171-2105

1

$3.17

In stock

49113

PANEL-COMP-CONTROL

49113-2211

1

$88.69

In stock

92009

SCREW,5X30

92009-2381

1
Out of stock

92015

1

$1.20

In stock

92022

WASHER

92022-2247

1
Out of stock

92045

1

$7.20

In stock

92139

BUSHING,CONT-PANEL

92139-2060

1

$2.44

In stock

92139A

1

$2.44

In stock

92145

SPRING

92145-2186

1

$2.44

In stock

92200

WASHER,6.2X10X0.5

92200-2083

1
Out of stock

130

BOLT-FLANGED,5X8

130BA0508

1

$1.53

In stock

130A

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock

130B

BOLT-FLANGED,8X14

130BA0814

1

$1.78

In stock

312

NUT-HEX,5MM

312AA0500

1

$0.51

In stock

411

WASHER-PLAIN,6MM

411AB0600

1

$1.08

In stock
