2020 Kawasaki Mule 4000 Trans™ Front Suspension Diagram

← All diagrams

Find the part on the Front Suspension diagram for your 2020 Kawasaki Mule 4000 Trans™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

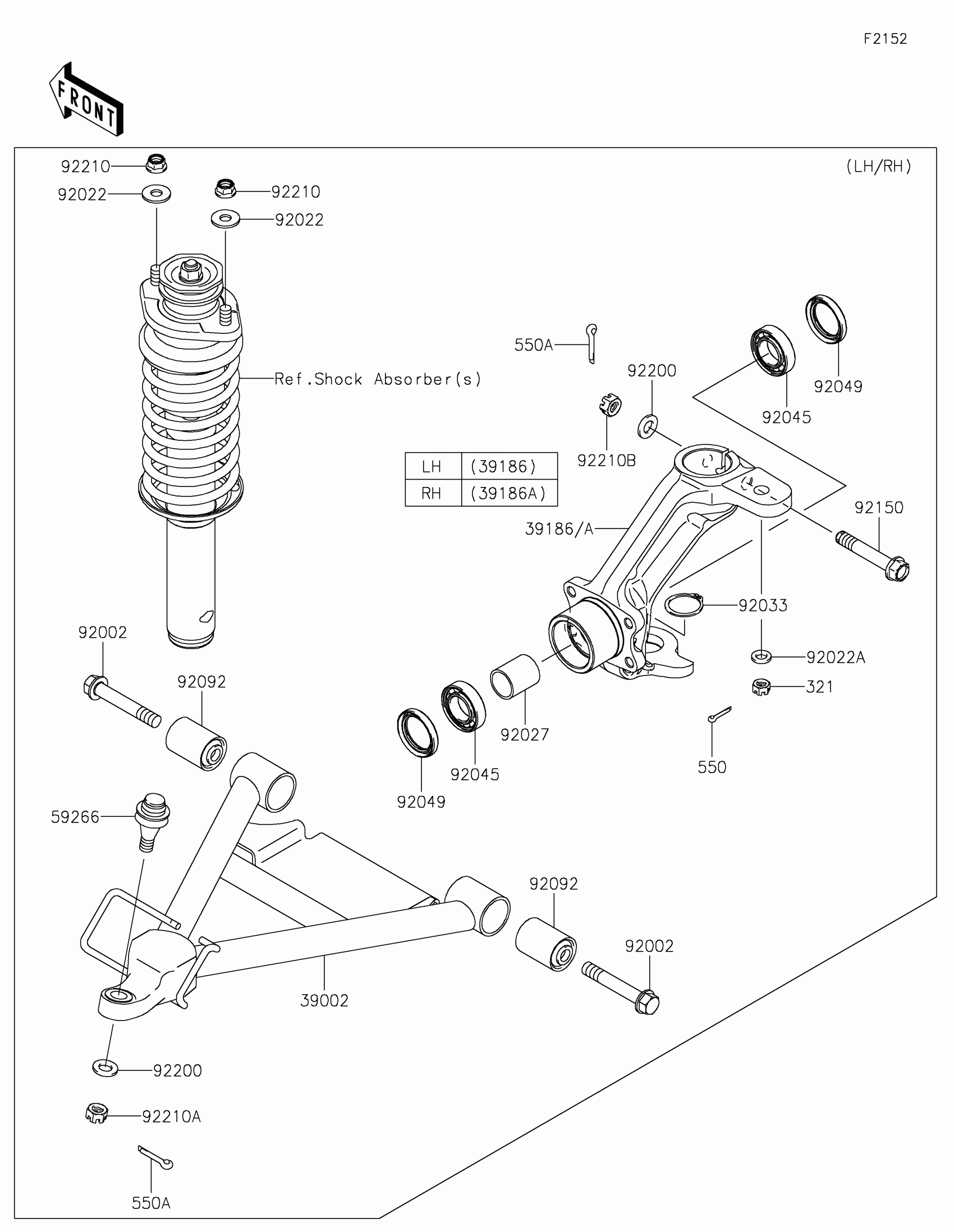

2020 Kawasaki Mule 4000 Trans™ Front Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39002

ARM-COMP-SUSP

39002-0001

1

$182.68

In stock

39186

KNUCKLE,FR,LH

39186-0074

1

$315.43

In stock

39186A

KNUCKLE,FR,RH

39186-0075

1

$315.43

In stock

59266

JOINT-BALL

59266-1080

1

$87.41

In stock

92002

BOLT,FLANGED,12X75

92002-1661

1
Out of stock

92022

WASHER,10.5X26X2.3

92022-044

1

$3.12

In stock

92022A

WASHER,10.5X18X2.5

92022-1876

1
Out of stock

92027

COLLAR,L=34.5

92027-1538

1

$40.81

In stock

92033

1

$5.07

In stock

92045

BEARING-BALL

92045-3707

1

$32.24

In stock

92049

SEAL-OIL,SD35X47X7HS

92049-1513

1
Out of stock

92092

BUSHING-RUBBER

92092-1065

1

$11.88

In stock

92150

BOLT,FLANGED,12X72

92150-1356

1

$10.88

In stock

92200

WASHER,12.3X23X2.3

92200-1004

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock

92210A

NUT,CASTLE,12MM

92210-0395

1
Out of stock

92210B

NUT,12MM

92210-7501

1
Out of stock

321

NUT-CASTLE

321BA1000

1

$5.21

In stock

550

PIN-COTTER,2.0X22

550AA2022

1

$2.08

In stock

550A

PIN-COTTER,3.0X25

550AA3025

1

$0.67

In stock
