2020 Kawasaki Mule 4000 Trans™ Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2020 Kawasaki Mule 4000 Trans™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

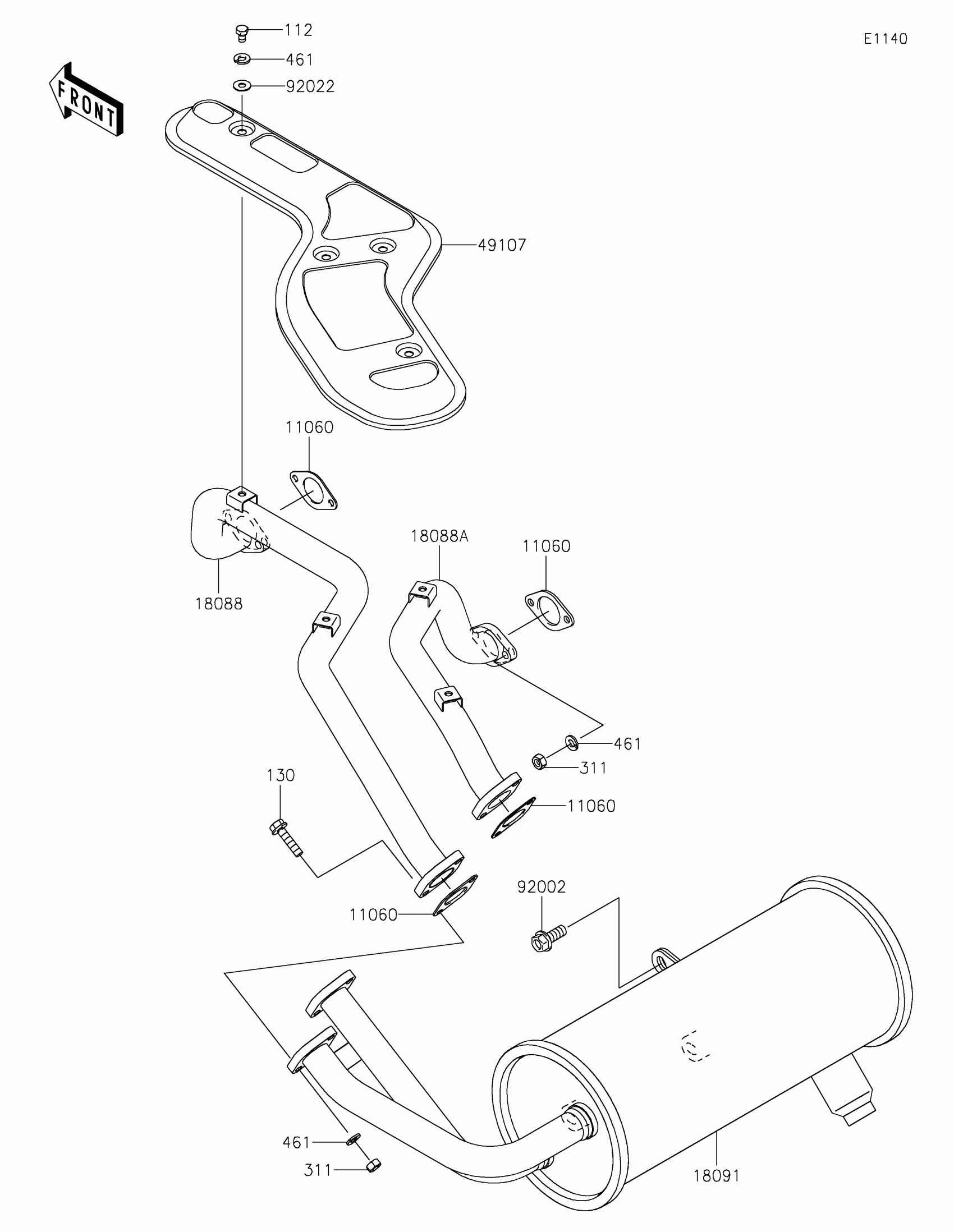

2020 Kawasaki Mule 4000 Trans™ Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,EXHAUST PIPE

11060-2079

1

$3.87

In stock

18088

PIPE-EXHAUST,FR

18088-0518

1

$87.93

In stock

18088A

PIPE-EXHAUST,RR

18088-0519

1

$63.12

In stock

18091

BODY-COMP-MUFFLER

18091-1104

1

$198.40

In stock

49107

COVER-EXHAUST PIPE

49107-1211

1

$44.46

In stock

92002

BOLT,8X20

92002-1250

1

$4.47

In stock

92022

WASHER,6.5X16X1.0

92022-1093

1

$1.73

In stock

112

BOLT-UPSET,6X10

112BB0610

1

$1.51

In stock

130

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock

311

NUT-HEX,6MM

311BA0600

1

$1.64

In stock

461

WASHER-SPRING,6MM

461DA0600

1

$0.68

In stock
← Engine Mount Oil Pump/oil Filter →

More Engine diagrams

Need Help Finding the Right Part?

Not sure it fits? Ask before you order — our team will check the part for your machine.

For a faster answer, include:

Year, make and model of your machine

VIN or frame / serial number

OEM part number or a photo of the old part
