2020 Kawasaki Mule 4000 Trans™ Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2020 Kawasaki Mule 4000 Trans™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

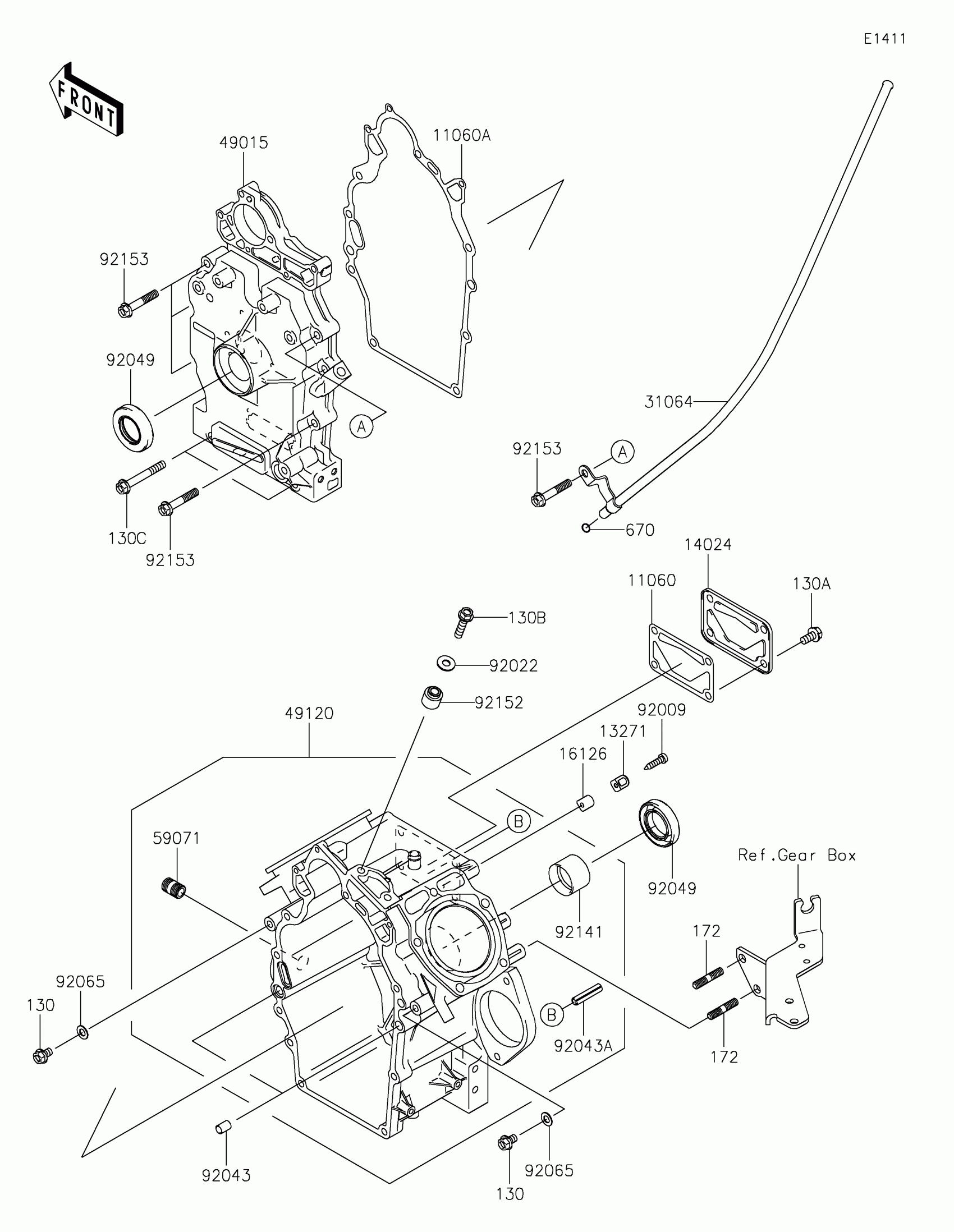

2020 Kawasaki Mule 4000 Trans™ Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

1

$2.64

In stock

11060A

1

$18.17

In stock

13271

PLATE

13271-2054

1

$1.63

In stock

14024

COVER

14024-2292

1
Out of stock

16126

VALVE

16126-2146

1

$0.68

In stock

31064

PIPE-COMP

31064-0702

1

$27.49

In stock

49015

COVER-CRANKCASE

49015-6324

1

$534.73

In stock

49120

CRANKCASE-COMP

49120-0847

1

$1,151.78

In stock

59071

JOINT

59071-0733

1

$2.00

In stock

92009

SCREW

92009-2308

1
Out of stock

92022

WASHER,8.5X20X1.6

92022-1561

1

$3.43

In stock

92043

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

92043A

PIN,2X25

92043-2227

1

$0.73

In stock

92049

SEAL-OIL

92049-2112

1
Out of stock

92065

GASKET,8.5X16X1

92065-023

1

$2.74

In stock

92141

BEARING-PLANE

92141-2122

1

$5.66

In stock

92152

COLLAR

92152-1901

1
Out of stock

92153

BOLT,FLANGED,8X45

92153-2130

1

$1.49

In stock

130

BOLT-FLANGED,8X12

130AB0812

1

$0.76

In stock

130A

BOLT-FLANGED,8X16

130BA0816

1

$1.03

In stock

130B

BOLT-FLANGED,8X35

130BA0835

1

$1.31

In stock

130C

BOLT-FLANGED,8X60

130CA0860

1

$1.49

In stock

172

BOLT-STUD,8X25

172BA0825

1

$2.56

In stock

670

O RING,10MM

670B2010

1

$1.31

In stock
