2020 Kawasaki Mule 4000 Trans™ Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2020 Kawasaki Mule 4000 Trans™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

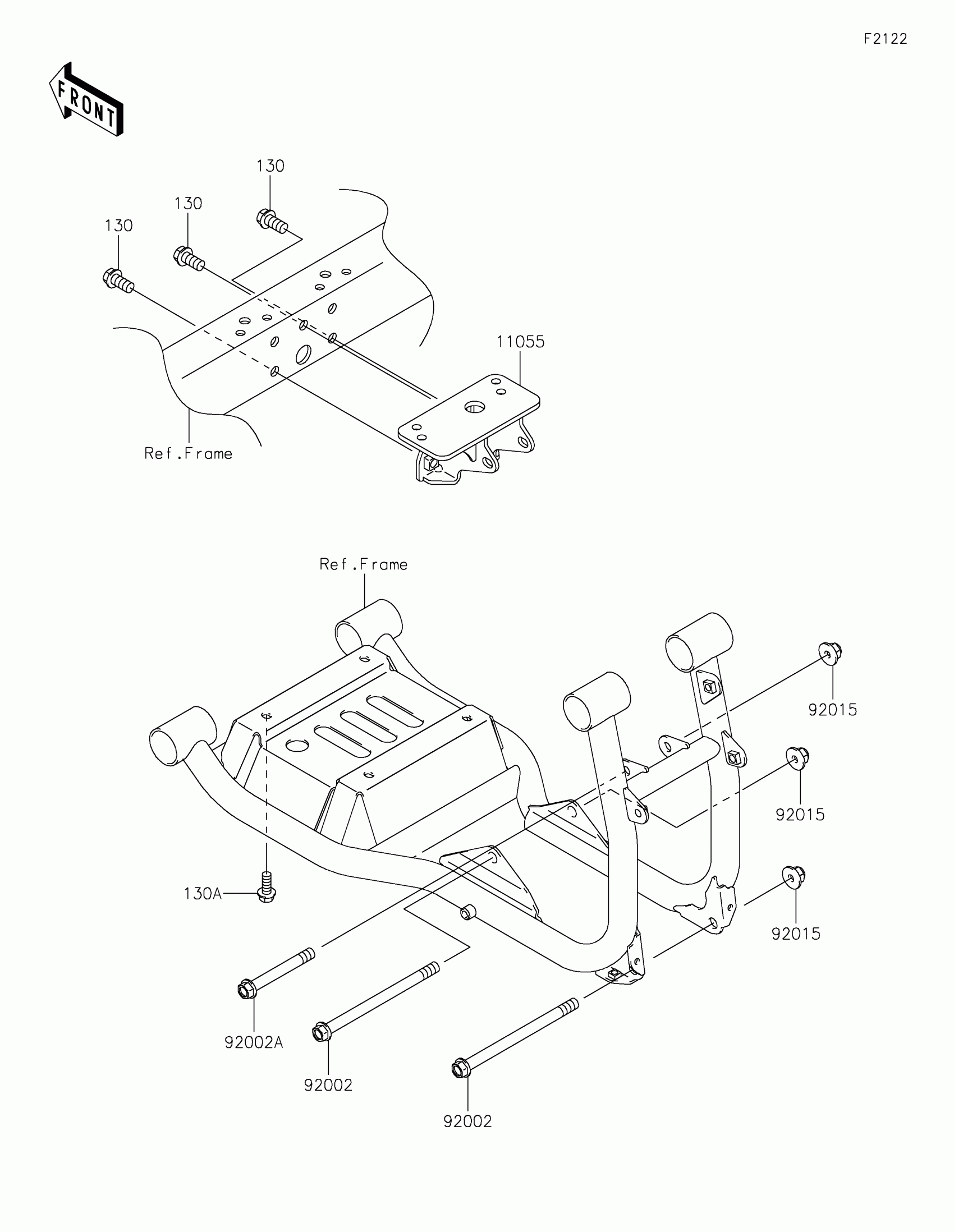

2020 Kawasaki Mule 4000 Trans™ Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET,FRONT GEAR CASE

11055-1469

1
Out of stock

92002

BOLT,10X145

92002-1348

1

$17.39

In stock

92002A

BOLT,FLANGED,10X80

92002-1764

1
Out of stock

92015

NUT,LOCK,10MM

92015-1597

1

$4.37

In stock

130

BOLT-FLANGED,10X20

130BA1020

1

$2.68

In stock

130A

BOLT-FLANGED,8X20

130CA0820

1

$1.47

In stock
