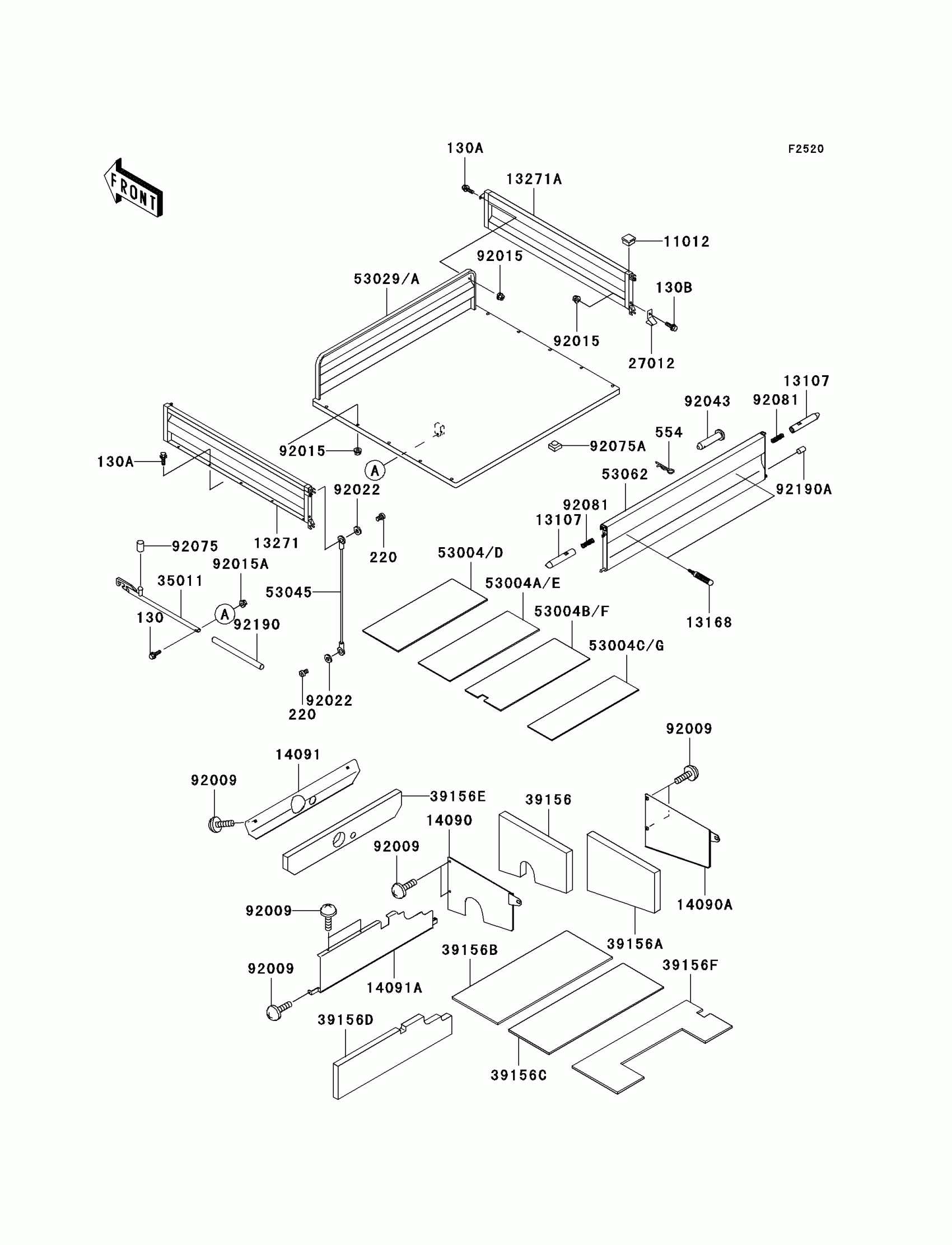

Find the part on the Carrier diagram for your 2007 Kawasaki Mule 3020 Turf, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 3020 Turf Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1784

1

$5.00

In stock

13107

SHAFT

13107-1453

1
Out of stock

13168

LEVER

13168-1695

1
Out of stock

13271

1

$230.13

In stock

13271A

1

$260.84

In stock

14090

COVER,ENCLOSURE,LH

14090-1260

1

$58.06

In stock

14090A

COVER,ENCLOSURE,RH

14090-1261

1

$58.06

In stock

14091

COVER,SEAT BACK

14091-1237

1

$136.21

In stock

14091A

COVER,SEAT UNDER

14091-1359

1

$87.52

In stock

27012

HOOK,TAIL GATE

27012-1406

1

$5.09

In stock

35011

1

$29.46

In stock

39156

1

$52.96

In stock

39156A

1

$52.96

In stock

39156B

PAD,CARRIER,FR

39156-1304

1

$73.34

In stock

39156C

PAD,CARRIER,CNT

39156-1305

1

$68.68

In stock

39156D

PAD,SEAT UNDER

39156-1678

1

$86.46

In stock

39156E

PAD,SEAT BACK

39156-1679

1

$61.80

In stock

39156F

PAD,CARRIER,RR

39156-1680

1

$89.63

In stock

53004

MAT

53004-1152

1
Out of stock

53004A

MAT

53004-1153

1

$135.58

In stock

53004B

MAT

53004-1154

1
Out of stock

53004C

MAT

53004-1155

1

$109.29

In stock

53029

CARRIER,H.GREEN

53029-1226-B9

1
Out of stock

53045

HOOK-ASSY,TAIL GATE

53045-1065

1

$31.00

In stock

53062

GATE-TAIL,H.GREEN

53062-1006-B9

1
Out of stock

92009

SCREW,6X16

92009-1621

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1408

1

$4.27

In stock

92015A

1

$3.43

In stock

92022

WASHER,7X18X1.2

92022-1545

1

$0.97

In stock

92043

PIN,12X65

92043-1428

1

$8.01

In stock

92075

DAMPER

92075-1817

1

$4.93

In stock

92075A

DAMPER

92075-1882

1

$6.44

In stock

92081

SPRING

92081-3703

1

$4.08

In stock

92190

TUBE,13X16X200

92190-1401

1

$4.63

In stock

92190A

TUBE,8X10X15

92190-1467

1

$3.51

In stock

130

BOLT-FLANGED,6X30

130H0630

1
Out of stock

130A

BOLT-FLANGED,8X20

130J0820

1
Out of stock

130B

BOLT-FLANGED,8X50

130J0850

1
Out of stock

220

1

$1.54

In stock

554

PIN-SNAP,12MM

554A1200

1
Out of stock
