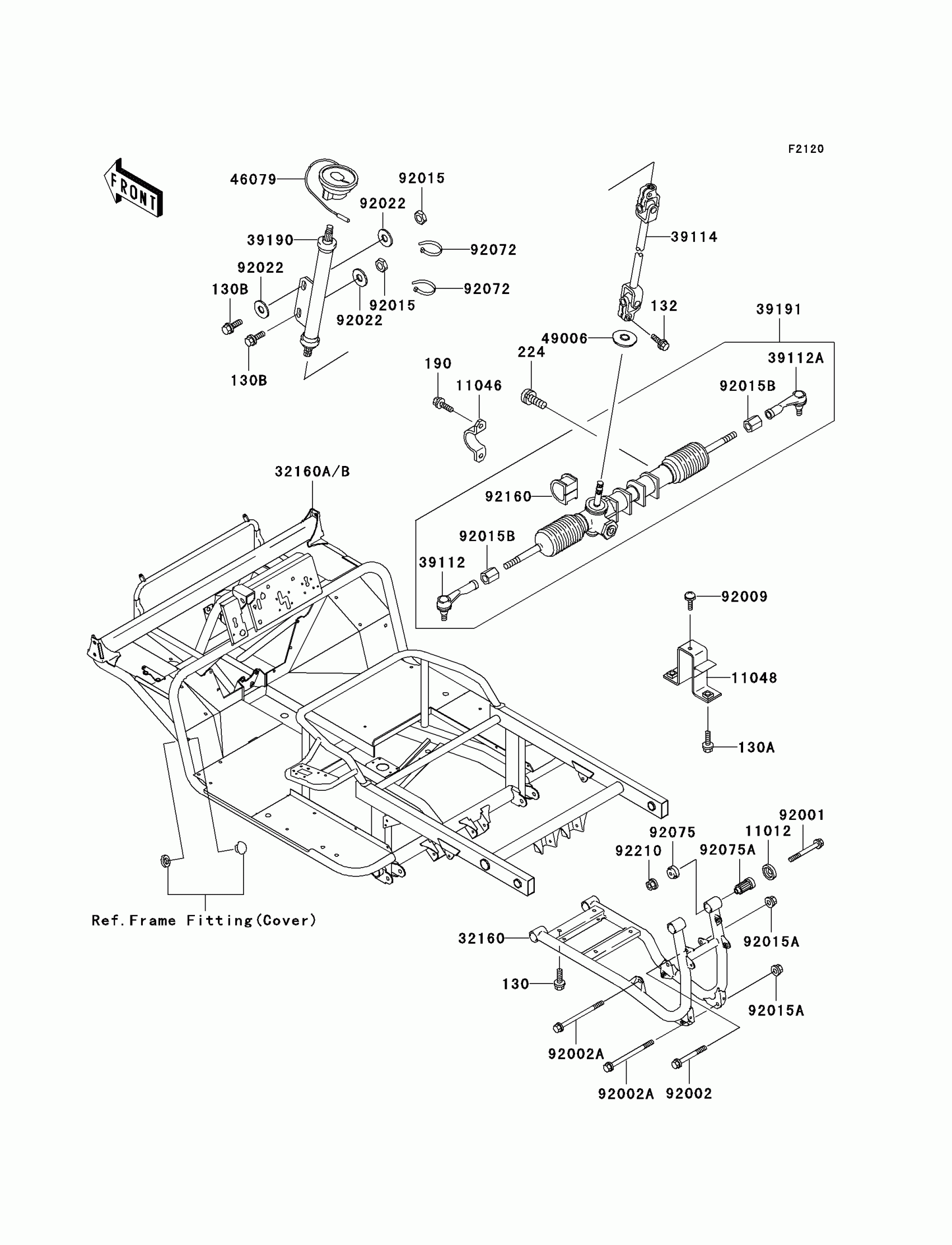

Kawasaki Mule 3020 Turf Frame Diagram

#

Description
Price

130

BOLT-FLANGED,8X20

130H0820

Unavailable

130A

BOLT-FLANGED,8X20

130J0820

Unavailable

130B

BOLT-FLANGED,10X30

130J1030

Unavailable

132

BOLT-FLANGED-SMALL,8X25

132J0825

Unavailable

190

BOLT-UPSET-WS

190H1025

Unavailable

224

SCREW-PAN-WP-CROS

224B0508

Unavailable

11012

CAP,ENGINE BRACKET

11012-1228

$7.49

11046

BRACKET,STEERING GEAR

11046-1858

Unavailable

11048

BRACKET,REAR FRAME

11048-1245

$24.44

32160

FRAME-COMP,RR

32160-1265

$255.06

32160A

Not Available For This Vehicle | Includes 7 to 14

n/a

Unavailable

39112

RODEND-TIE,STEERING GEAR,LH

39112-1068

$85.03

39112A

RODEND-TIE,STEERING GEAR,RH

39112-1069

$85.03

39114

SHAFT-COMP-STRG

39114-1070

$326.29

39190

SHAFT-ASSY-STEERING

39190-1006

$236.68

39191

GEAR-ASSY-STEERING

39191-1007

$1,037.96

46079

CONTACT,HORN SWITCH

46079-1063

$88.38

49006

BOOT,STEERING SHAFT,LWR

49006-1255

$35.56

92001

BOLT,FLANGED,10X85

92001-1619

$8.25

92002

BOLT,FLANGED,10X80

92002-1764

$7.36

92002A

BOLT,FLANGED,10X145

92002-1765

$10.92

92009

SCREW,6X14

92009-1288

$2.99

92015

NUT,LOCK,10MM,BLACK

92015-1189

$5.61

92015A

NUT,LOCK,10MM

92015-1597

$4.18

92015B

NUT

92015-1864

$13.66

92022

WASHER,10.5X26X2.3,BLACK

92022-1396

$2.59

92072

BAND,L=188

92072-1239

$1.30

92075

DAMPER,ENGINE MOUNT,SIDE

92075-1274

$16.49

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1377

$31.41

92160

DAMPER,STEERING GEAR

92160-1084

$28.70

92210

NUT,LOCK,FLANGED,10MM

92210-1081

$9.39
