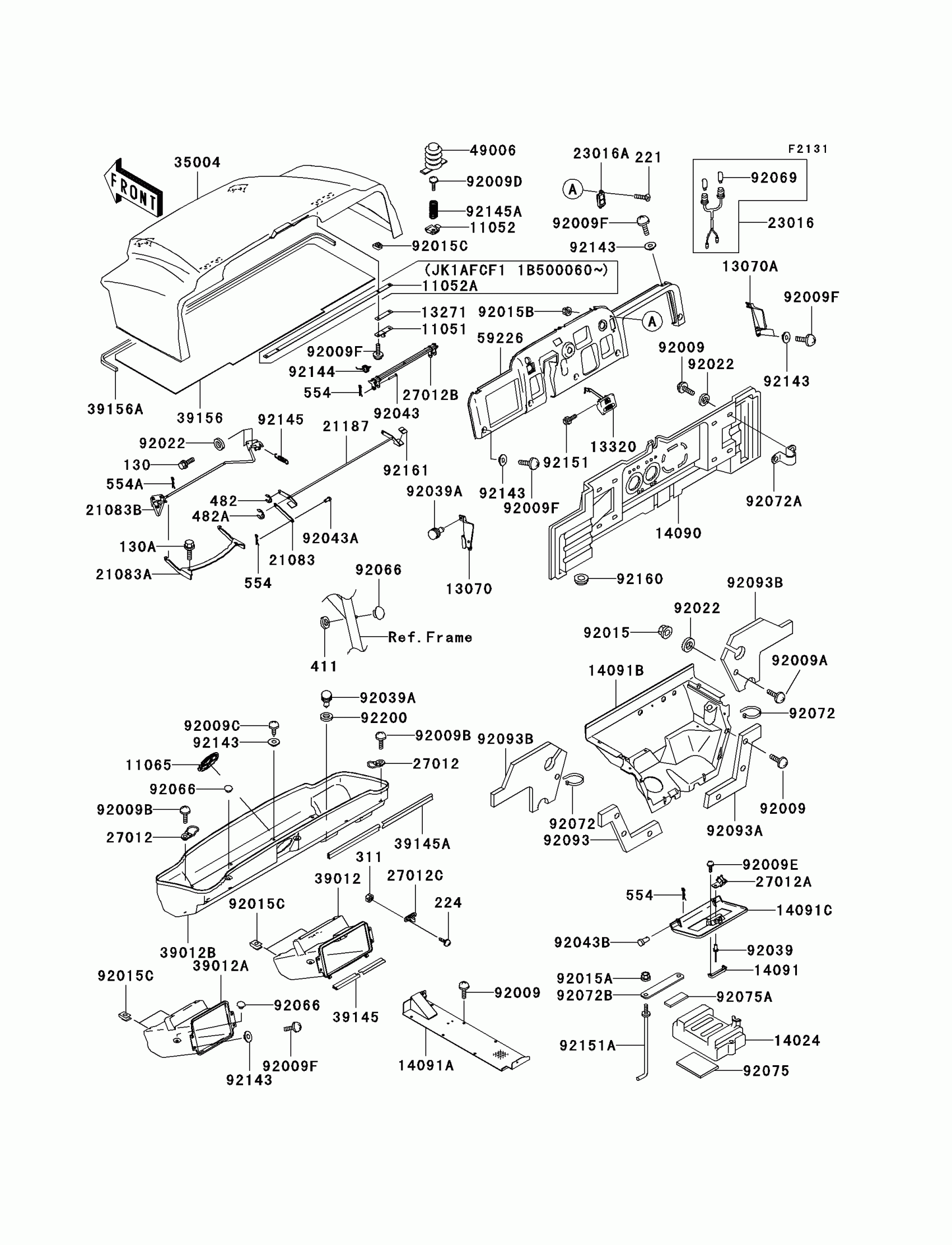

Kawasaki Mule 3020 Turf Frame Fittings(KAF620-F1) Diagram

#

Description
Price

11051

BRACKET

11051-1756

Unavailable

11052

BRACKET

11052-1258

$8.08

11052A

BRACKET

11052-1369

$14.25

11065

CAP,F.BLACK

11065-1053-6Z

$6.40

13070

GUIDE,LH

13070-1367

$28.94

13070A

GUIDE,RH

13070-1368

$28.94

13271

PLATE

13271-1663

Unavailable

13320

LEVER-ASSY

13320-1016

$121.39

14024

COVER,BATTERY

14024-1792

$44.38

14090

COVER,SEAT UNDER

14090-1247

Unavailable

14091

COVER,GRAY

14091-1228-AZ

Unavailable

14091A

COVER,FLOOR,CNT

14091-1250

$112.40

14091B

COVER,FLOOR

14091-1378

$100.23

14091C

COVER,CONTROL PANEL,GRAY

14091-1399-AZ

Unavailable

21083

ARM

21083-1146

$2.14

21083A

ARM

21083-1163

$44.33

21083B

ARM,.

21083-1164

Unavailable

21187

ARM-ASSY

21187-1085

Unavailable

23016

LAMP-ASSY,INDICATOR

23016-1188

$52.86

23016A

LAMP-ASSY

23016-1189

$52.20

27012

HOOK

27012-1577

$13.71

27012A

HOOK

27012-1607

$5.91

27012B

HOOK

27012-1608

$74.09

27012C

HOOK

27012-1612

$2.99

35004

FENDER-FRONT,H.GREEN

35004-1435-6A

$131.49

39012

CASE-STORAGE,RH,GRAY

39012-1061-AZ

$42.98

39012A

CASE-STORAGE,LH,GRAY

39012-1062-AZ

$44.53

39012B

CASE-STORAGE,CNT

39012-1066

$91.22

39145

TRIM-SEAL,L=774

39145-1130

$21.31

39145A

TRIM-SEAL,L=2805

39145-1132

$62.41

39156

PAD

39156-1684

$132.24

39156A

PAD

39156-1685

$17.44

49006

BOOT

49006-1347

$11.31

59226

PANEL-CONTROL,GRAY

59226-1060-AZ

$147.31

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X18,BLACK

92009-1181

$1.98

92009B

SCREW,6X22,BLACK

92009-1256

$1.96

92009C

SCREW,TAPPING,6MM

92009-1261

$2.29

92009D

SCREW,6X14

92009-1288

$2.99

92009E

SCREW,TAPPING,4X12

92009-1444

$2.23

92009F

SCREW,6X16

92009-1621

Unavailable

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED,8X16

130J0816

Unavailable

221

SCREW-CSK-CROS

221C0616

Unavailable

224

SCREW-PAN-WP-CROS,4X12

224C0412

Unavailable

311

NUT-HEX

311C0400

$0.63

411

WASHER

411F1000

Unavailable

482

CIRCLIP-TYPE-E,5MM

482L5000

$1.04

482A

CIRCLIP-TYPE-E

482L7000

$2.99

554

PIN,SNAP

554A0600

Unavailable

554A

PIN-SNAP,8MM

554A0800

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1386

Unavailable

92015A

NUT,FLANGED,8MM

92015-1406

$3.39

92015B

NUT,LOCK,FLANGED,6MM

92015-1603

$3.57

92015C

NUT,CLAMP,6MM

92015-1678

$4.18

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92039

RIVET

92039-1041

$2.76

92039A

RIVET

92039-1229

$0.80

92043

PIN,6X39

92043-1625

$2.03

92043A

PIN,6X9

92043-1626

$1.62

92043B

PIN,6X13

92043-1627

Unavailable

92066

PLUG

92066-1485

$1.74

92069

BULB,12V 3W,T7

92069-1020

Unavailable

92072

BAND,L=365

92072-1197

$7.71

92072A

BAND

92072-1252

$11.41

92072B

BAND,L=159

92072-1399

$3.24

92075

DAMPER

92075-1076

$6.75

92075A

DAMPER

92075-1214

$3.92

92093

SEAL,FRONT FENDER,LH

92093-1293

$9.34

92093A

SEAL,FRONT FENDER,RH

92093-1294

$9.68

92093B

SEAL,LOWER COVER

92093-1295

$21.14

92143

COLLAR

92143-1087

$2.98

92144

SPRING,SEAT HOOK

92144-1174

$5.92

92145

SPRING

92145-1335

Unavailable

92145A

SPRING

92145-1402

$4.07

92151

BOLT,FLANGED,5X12

92151-1305

$1.20

92151A

BOLT,BATTERY

92151-1897

$5.02

92160

DAMPER

92160-1148

$4.08

92161

DAMPER

92161-1197

$4.56

92200

WASHER,8.5X26X0.8

92200-1567

$2.00
