2007 Kawasaki Mule 3010 Trans4x4 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2007 Kawasaki Mule 3010 Trans4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

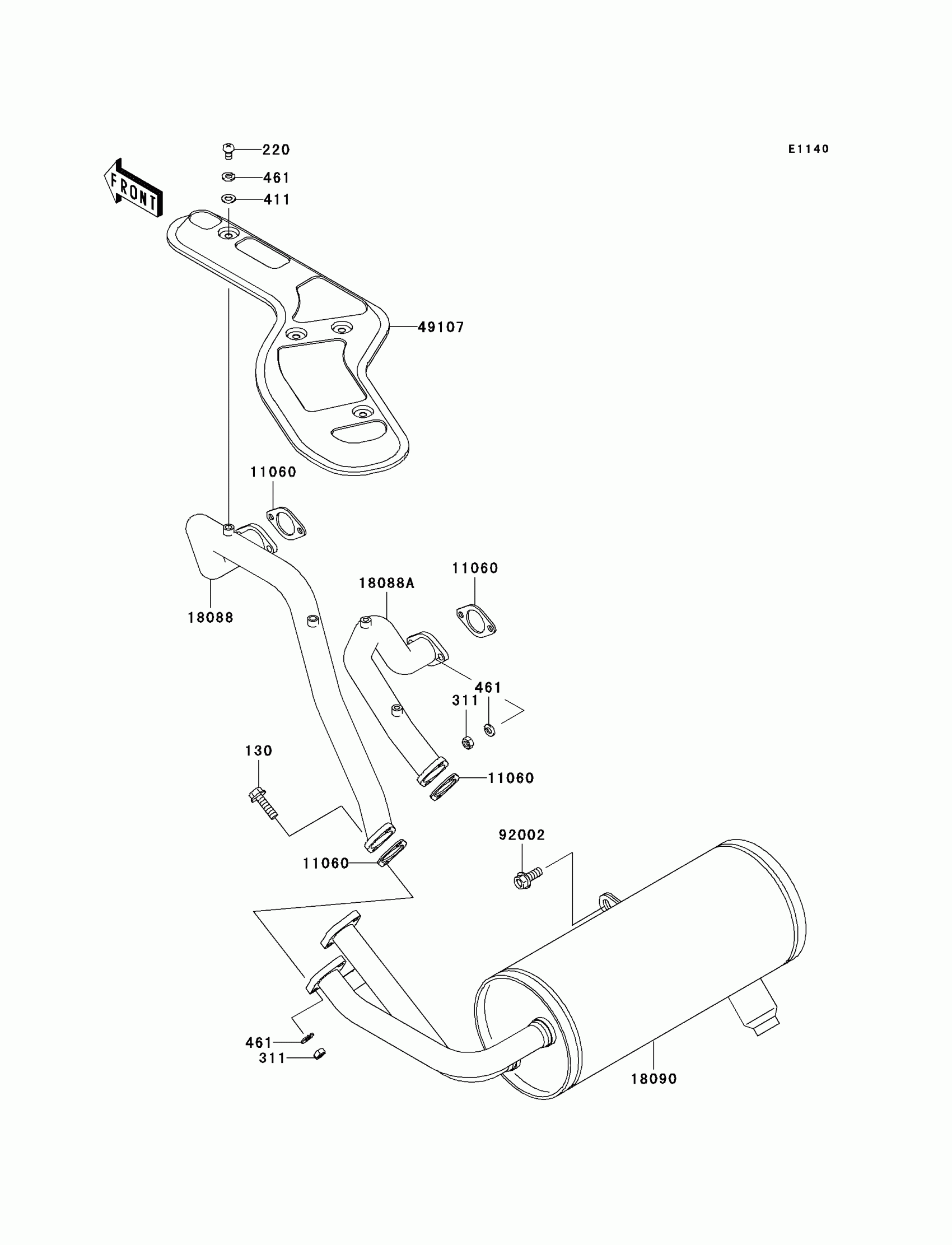

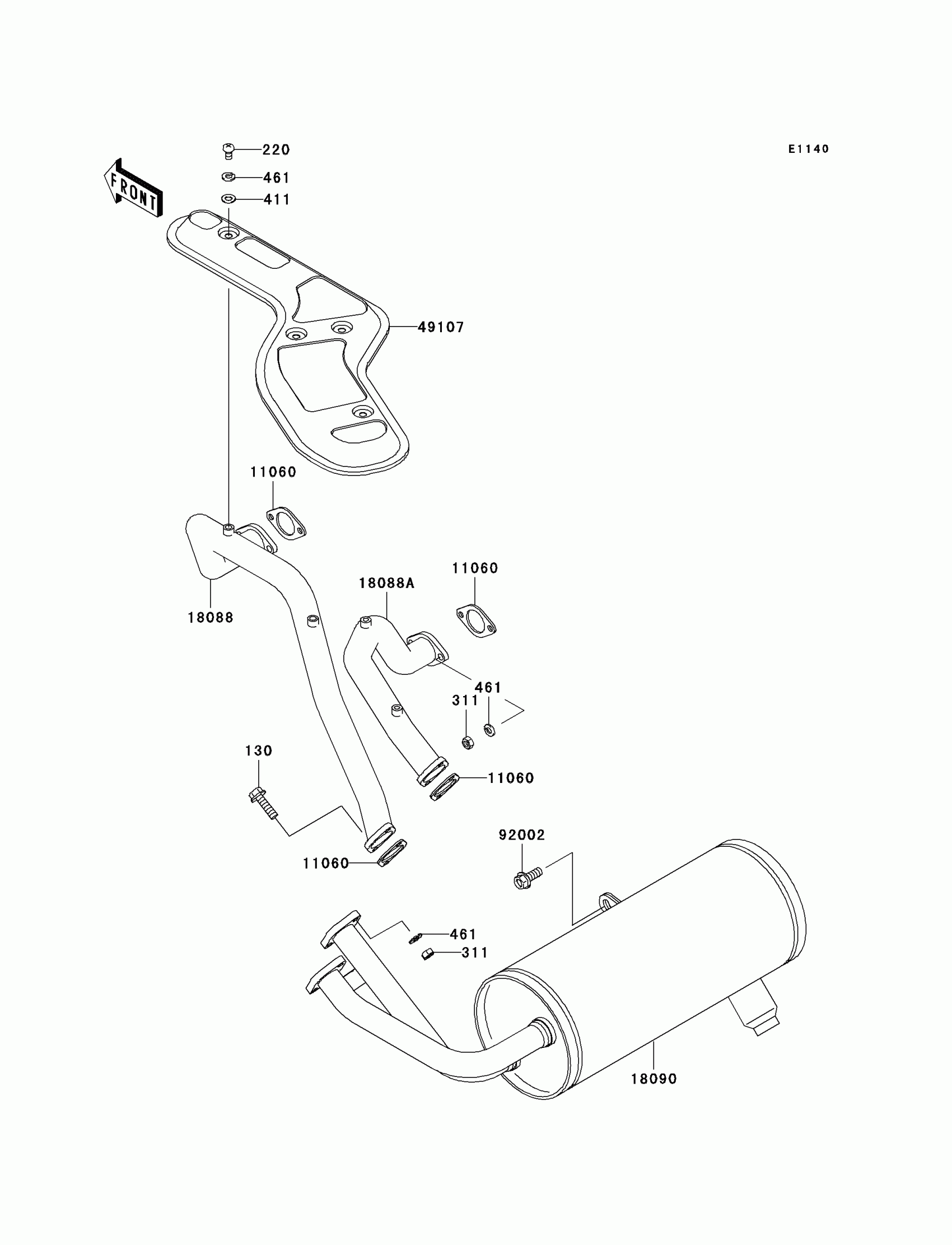

2007 Kawasaki Mule 3010 Trans4x4 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT,FLANGED,6X25

130G0625

1
Out of stock

220

SCREW-PAN-CROSS,6X10

220F0610

1
Out of stock

311

NUT-HEX,6MM

311G0600

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

11060

GASKET,EXHAUST PIPE

11060-2079

1
Out of stock

18088

PIPE-EXHAUST,FR

18088-1155

1
Out of stock

18088A

PIPE-EXHAUST,RR

18088-1156

1
Out of stock

18090

BODY-COMP-MUFFLER

18090-1912

1
Out of stock

49107

COVER-EXHAUST PIPE

49107-1211

1
Out of stock

92002

BOLT,8X20

92002-1250

1
Out of stock
