Partiron

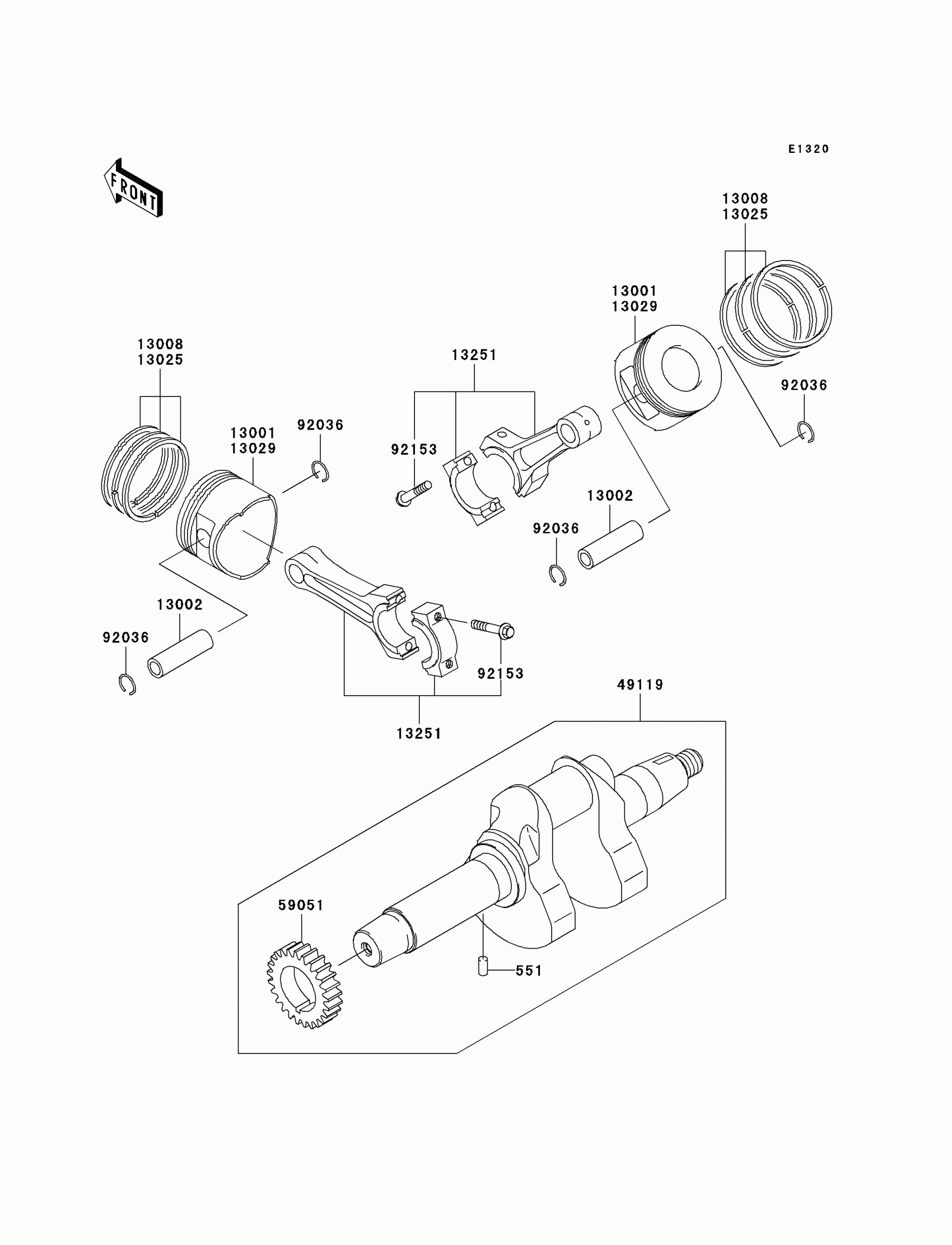

Kawasaki Mule 3010 Trans4x4 Crankshaft/Piston(s) Diagram

#

Description
Price

551

PIN-DOWEL,4X8

551A0408

$1.49

13001

PISTON-ENGINE,STD

13001-2131

Unavailable

13002

PIN-PISTON

13002-1013

$6.66

13008

RING-SET-PISTON,STD

13008-6025

$36.70

13025

RING-SET-PISTON L,0.50

13025-6008

Unavailable

13029

PISTON-ENGINE L,0.50

13029-2105

Unavailable

13251

ROD-ASSY-CONNECTING

13251-6068

Unavailable

49119

CRANKSHAFT-ASSY

49119-2200

$517.00

59051

GEAR-SPUR

59051-2112

$35.63

92036

CIRCLIP,PISTON PIN

92036-021

$1.49

92153

BOLT,7X35.2

92153-2054

$1.71
