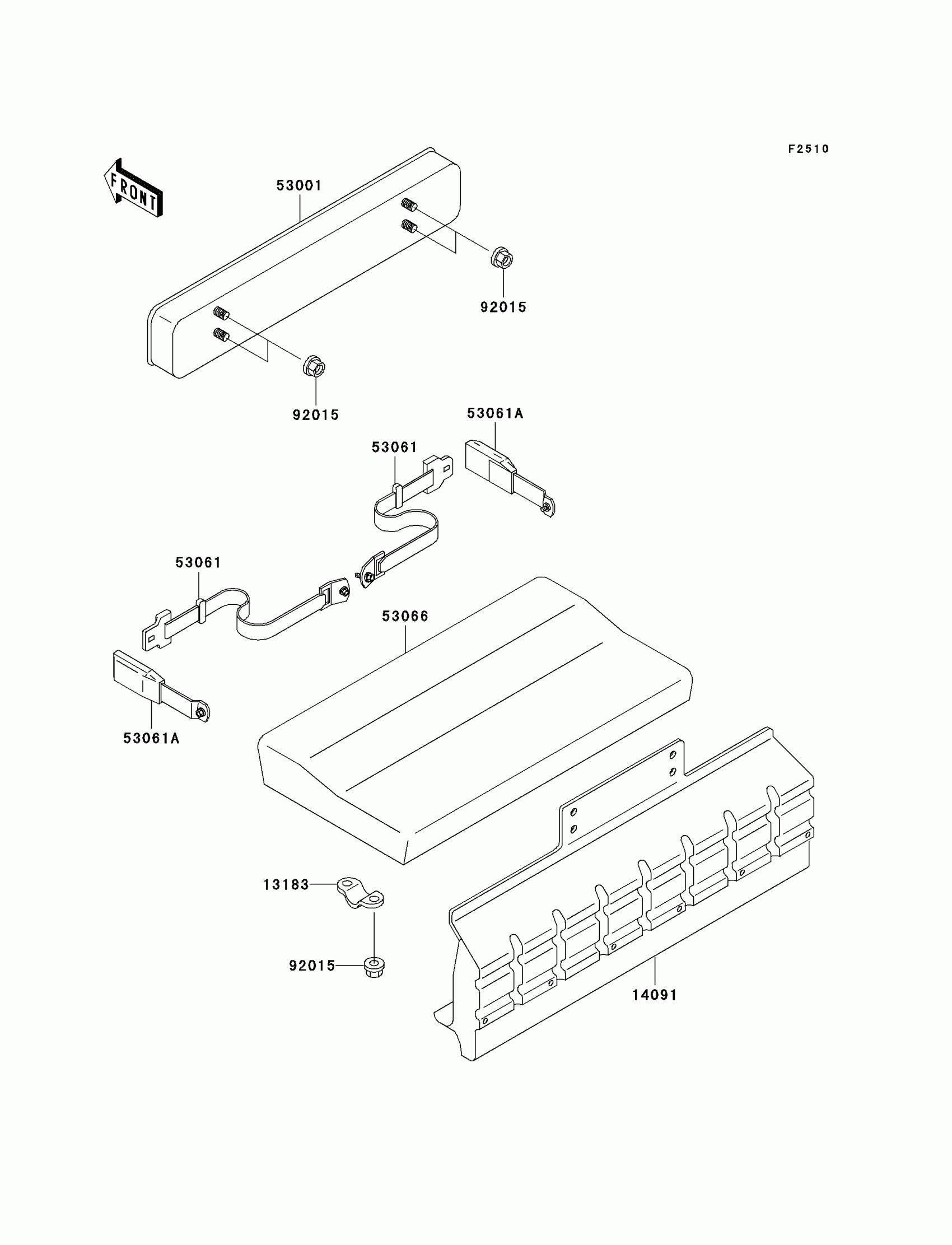

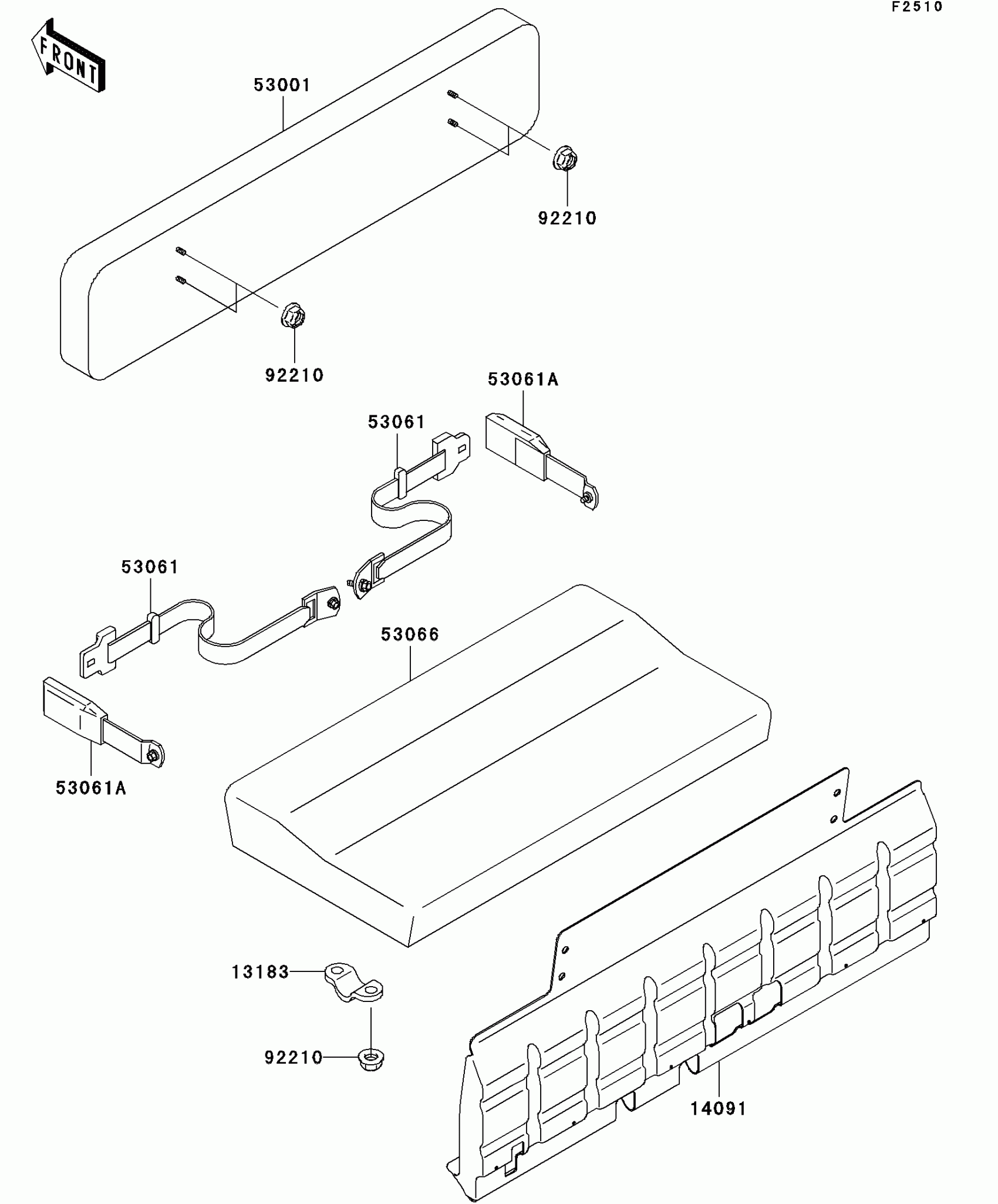

Kawasaki Mule 3010 Diesel 4X4 Seat Diagram

#

Description
Price

13183

PLATE,SEAT

13183-1400

$5.74

14091

COVER,SEAT,BACK

14091-1155

$151.26

53001

SEAT-ASSY,BACK,GRAY

53001-1584-PA

$584.24

53061

BELT-SEAT,CATCH PLATE

53061-1013

$87.48

53061A

BELT-SEAT,BUCKLE

53061-1014

$74.84

53066

SEAT-ASSY,CUSHION,GRAY

53066-7501-PA

$576.80

92015

NUT,FLANGED,LOCK,8MM

92015-1696

$3.55
