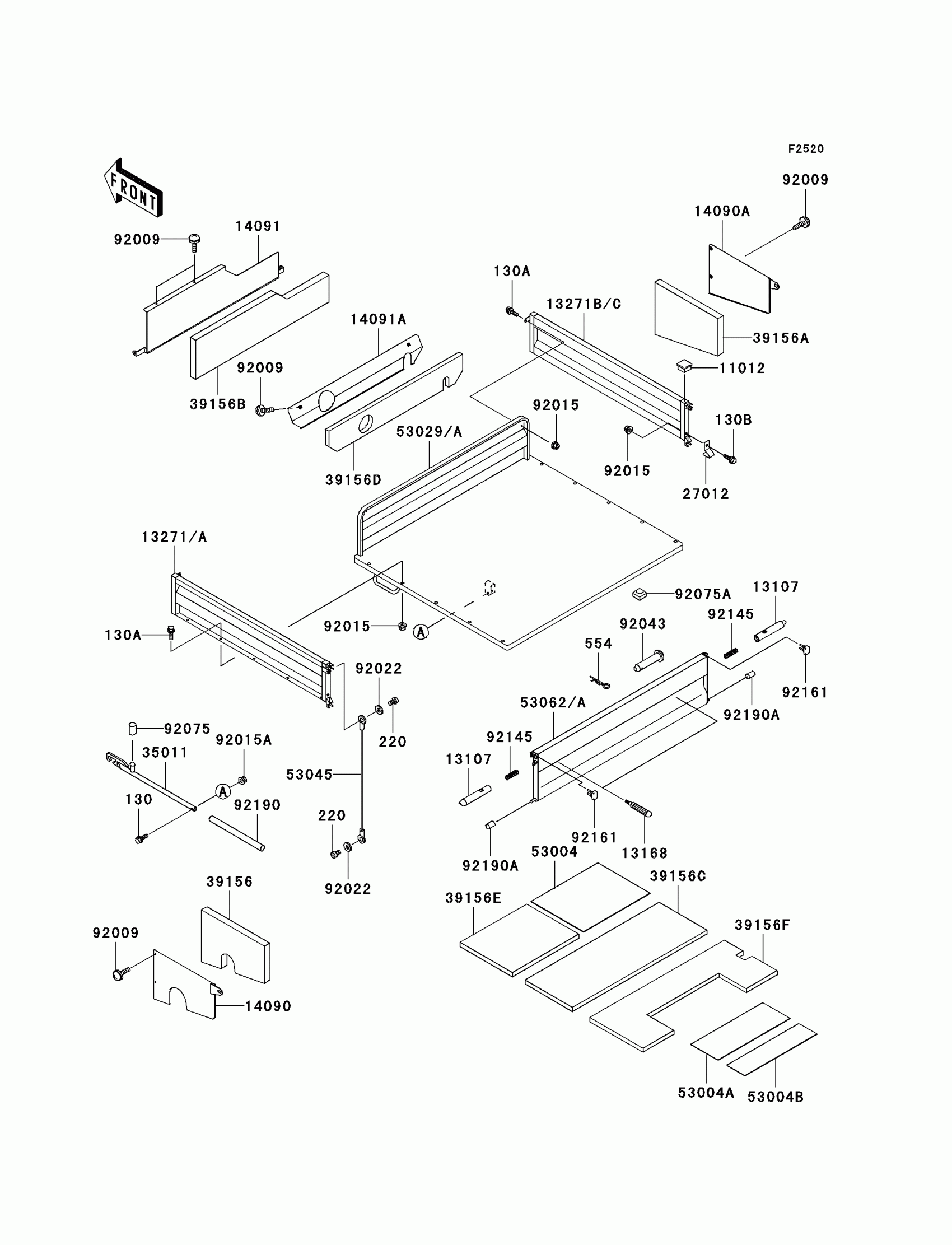

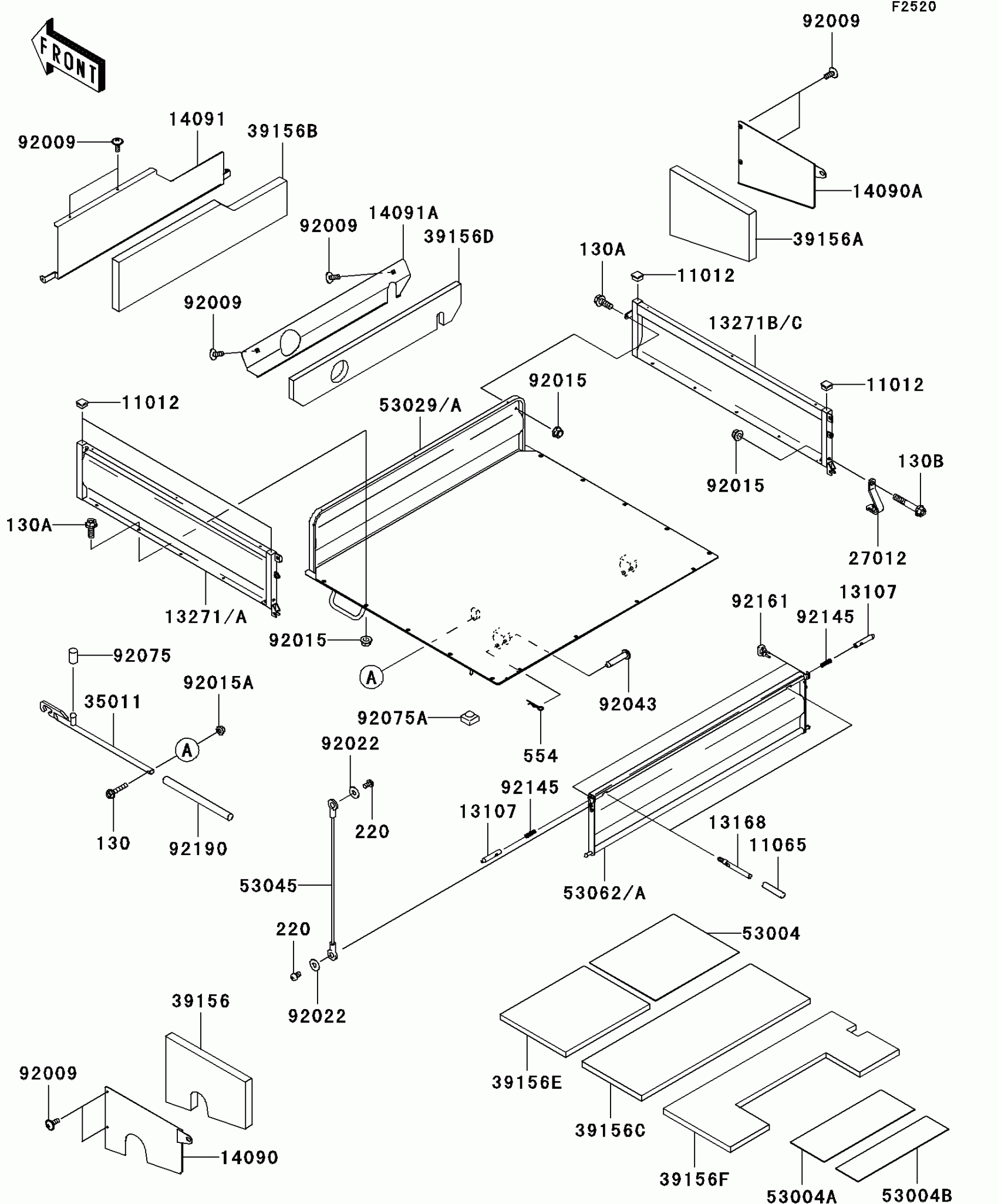

Kawasaki Mule 3010 Diesel 4X4 Carrier(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X30

130H0630

Unavailable

11012

CAP

11012-1784

$4.74

13107

SHAFT

13107-0001

$78.09

13168

LEVER

13168-7501

$18.48

13271

PLATE,CARRIER,SIDE,LH,H.GREEN

13271-1430-B9

$230.13

13271A

PLATE,CARRIER,SIDE,LH,A.RED

13271-1430-467

$216.03

13271B

PLATE,CARRIER,SIDE,RH,H.GREEN

13271-1433-B9

$260.84

13271C

PLATE,CARRIER,SIDE,RH,A.RED

13271-1433-467

$230.13

14090

COVER,ENCLOSURE,LH

14090-1260

$58.06

14090A

COVER,ENCLOSURE,RH

14090-1261

$58.06

14091

COVER,SEAT UNDER

14091-1151

$79.06

14091A

COVER,SEAT REAR

14091-1152

$57.16

27012

HOOK,TAIL GATE

27012-1406

$4.81

35011

STAY,CARRIER STOPPER

35011-1648

$29.46

39156

PAD,ENCLOSURE COVER,LH

39156-1301

$52.96

39156A

PAD,ENCLOSURE COVER,RH

39156-1302

$52.96

39156B

PAD,SEAT UNDER

39156-1630

$55.13

39156C

PAD,CARRIER,MIDDLE

39156-1632

$86.63

39156D

PAD,SEAT REAR

39156-1633

$25.76

39156E

PAD,CARRIER,FR

39156-1637

$40.92

39156F

PAD,CARRIER,RR

39156-1638

$98.96

53004

MAT,CARRIER,FR

53004-1130

$74.47

53004A

MAT,CARRIER,MIDDLE

53004-1131

$39.13

53004B

MAT,CARRIER,RR

53004-1132

$29.46

53029

CARRIER,H.GREEN

53029-7510-B9

$1,086.27

53029A

CARRIER,A.RED

53029-7510-467

Unavailable

53045

HOOK-ASSY,TAIL GATE

53045-1065

$30.28

53062

GATE-TAIL,H.GREEN

53062-0001-B9

$453.29

53062A

GATE-TAIL,A.RED

53062-0001-467

$453.29

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,8MM

92015-1408

$4.07

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,7X18X1.2

92022-1545

$0.84

92043

PIN,12X65

92043-1428

$7.69

92075

DAMPER

92075-1817

$4.67

92075A

DAMPER

92075-1882

$6.18

92145

SPRING,TENSIONER

92145-1215

$3.52

92161

DAMPER

92161-0004

$3.18

92190

TUBE,13X16X200

92190-1401

$4.63

92190A

TUBE,8X10X15

92190-1467

$3.51

130A

BOLT-FLANGED,8X20

130J0820

Unavailable

130B

BOLT-FLANGED,8X50

130J0850

Unavailable

220

SCREW-PAN-CROSS,6X10

220F0610

$1.33

554

PIN-SNAP,12MM

554A1200

Unavailable
