2007 Kawasaki Mule 3010 Diesel 4X4 Driven Converter Diagram

← All diagrams

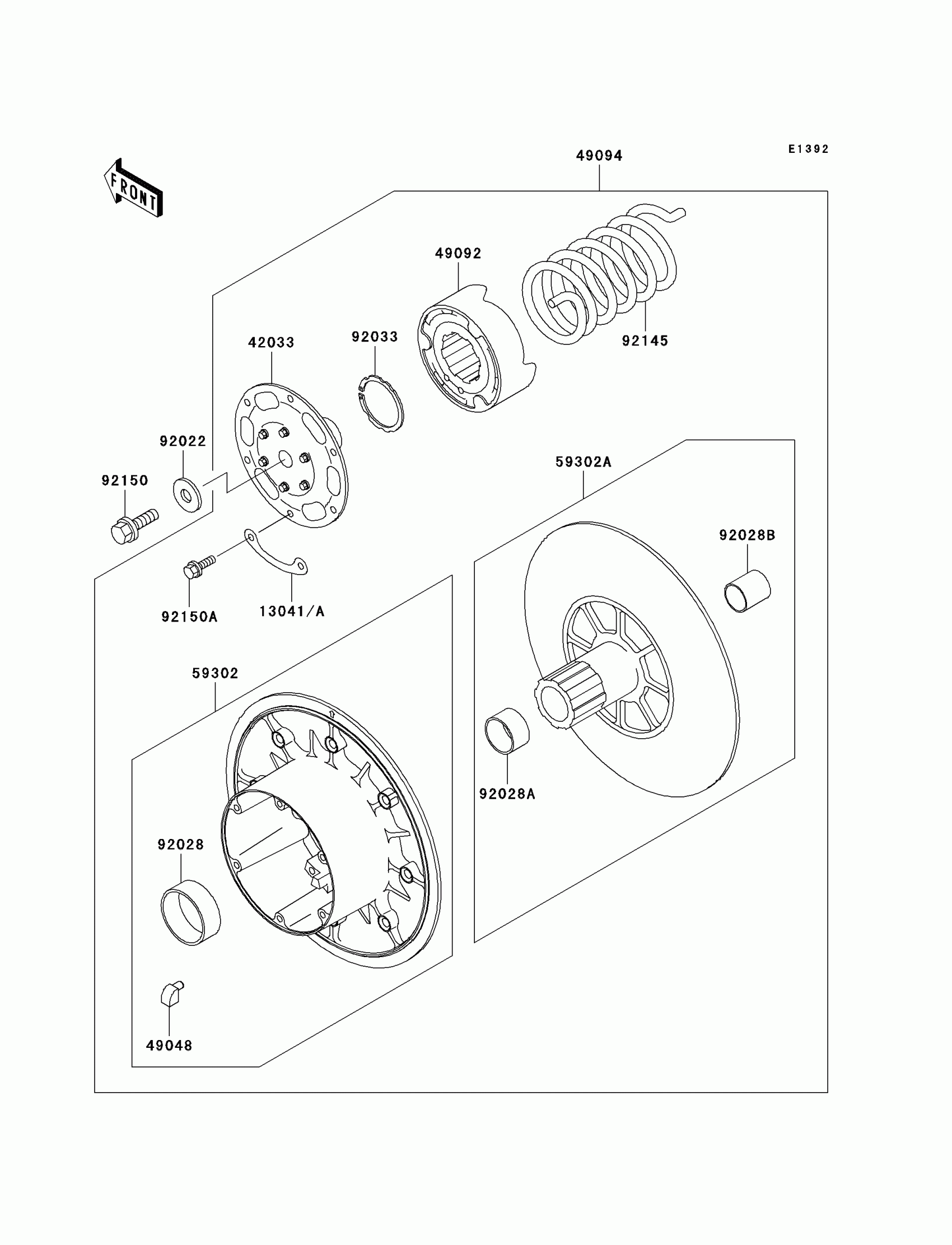

Find the part on the Driven Converter diagram for your 2007 Kawasaki Mule 3010 Diesel 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 3010 Diesel 4X4 Driven Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13041

BALANCER,T=0.8

13041-1084

—
Out of stock

13041A

BALANCER,T=1.0

13041-1085

—
Out of stock

42033

COUPLING-ASSY

42033-1124

1
Out of stock

49048

SHOE

49048-1057

1
Out of stock

49092

RAMP

49092-1064

1
Out of stock

49094

CONVERTER-ASSY-DRIVEN

49094-1075

1
Out of stock

59302

SHEAVE-COMP

59302-1086

1
Out of stock

59302A

SHEAVE-COMP,MOVABLE

59302-1087

1
Out of stock

92022

WASHER,12.5X32X3.2

92022-1982

1
Out of stock

92028

BUSHING,50X55X20

92028-1512

1
Out of stock

92028A

BUSHING,32X36X20

92028-1513

1
Out of stock

92028B

BUSHING,25X28X30

92028-1514

1
Out of stock

92033

RING-SNAP

92033-1241

1
Out of stock

92145

SPRING,DRIVEN CONVERTER

92145-1350

1
Out of stock

92150

BOLT,12X35

92150-1009

1
Out of stock

92150A

BOLT,6X20

92150-1014

1
Out of stock
