2007 Kawasaki Mule 3010 Diesel 4X4 Differential Diagram

← All diagrams

Find the part on the Differential diagram for your 2007 Kawasaki Mule 3010 Diesel 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

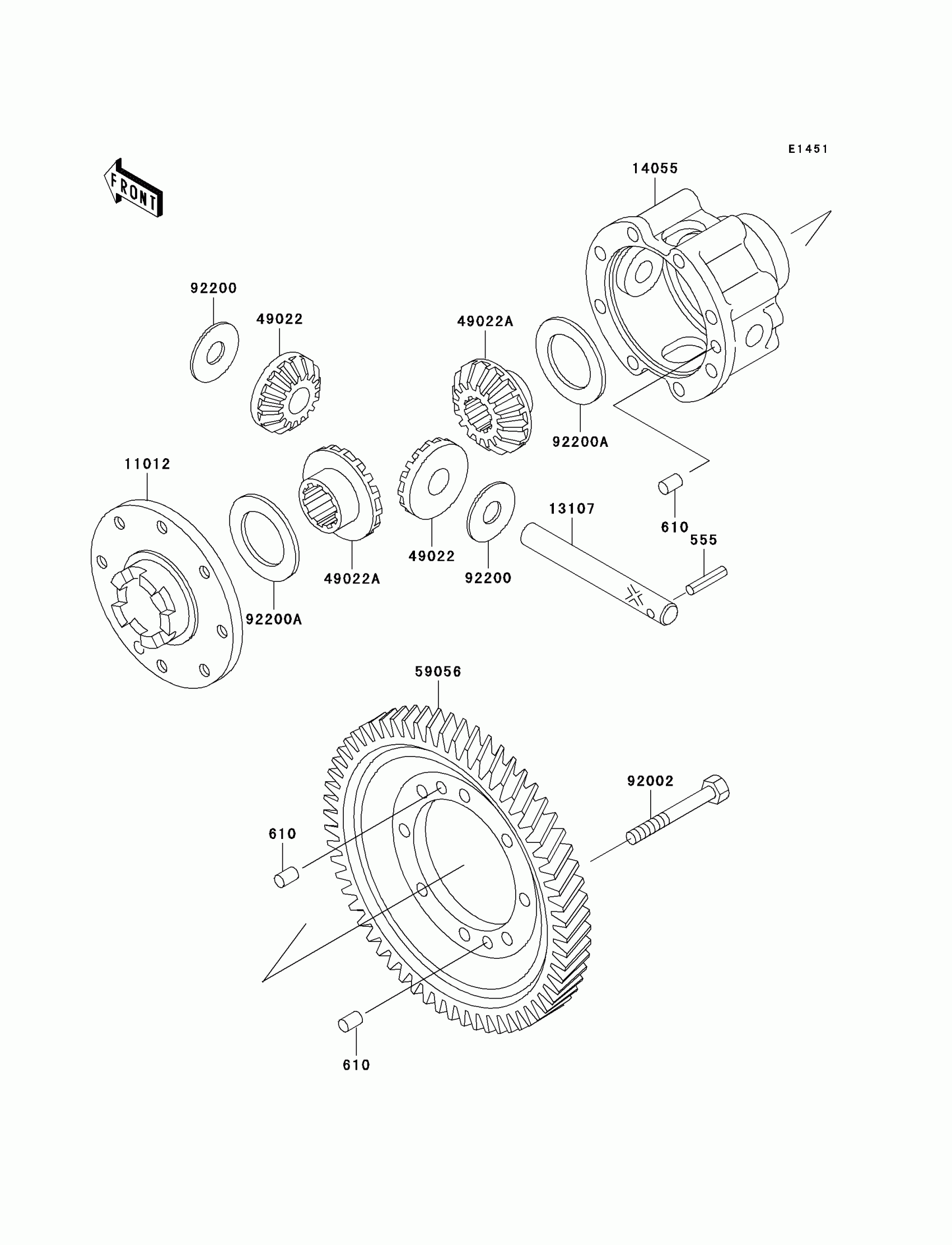

2007 Kawasaki Mule 3010 Diesel 4X4 Differential Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

555

PIN-SPRING

555A0528

1
Out of stock

610

PIN-DOWEL,8X12

610A0812

1
Out of stock

11012

CAP,GEAR CASE

11012-1613

1
Out of stock

13107

SHAFT

13107-1219

1
Out of stock

14055

CASE-GEAR,DIFFERENTIAL

14055-1113

1
Out of stock

49022

GEAR-BEVEL,10T

49022-1105

1
Out of stock

49022A

GEAR-BEVEL,16T

49022-1117

1
Out of stock

59056

GEAR-HELICAL,DIFFERENTIAL,81T

59056-1056

1
Out of stock

92002

BOLT,8X68

92002-1553

1
Out of stock

92200

WASHER,14.5X38X1.0

92200-1044

1
Out of stock

92200A

WASHER,35.5X54X1.0

92200-1045

1
Out of stock
