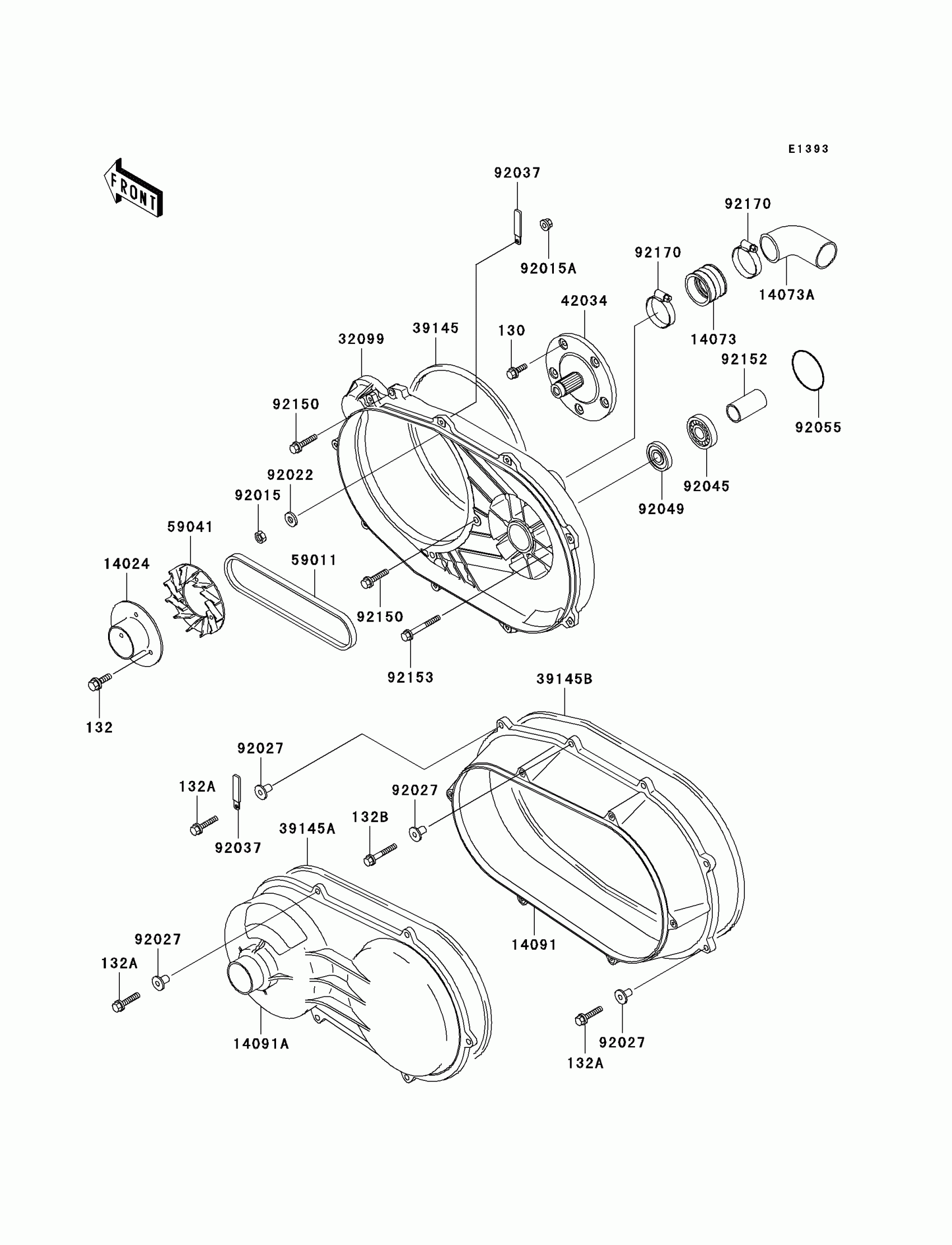

Kawasaki Mule 3010 Diesel 4X4 Converter Cover/Drive Belt Diagram

Description

Price

130

BOLT-FLANGED,8X20

130T0820

Unavailable

132

BOLT-FLANGED-SMALL,6X30

132G0630

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132B

BOLT-FLANGED-SMALL,6X35

132J0635

Unavailable

14024

COVER,FAN

14024-1554

$42.47

14073

DUCT

14073-1324

$8.11

14073A

DUCT,CONVERTER OUTLET

14073-1780

$20.39

14091

COVER,MIDDLE

14091-1134

$115.72

14091A

COVER,BELT CONVERTER

14091-1187

$135.09

32099

CASE,BELT CONVERTER

32099-1215

$766.54

39145

TRIM-SEAL,BELT CONVERTER CASE

39145-1115

$10.63

39145A

TRIM-SEAL,MIDDLE COVER

39145-1117

$20.94

39145B

TRIM-SEAL,BELT CONVERTER

39145-1126

$17.12

42034

COUPLING

42034-1160

Unavailable

59011

BELT

59011-1086

$211.28

59041

FAN

59041-1059

$44.53

92015

NUT,LOCK,10MM,BLACK

92015-1189

$5.61

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,10.5X18X2.5

92022-1876

$3.81

92027

COLLAR,L=14.1

92027-1920

$5.12

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92045

BEARING-BALL,62/28LLB

92045-1378

$25.88

92049

SEAL-OIL,TC28X47X7

92049-1297

$11.31

92055

RING-O,67.6X3.5

92055-1327

$4.88

92150

BOLT,FLANGED,8X28

92150-1103

$4.85

92152

COLLAR,28.1X34X63.6

92152-1177

$16.15

92153

BOLT

92153-1276

$2.04

92170

CLAMP

92170-1448

$6.18
