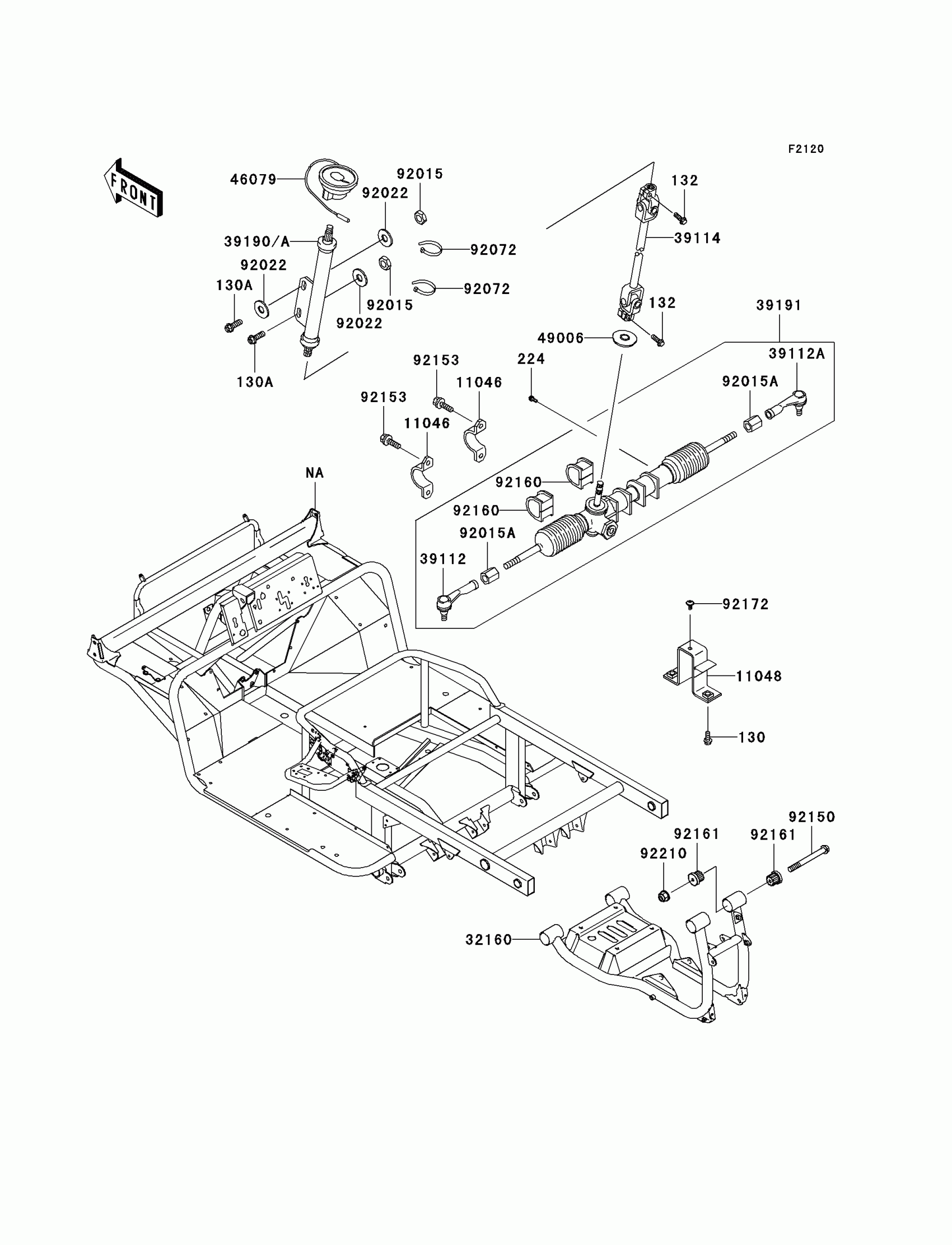

Kawasaki Mule 3010 4x4 Hardwoods Green HD Frame Diagram

Description

Price

130

BOLT-FLANGED,8X20

130BB0820

$0.71

130A

BOLT-FLANGED,10X30

130BB1030

$4.93

132

BOLT-FLANGED-SMALL,8X25

132BB0825

$3.14

224

SCREW-PAN-WP-CROS,5X8

224AA0508

$0.63

11046

BRACKET,STEERING GEAR

11046-1858

Unavailable

11048

BRACKET,REAR FRAME

11048-1245

$24.44

32160

FRAME-COMP,RR

32160-0004

$251.26

39112

RODEND-TIE,STEERING GEAR,LH

39112-1068

$85.03

39112A

RODEND-TIE,STEERING GEAR,RH

39112-1069

$85.03

39114

SHAFT-COMP-STRG

39114-0009

$326.29

39190

SHAFT-ASSY-STEERING

39190-0005

$236.68

39191

GEAR-ASSY-STEERING

39191-0008

$1,037.96

46079

CONTACT,HORN SWITCH

46079-1063

Unavailable

49006

BOOT,STEERING SHAFT,LWR

49006-1255

$35.56

92015

NUT,LOCK,10MM,BLACK

92015-1189

$5.61

92015A

NUT

92015-1864

$13.66

92022

WASHER,10.5X26X2.3,BLACK

92022-1396

$2.59

92072

BAND,L=188

92072-1239

$1.30

92150

BOLT,FLANGED,10X100

92150-1731

$16.98

92153

BOLT,SOCKET,10X23

92153-1269

$1.98

92160

DAMPER,STEERING GEAR

92160-1084

$28.70

92161

DAMPER

92161-1126

Unavailable

92172

SCREW,6X14

92172-0004

$1.98

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90
