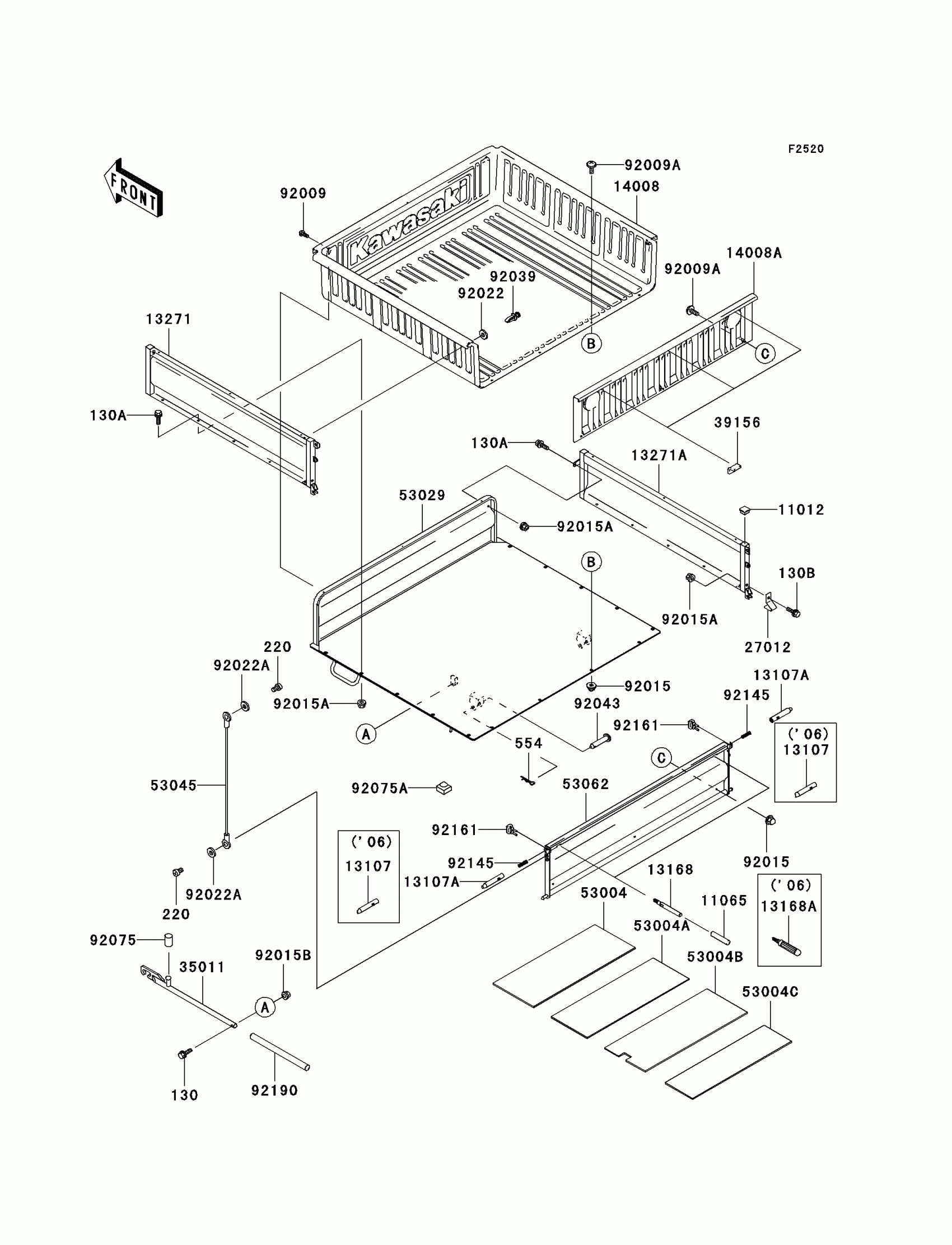

Kawasaki Mule 3010 4x4 Hardwoods Green HD Carrier(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X30

130BA0630

$1.13

130A

BOLT-FLANGED,8X20

130BB0820

$0.71

130B

BOLT-FLANGED,8X50

130BB0850

$3.60

220

SCREW-PAN-CROS,6X10

220AB0610

$1.33

554

PIN-SNAP,12MM

554A1200

Unavailable

11012

CAP

11012-1784

$4.74

11065

CAP

11065-0126

$2.34

13107A

SHAFT

13107-0082

$58.67

13168

LEVER

13168-0090

$9.15

13271

PLATE,CARRIER,SIDE,LH,GREEN

13271-0091-374

$248.83

13271A

PLATE,CARRIER,SIDE,RH,GREEN

13271-0092-374

$248.83

14008

LINER,CARRIER BED

14008-0005

$331.61

14008A

LINER,TAIL GATE

14008-0006

$47.82

27012

HOOK,TAIL GATE

27012-0022

$4.81

35011

STAY,CARRIER STOPPER

35011-1648

$29.46

39156

PAD,TAIL GATE

39156-0042

$8.63

53004

MAT

53004-1157

$130.17

53004A

MAT

53004-1158

$124.25

53004B

MAT

53004-1159

$118.64

53004C

MAT

53004-1160

$109.29

53029

CARRIER,BLACK

53029-0020-10

$1,153.76

53045

HOOK-ASSY,TAIL GATE

53045-0004

$26.21

53062

GATE-TAIL,C.H.GREEN

53062-0002-374

$453.29

92009

SCREW,6X12

92009-1480

$2.23

92009A

SCREW,6X14

92009-1662

$2.99

92015

NUT,LOCK 6MM

92015-1262

$4.85

92015A

NUT,FLANGED,8MM

92015-1408

$4.07

92015B

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$3.29

92022A

WASHER,7X18X1.2

92022-1545

$0.84

92039

RIVET

92039-1229

$0.80

92043

PIN,12X65

92043-1428

$7.69

92075

DAMPER

92075-1817

$4.67

92075A

DAMPER

92075-1882

$6.18

92145

SPRING,TENSIONER

92145-1215

$3.52

92161

DAMPER

92161-0258

$3.18

92190

TUBE,13X16X200

92190-1401

$4.63
