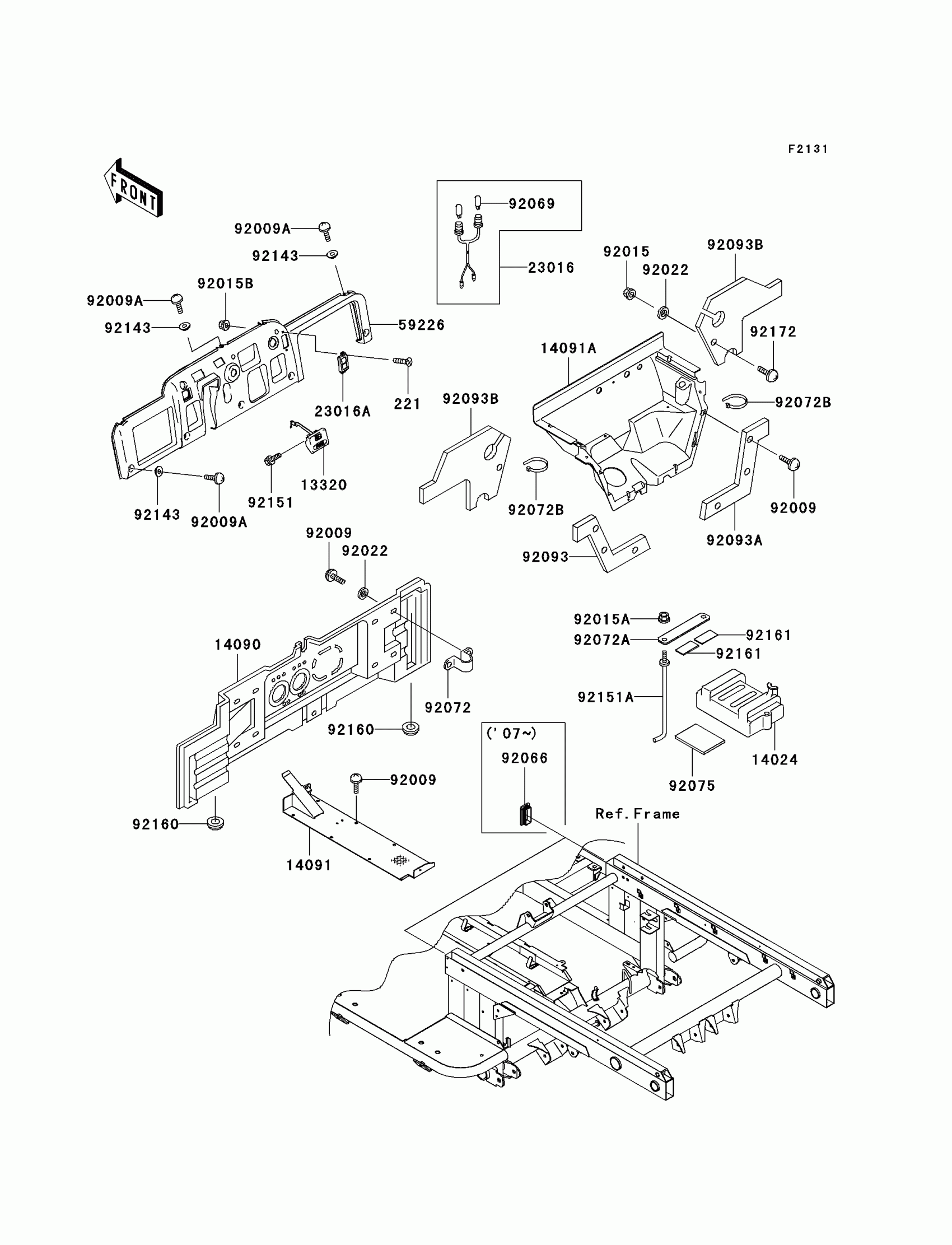

Kawasaki Mule 3010 4x4 Hardwoods Green HD Frame Fittings Diagram

Description

Price

221

SCREW-CSK-CROS,6X16

221AB0616

$4.15

13320

LEVER-ASSY

13320-1016

$121.39

14024

COVER,BATTERY

14024-1792

$44.38

14090

COVER,SEAT UNDER

14090-1247

Unavailable

14091

COVER,FLOOR,CNT

14091-0118

$112.40

14091A

COVER,FLOOR

14091-1378

$100.23

23016

LAMP-ASSY,INDICATOR

23016-1188

$52.86

23016A

LAMP-ASSY

23016-1189

$52.20

59226

PANEL-CONTROL,C.H.GREEN

59226-7502-396

$277.20

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92015A

NUT,FLANGED,8MM

92015-1406

$3.39

92015B

NUT,LOCK,FLANGED,6MM

92015-1603

$3.57

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92066

PLUG

92066-7505

$3.44

92069

BULB,12V 3W,T7

92069-1020

Unavailable

92072

BAND

92072-1252

$11.41

92072A

BAND,L=159

92072-1399

$3.24

92072B

BAND,L=368.3

92072-3872

$1.20

92075

DAMPER

92075-1076

$6.75

92093

SEAL,FRONT FENDER,LH

92093-1293

$9.34

92093A

SEAL,FRONT FENDER,RH

92093-1294

$9.68

92093B

SEAL,LOWER COVER

92093-1295

$21.14

92143

COLLAR

92143-1087

$2.98

92151

BOLT,FLANGED,5X12

92151-1305

$1.20

92151A

BOLT,BATTERY

92151-1897

$5.02

92160

DAMPER

92160-1148

$4.08

92161

DAMPER

92161-0032

$3.41

92172

SCREW,6X18

92172-0002

$1.98
