2007 Kawasaki Mule 3010 4x4 Advantage Classic Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2007 Kawasaki Mule 3010 4x4 Advantage Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

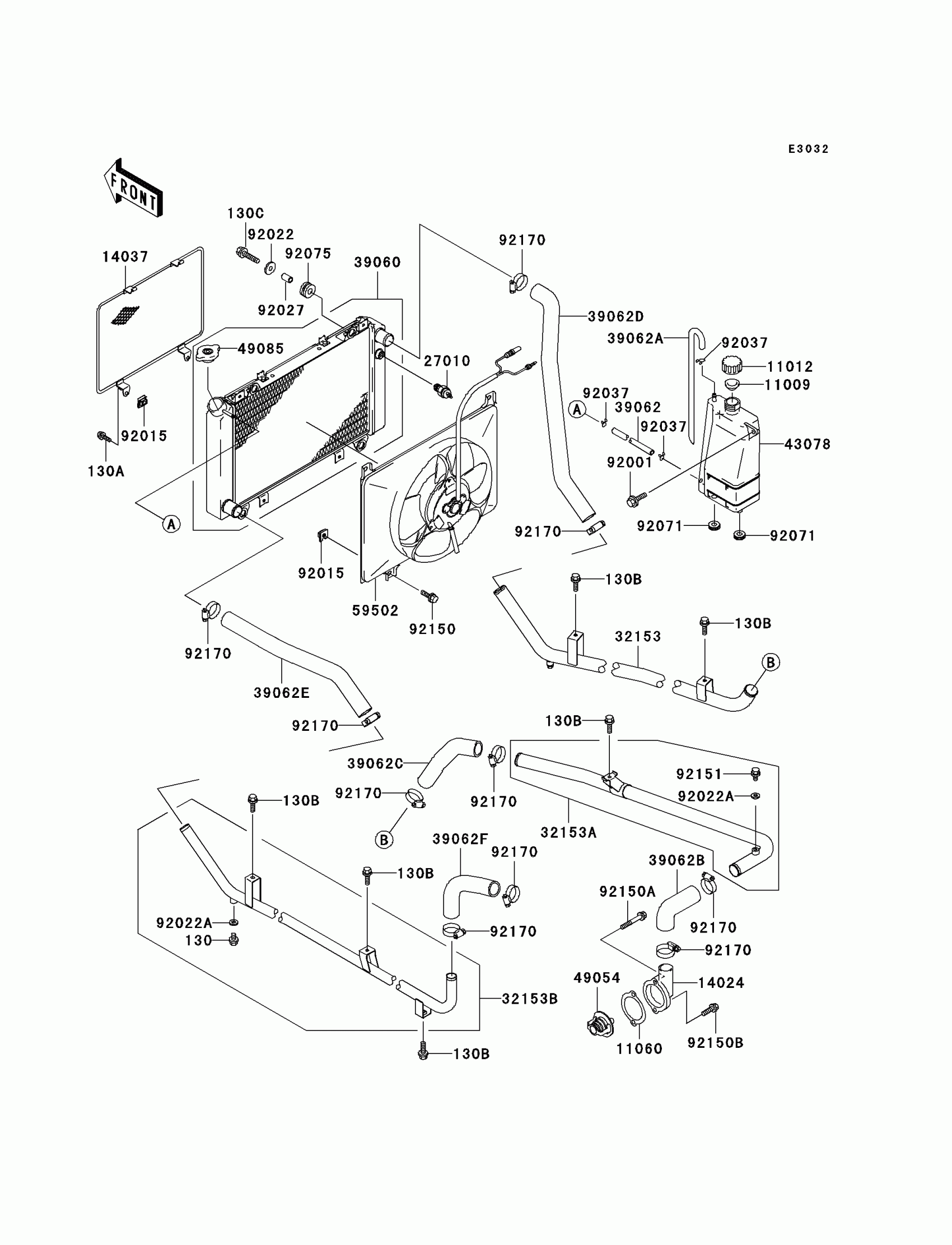

2007 Kawasaki Mule 3010 4x4 Advantage Classic Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130J0610

1
Out of stock

130A

BOLT-FLANGED,6X12

130J0612

1
Out of stock

130B

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

130C

BOLT-FLANGED,8X25,BLACK

130J0825

1
Out of stock

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

11060

1

$2.25

In stock

14024

COVER,THERMOSTAT

14024-2293

1
Out of stock

14037

SCREEN

14037-1284

1
Out of stock

27010

SWITCH,FAN

27010-1317

1

$133.44

In stock

32153

PIPE,RH

32153-1056

1
Out of stock

32153A

PIPE,RH

32153-1325

1

$94.03

In stock

32153B

PIPE,LH

32153-1326

1

$62.97

In stock

39060

RADIATOR

39060-1187

1
Out of stock

39062

1

$4.15

In stock

39062A

HOSE-COOLING

39062-1830

1

$10.81

In stock

39062B

HOSE-COOLING

39062-1832

1

$13.34

In stock

39062C

HOSE-COOLING

39062-1833

1

$18.46

In stock

39062D

HOSE-COOLING

39062-1834

1
Out of stock

39062E

HOSE-COOLING

39062-1835

1
Out of stock

39062F

HOSE-COOLING

39062-1836

1
Out of stock

43078

RESERVOIR

43078-1185

1
Out of stock

49054

THERMOSTAT

49054-2056

1

$24.25

In stock

49085

CAP-ASSY-PRESSURE

49085-1066

1

$33.98

In stock

59502

FAN-ASSY

59502-1137

1

$509.26

In stock

92001

BOLT,W/P,6X16

92001-1860

1

$3.85

In stock

92015

NUT

92015-1487

1

$3.80

In stock

92022

1

$3.43

In stock

92022A

WASHER,6.2X11X1

92022-304

1
Out of stock

92027

COLLAR

92027-102

1

$1.00

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92071

GROMMET

92071-1115

1

$4.34

In stock

92075

DAMPER

92075-294

1

$3.68

In stock

92150

BOLT,6X12

92150-1186

1

$2.92

In stock

92150A

BOLT,6X40

92150-2230

1

$1.32

In stock

92150B

BOLT,6X20

92150-2231

1

$1.61

In stock

92151

BOLT,6X10

92151-1832

1
Out of stock

92170

CLAMP,COOLING HOSE

92170-1284

1

$6.51

In stock
