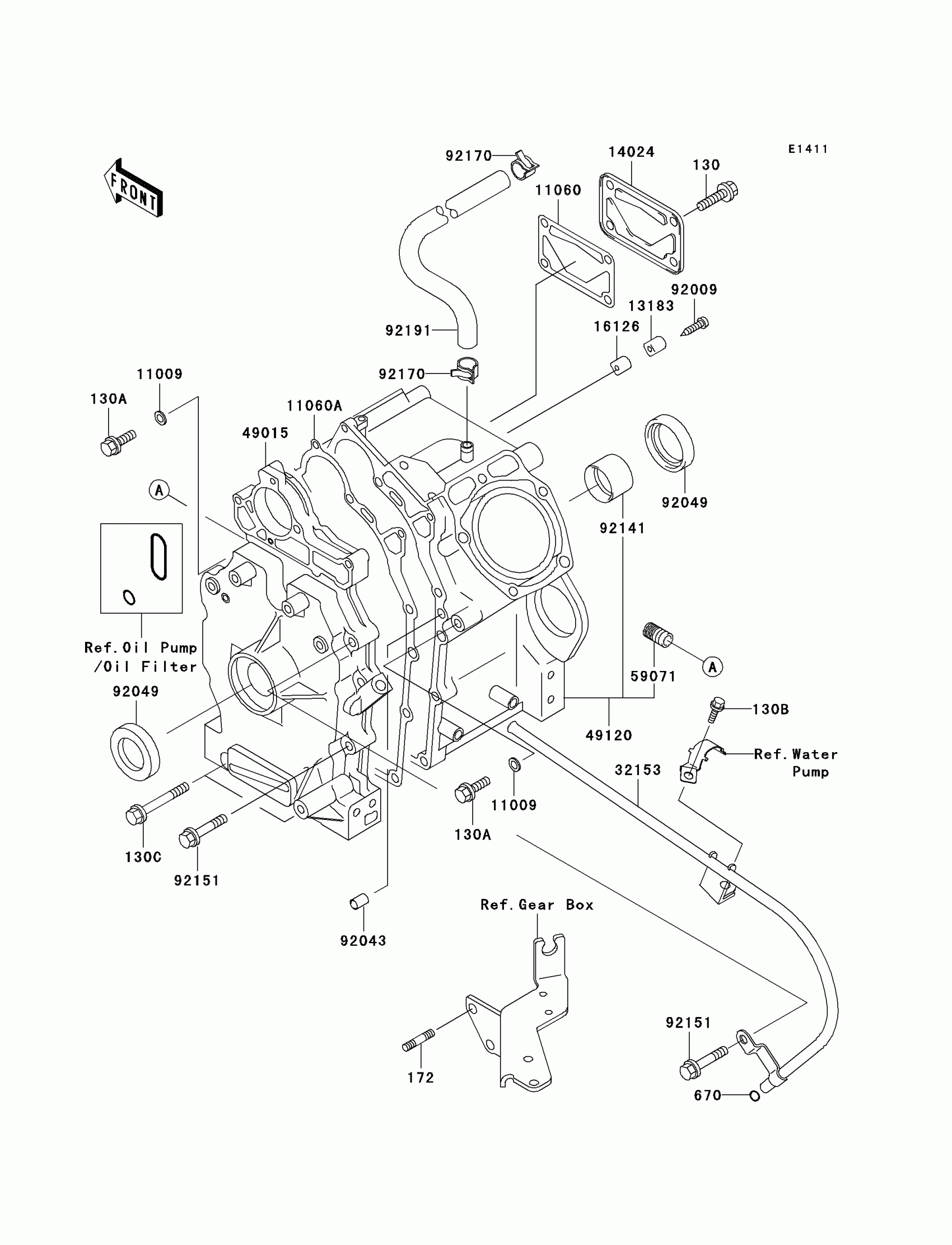

Find the part on the Crankcase diagram for your 2007 Kawasaki Mule 3010 4x4 Advantage Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 3010 4x4 Advantage Classic Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X16

130B0816

1
Out of stock

130A

BOLT-FLANGED,8X12,BLACK

130C0812

1
Out of stock

130B

BOLT-FLANGED,8X16

130G0816

1
Out of stock

130C

BOLT-FLANGED

130T0860

1
Out of stock

172

BOLT-STUD,8X25

172G0825

1
Out of stock

670

O RING,10MM

670B2010

1
Out of stock

11009

GASKET

11009-3028

1
Out of stock

11060

GASKET,BREATHER,COVER

11060-2089

1
Out of stock

11060A

GASKET,CRANKCASE COVER

11060-2449

1
Out of stock

13183

PLATE

13183-2120

1
Out of stock

14024

COVER

14024-2292

1
Out of stock

16126

VALVE

16126-2146

1
Out of stock

32153

PIPE,F.BLACK

32153-2080-9H

1
Out of stock

49015

COVER-CRANKCASE

49015-6193

1
Out of stock

49120

CRANKCASE-COMP

49120-6078

1
Out of stock

59071

JOINT

59071-2079

1
Out of stock

92009

SCREW

92009-2308

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1
Out of stock

92049

SEAL-OIL

92049-2110

1
Out of stock

92141

BEARING-PLANE

92141-2110

1
Out of stock

92151

BOLT

92151-2123

1
Out of stock

92170

CLAMP

92170-3714

1
Out of stock

92191

TUBE

92191-2107

1
Out of stock
