2007 Kawasaki Mule 3010 4x4 Advantage Classic Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2007 Kawasaki Mule 3010 4x4 Advantage Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

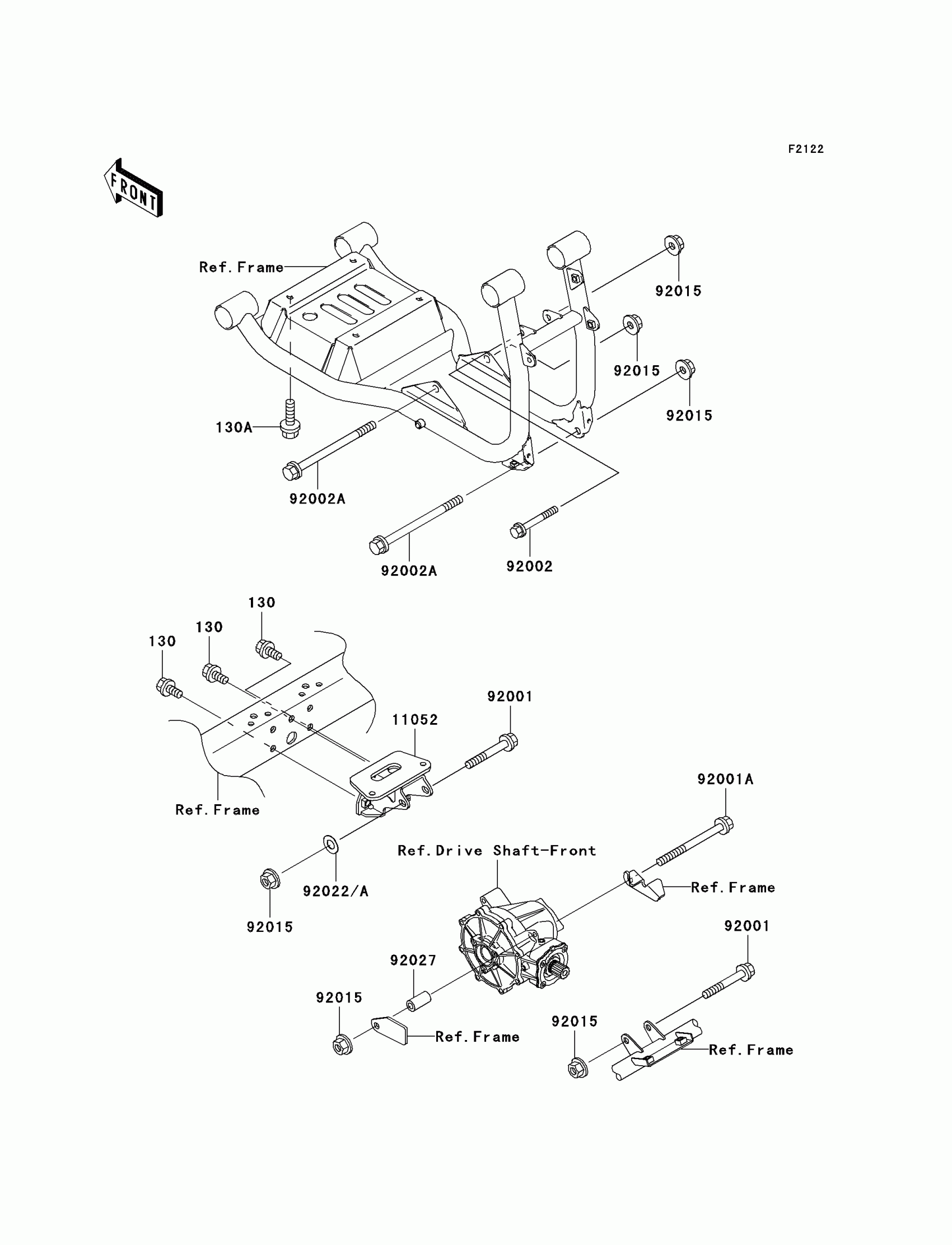

2007 Kawasaki Mule 3010 4x4 Advantage Classic Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,10X20

130G1020

1
Out of stock

130A

BOLT-FLANGED,8X20

130H0820

1
Out of stock

11052

BRACKET,FRONT GEAR CASE

11052-1575

1
Out of stock

92001

BOLT,FLANGED,10X70

92001-1600

1
Out of stock

92001A

BOLT,FLANGED,10X115

92001-1603

1
Out of stock

92002

BOLT,FLANGED,10X80

92002-1764

1
Out of stock

92002A

BOLT,FLANGED,10X145

92002-1765

1
Out of stock

92015

NUT,LOCK,10MM

92015-1597

1
Out of stock

92022

WASHER,10.2X20X0.5

92022-1649

—
Out of stock

92022A

WASHER,10.5X20X1

92022-239

—
Out of stock

92027

COLLAR,11X20X39

92027-1518

1
Out of stock
