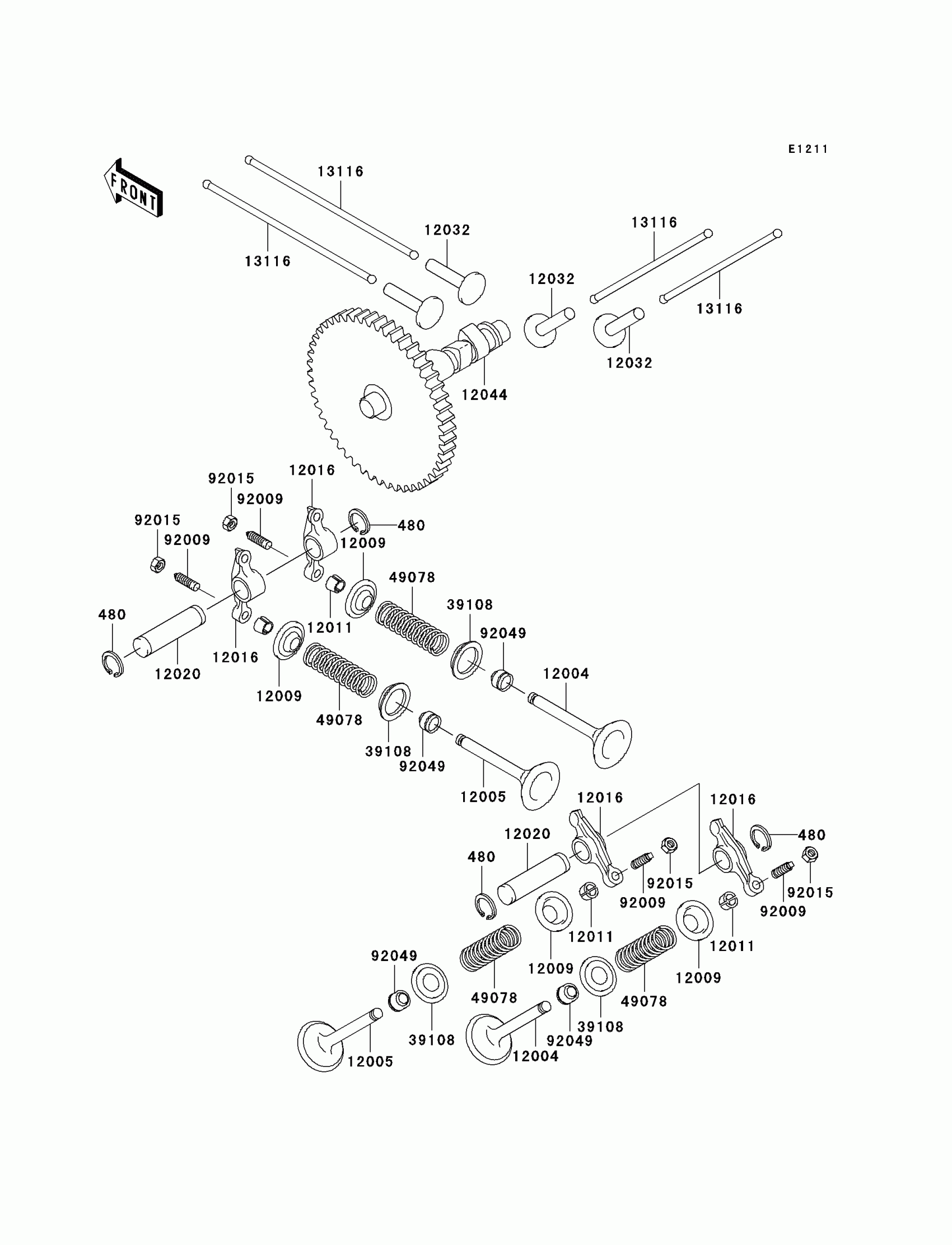

Kawasaki Mule 3000 Valve(s)/Camshaft(s) Diagram

Description

Price

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.59

12004

VALVE-INTAKE

12004-2104

Unavailable

12005

VALVE-EXHAUST

12005-2093

$22.71

12009

RETAINER-VALVE SPRING

12009-2067

$2.28

12011

COLLET

12011-2056

$1.70

12016

ARM-ROCKER

12016-2056

$16.58

12020

SHAFT-ROCKER

12020-2059

$4.15

12032

TAPPET

12032-2064

$10.05

12044

CAMSHAFT-VALVE

12044-2239

$142.10

13116

ROD-PUSH

13116-2057

$3.15

39108

RETAINER-SPRING

39108-2057

$0.55

49078

SPRING-ENGINE VALVE

49078-2082

$1.85

92009

SCREW,VALVE ADJUST

92009-1109

$1.43

92015

NUT,VALVE ADJUST LOCK

92015-1137

$0.81

92049

SEAL-OIL

92049-2109

$3.88
