2007 Kawasaki Mule 3000 OIL Pump/oil Filter Diagram

← All diagrams

Find the part on the OIL Pump/oil Filter diagram for your 2007 Kawasaki Mule 3000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

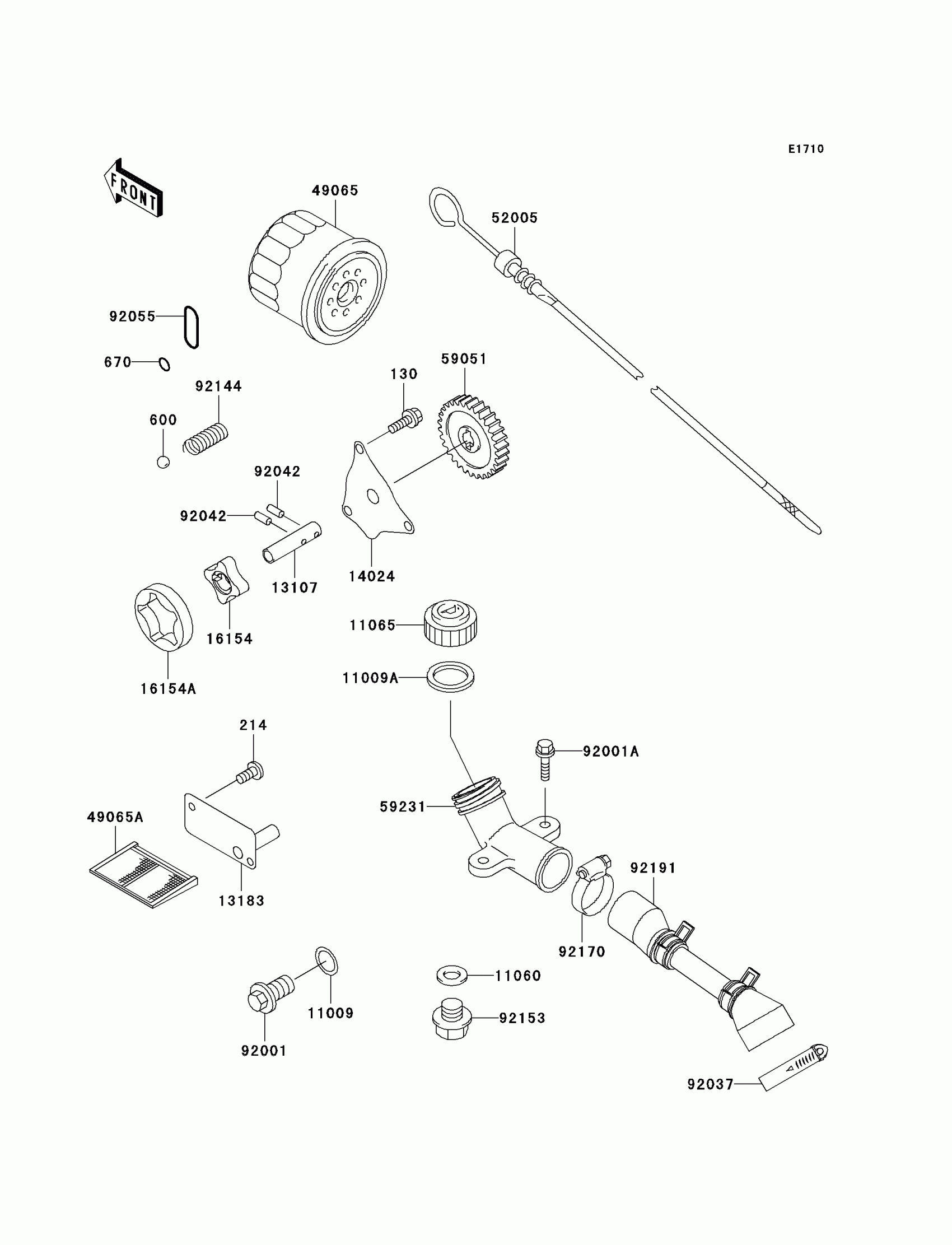

2007 Kawasaki Mule 3000 OIL Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130B0614

1
Out of stock

214

SCREW-PAN+-

214B0512

1
Out of stock

600

BALL-STEEL,13/32"

600A1300

1
Out of stock

670

O RING,11MM

670B2011

1
Out of stock

11009

GASKET,16.2X22X1

11009-1467

1
Out of stock

11009A

GASKET,OIL GAUGE

11009-2346

1
Out of stock

11060

GASKET,14X20X2

11060-1287

1
Out of stock

11065

CAP

11065-1167

1
Out of stock

13107

SHAFT

13107-2099

1
Out of stock

13183

PLATE

13183-2419

1
Out of stock

14024

COVER,OIL PUMP

14024-2113

1

$3.49

In stock

16154

ROTOR-PUMP,IN

16154-2053

1
Out of stock

16154A

ROTOR-PUMP,OUT

16154-2054

1
Out of stock

49065

FILTER-OIL

49065-2071

1
Out of stock

49065A

FILTER-OIL

49065-2072

1
Out of stock

52005

GAUGE

52005-2149

1
Out of stock

59051

GEAR-SPUR

59051-2114

1
Out of stock

59231

FILLER

59231-1106

1
Out of stock

92001

BOLT,FLANGED,16X11.5

92001-1114

1
Out of stock

92001A

BOLT,6X20

92001-1460

1
Out of stock

92037

CLAMP

92037-506

1
Out of stock

92042

PIN,DOWEL,4X15.8

92042-014

1
Out of stock

92055

RING-O

92055-2086

1
Out of stock

92144

SPRING

92144-2053

1
Out of stock

92153

BOLT,FLANGED,14X10

92153-0008

1
Out of stock

92170

CLAMP

92170-1036

1

$8.51

In stock

92191

TUBE

92191-1579

1
Out of stock
