2007 Kawasaki Mule 3000 Crankshaft/piston Diagram

← All diagrams

Find the part on the Crankshaft/piston diagram for your 2007 Kawasaki Mule 3000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

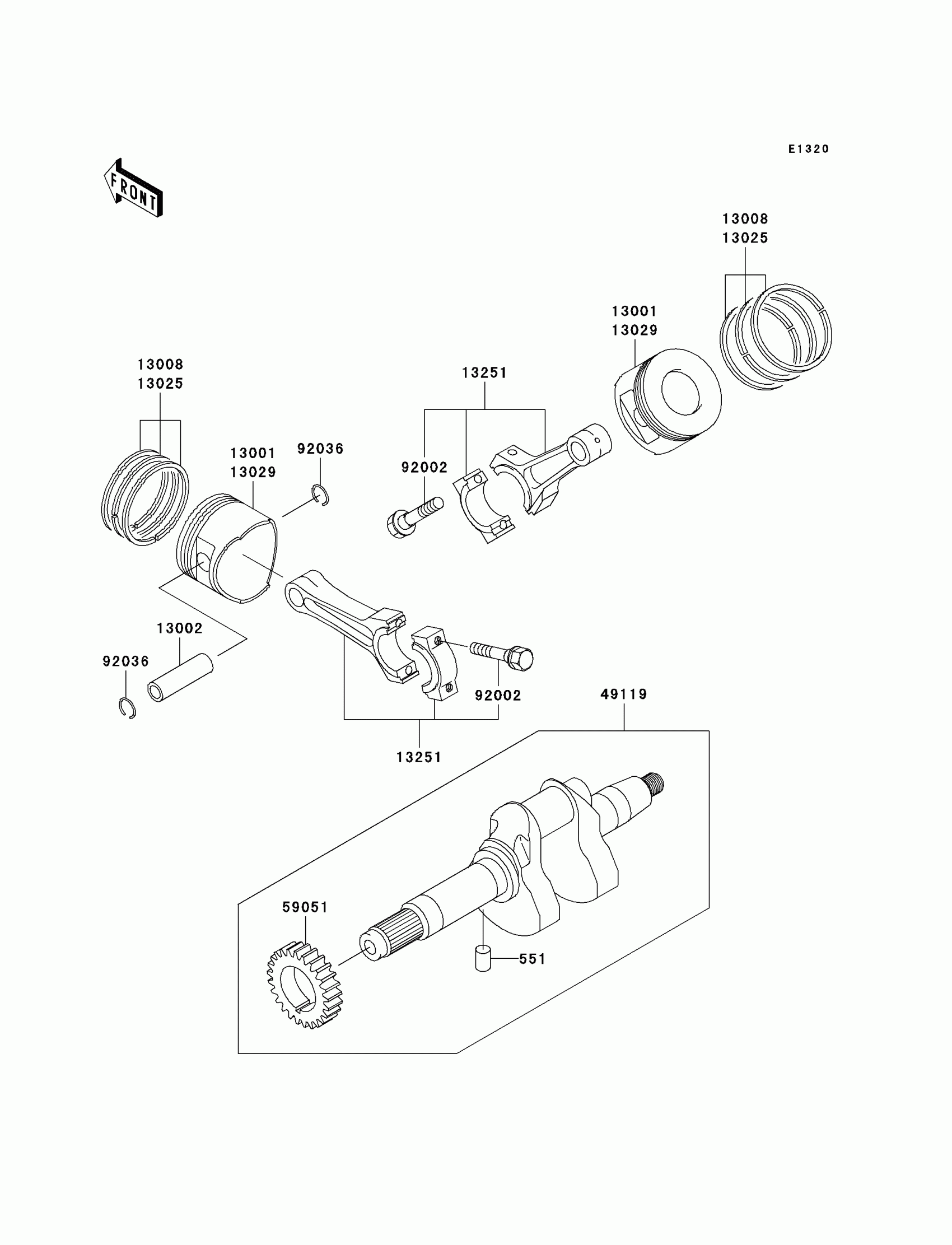

2007 Kawasaki Mule 3000 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

551

PIN-DOWEL,4X8

551A0408

1
Out of stock

13001

PISTON-ENGINE,STD

13001-2131

1
Out of stock

13002

PIN-PISTON

13002-1013

1
Out of stock

13008

RING-SET-PISTON,STD

13008-6025

1
Out of stock

13025

RING-SET-PISTON L,0.50

13025-6008

—
Out of stock

13029

PISTON-ENGINE L,0.50

13029-2105

—
Out of stock

13251

ROD-ASSY-CONNECTING

13251-6022

1
Out of stock

49119

CRANKSHAFT-ASSY

49119-2200

1
Out of stock

59051

GEAR-SPUR

59051-2112

1
Out of stock

92002

BOLT

92002-2053

1
Out of stock

92036

CIRCLIP,PISTON PIN

92036-021

1
Out of stock
