2007 Kawasaki Mule 2520 Turf Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2007 Kawasaki Mule 2520 Turf, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

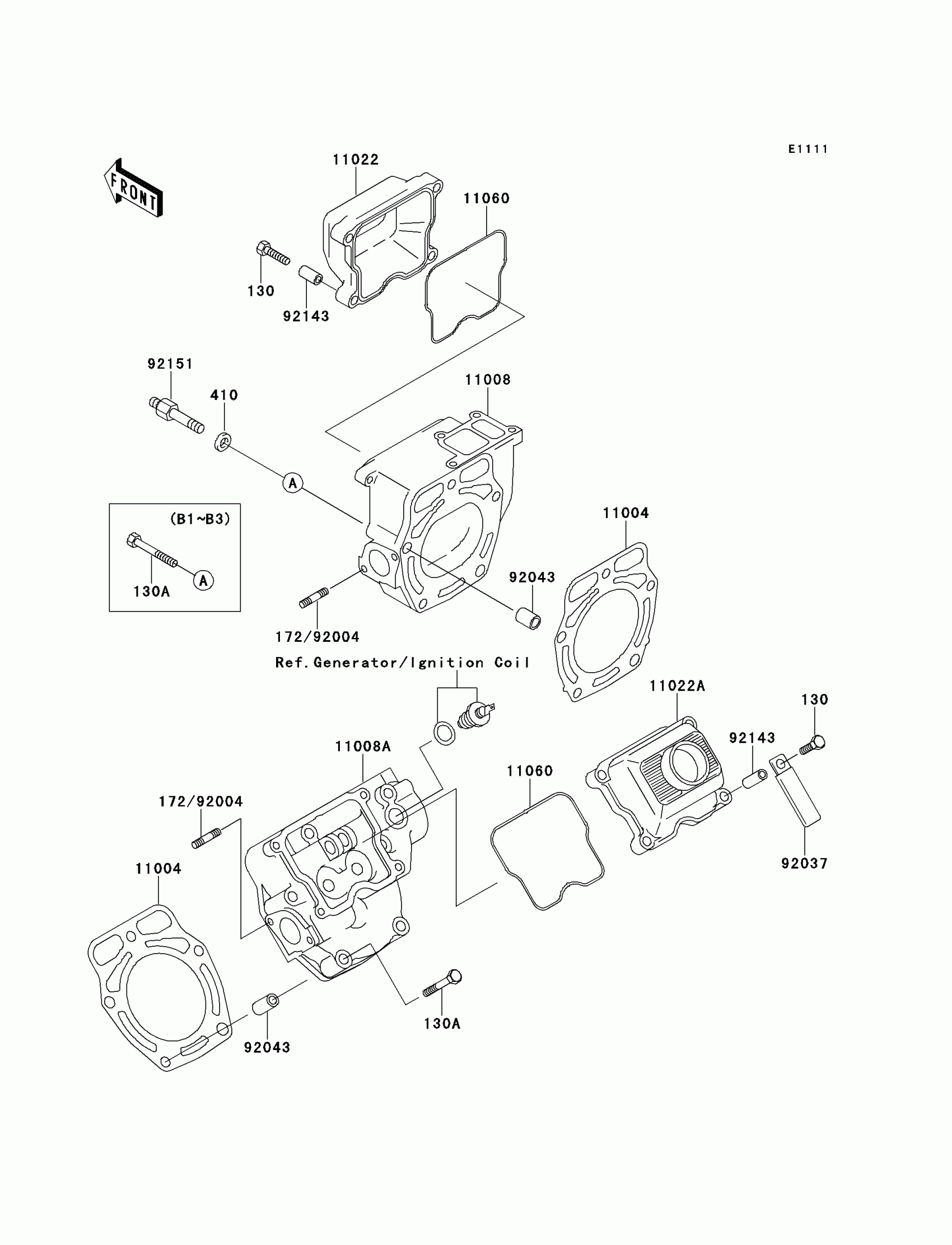

2007 Kawasaki Mule 2520 Turf Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X25

130B0625

1
Out of stock

130A

BOLT-FLANGED,8X65

130G0865

1
Out of stock

172

BOLT-STUD,6X20

172G0620

1
Out of stock

11004

GASKET-HEAD

11004-2107

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-2087

1
Out of stock

11008A

HEAD-COMP-CYLINDER

11008-6015

1
Out of stock

11022

CASE-ROCKER

11022-2056

1
Out of stock

11022A

CASE-ROCKER

11022-2068

1
Out of stock

11060

GASKET,ROCKER CASE

11060-2332

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1
Out of stock

92143

COLLAR

92143-2010

1
Out of stock
