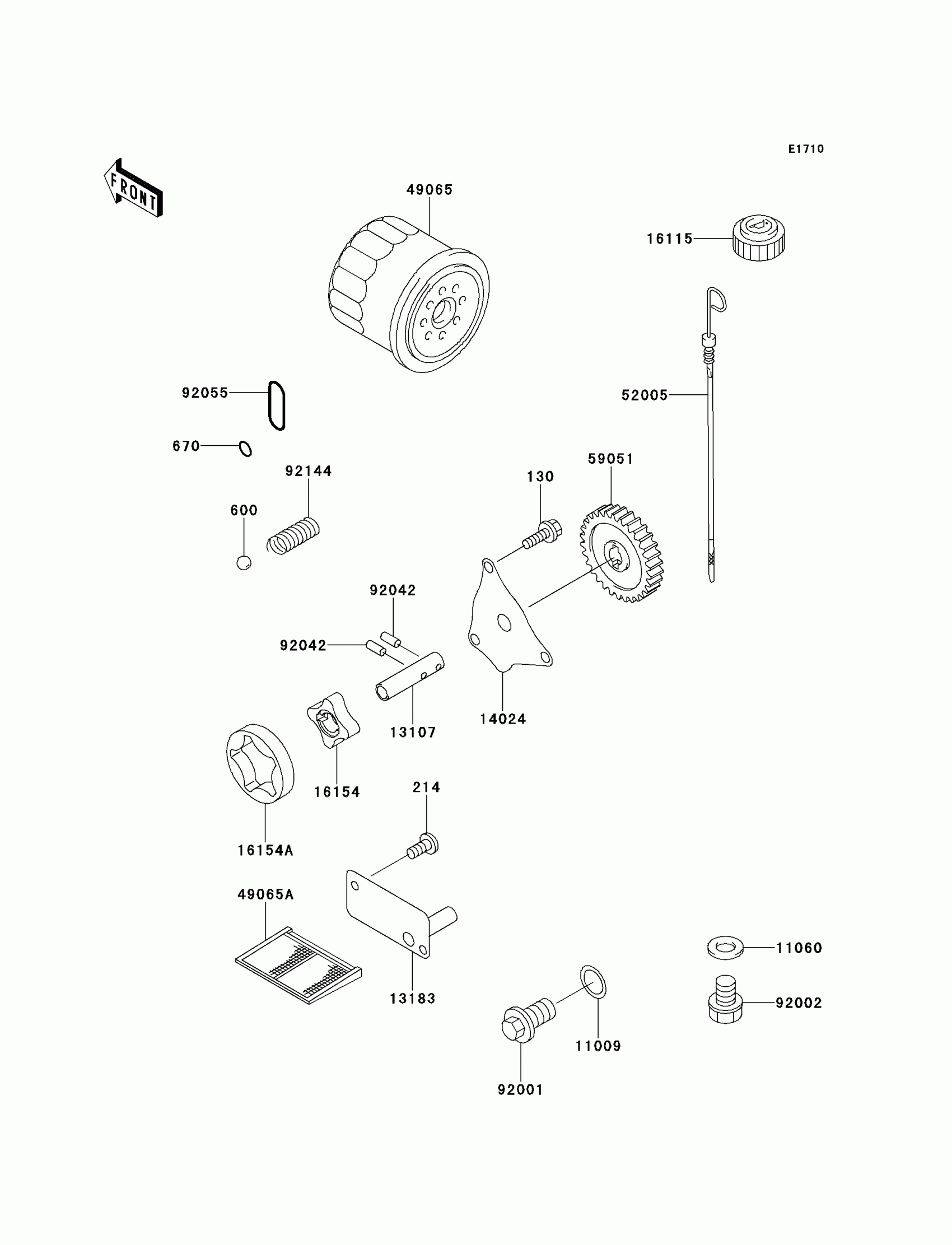

Kawasaki Mule 2520 Turf Oil Pump/Oil Filter Diagram

Description

Price

130

BOLT-FLANGED

130B0614

Unavailable

214

SCREW-PAN+-

214B0512

Unavailable

600

BALL-STEEL,13/32"

600A1300

$0.78

670

O RING,11MM

670B2011

$0.98

11009

GASKET,16.2X22X1

11009-1467

$2.68

11060

GASKET,14X20X2

11060-1287

$2.36

13107

SHAFT

13107-2099

Unavailable

13183

PLATE

13183-2419

$16.22

14024

COVER,OIL PUMP

14024-2113

$3.49

16115

CAP-OIL FILLER

16115-2090

$7.70

16154

ROTOR-PUMP,IN

16154-2053

$6.22

16154A

ROTOR-PUMP,OUT

16154-2054

$6.31

49065

FILTER-OIL

49065-2071

$10.96

49065A

FILTER-OIL

49065-2072

$4.64

52005

GAUGE

52005-2122

$25.36

59051

GEAR-SPUR

59051-2114

$4.78

92001

BOLT,FLANGED,16X11.5

92001-1114

Unavailable

92002

BOLT,14X10

92002-1513

$7.44

92042

PIN,DOWEL,4X15.8

92042-014

$0.46

92055

RING-O

92055-2086

$0.92

92144

SPRING

92144-2053

Unavailable
