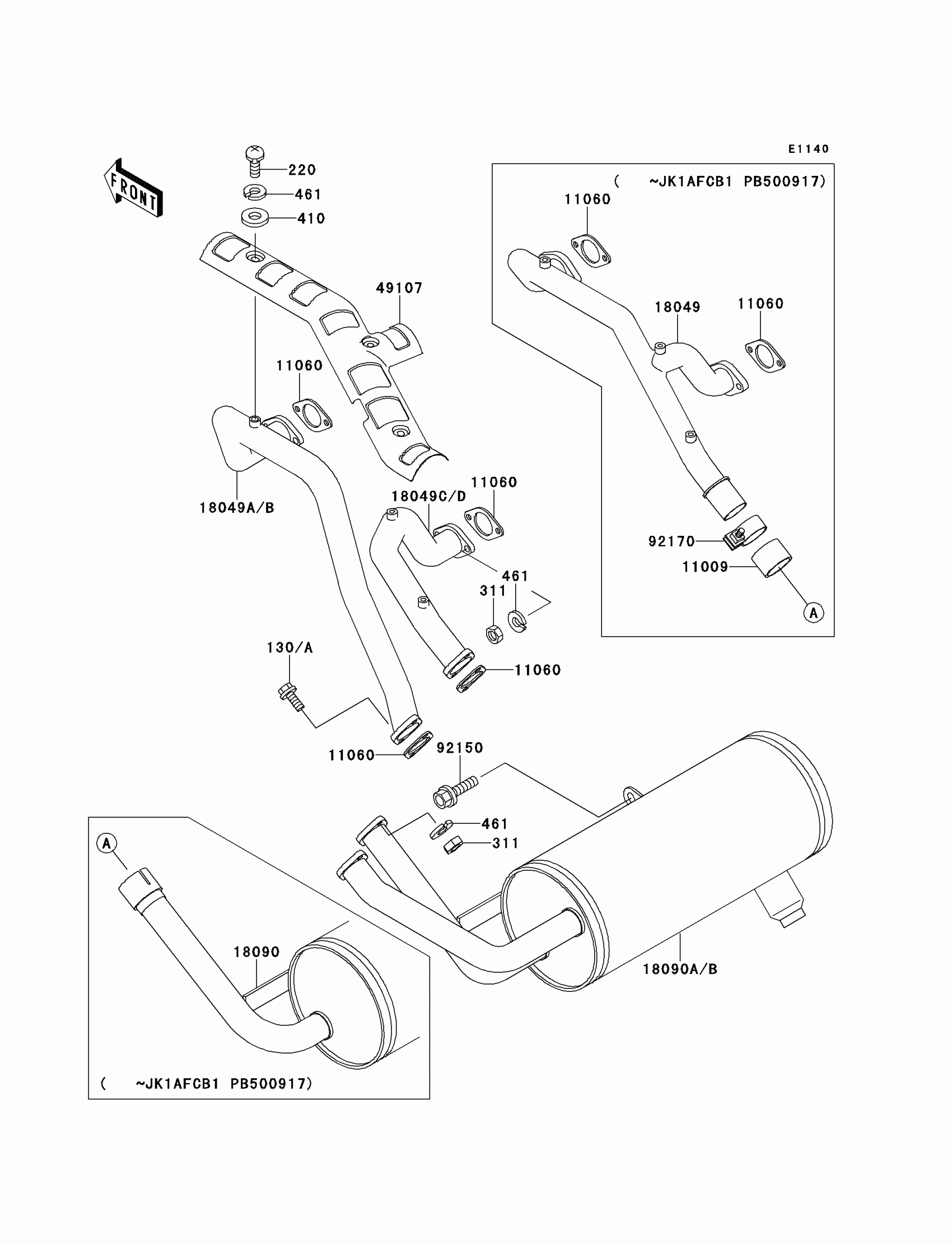

Kawasaki Mule 2520 Turf Muffler(s) Diagram

Description

Price

130A

BOLT,FLANGED,6X25

130G0625

Unavailable

220

SCREW-PAN-CROS,6X10,BLACK

220C0610

$1.33

311

NUT-HEX,6MM

311G0600

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

461

WASHER SPRING 6MM

461F0600

Unavailable

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1718

$22.08

11060

GASKET,EXHAUST PIPE

11060-2079

$3.58

18049

PIPE-EXHAUST

18049-1620

$284.05

18049B

PIPE-EXHAUST,FR

18049-1735

Unavailable

18049D

PIPE-EXHAUST,RR

18049-1736

$72.93

18090

BODY-COMP-MUFFLER

18090-1220

$257.65

18090B

BODY-COMP-MUFFLER

18090-1451

$186.54

49107

COVER-EXHAUST PIPE

49107-1089

$73.20

92150

BOLT

92150-1158

$4.15

92170

CLAMP,MUFFLER

92170-1454

$9.31
