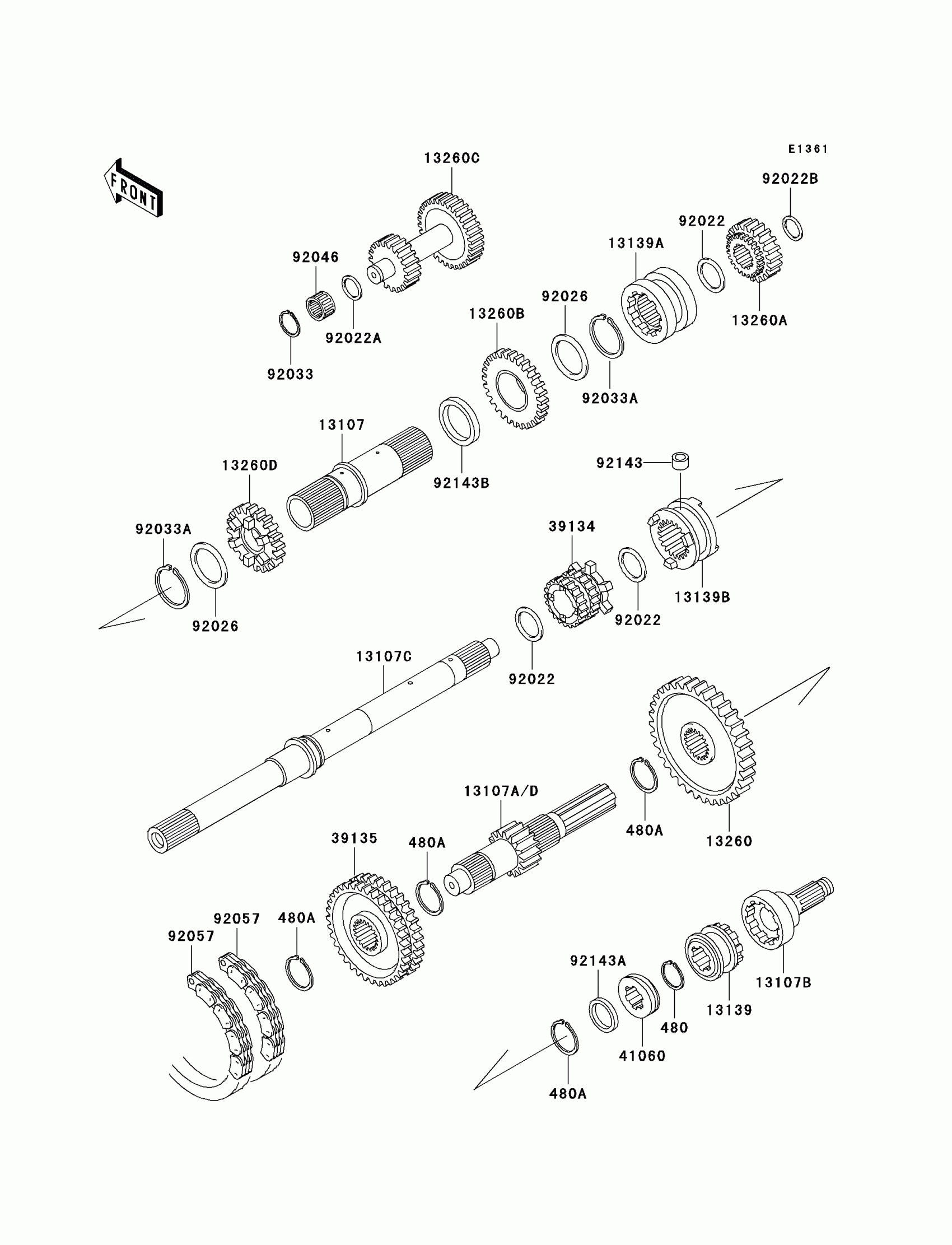

Kawasaki Mule 2510 Diesel Transmission Diagram

#

Description
Price

480

CIRCLIP-TYPE-C,25MM

480J2500

$1.47

480A

CIRCLIP-TYPE-C,30MM

480J3000

$4.67

13107

SHAFT,INPUT OUTER

13107-1309

$204.35

13107A

SHAFT,OUTPUT,15T

13107-1310

Unavailable

13107B

SHAFT,2WD/4WD

13107-1313

$214.36

13107C

SHAFT,INPUT

13107-1423

$468.03

13139

SHIFTER,2WD/4WD

13139-1068

$114.01

13139A

SHIFTER,SPEED,HI/LOW

13139-1069

$130.80

13139B

SHIFTER,FR/RR

13139-1072

$84.06

13260

GEAR,OUTPUT REVERSE,51T

13260-1288

$170.30

13260A

GEAR,INPUT REDUCTION,20T

13260-1289

$131.64

13260B

GEAR,INPUT REDUCTION,28T

13260-1290

$140.30

13260C

GEAR,REDUCTION,17T&25T

13260-1291

$248.54

13260D

GEAR,INPUT 28T

13260-1462

$131.64

39134

SPROCKET-DRIVE,20T

39134-1055

$115.78

39135

SPROCKET-DRIVEN,41T

39135-1055

$145.89

41060

GEAR-METER SCREW

41060-1147

$38.53

92022

WASHER,25.3X33X1

92022-1109

$4.50

92022A

WASHER,17.3X28X1

92022-255

$6.55

92022B

WASHER,17.3X30X1.4

92022-270

$7.50

92026

SPACER,35.3X44X0.5

92026-1375

$7.24

92033

RING-SNAP

92033-032

$3.78

92033A

RING-SNAP

92033-1269

$7.81

92046

BEARING-NEEDLE

92046-1184

$17.18

92057

CHAIN,REVERSE,81RH2520,54L

92057-1364

$39.97

92143

COLLAR,8X14X10.5

92143-1497

$3.19

92143A

COLLAR,25X32X4.5

92143-1597

$12.78

92143B

COLLAR

92143-1599

$20.81
